1.05 MPa Proof Pressure Piston Pneumatic Cylinder CY3B40 - 100/200/300/400/../2000

Product Description:

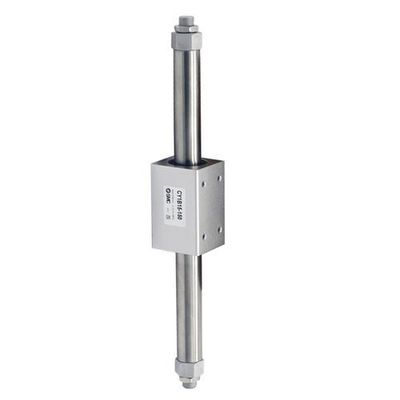

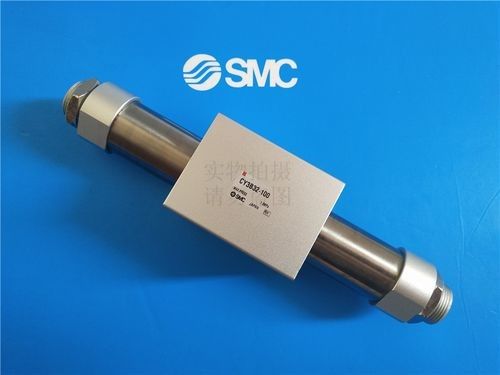

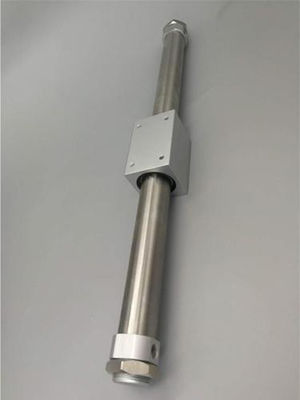

The CY3B magnetic coupling rodless cylinder has the following basic parameters:

• Cylinder diameter: 25mm, 32mm, etc.
• Journey: 1693mm, 300mm, etc.
• Action mode: double acting
• Fluid used: air
• Buffer form: rubber buffer
• Pipe connection diameter: 1/8 inch
• Installation methods: horizontal installation, inclined installation, vertical installation
• Minimum operating pressure: 0.15MPa
• Maximum operating pressure: 0.7MPa
• Guaranteed pressure resistance: 1.05MPa
• Environmental temperature: -10 ℃~60 ℃
• Using piston speed: 50-500mm/s

The CY3B magnetic coupling rodless cylinder has the following performance characteristics:

• Direct load installation: able to directly install loads with high holding force.
• Light weight and simple structure: The main body is made of all aluminum alloy, and imported seals are used for strong reliability.
• Excellent sealing performance: The piston chamber is separated from the slider to prevent dust and dirt from entering the system, extending its service life.
• Smooth operation: The cylinder is equipped with buffering devices at both ends, ensuring smooth and impact-free reversing action, avoiding mechanical damage.
• Space saving: takes up less space than regular cylinders, and has a larger stroke than regular cylinders.
• Built-in magnetic ring: can install a magnetic switch, allowing for smooth sliding.

Technical Parameters:

Applications:

The SMC Piston Pneumatic Cylinder is a non-lube lubrication cylinder that can operate in an ambient and fluid temperature of -10 to 60°C and is able to withstand a proof pressure of 1.05 MPa. The fluid used in this cylinder is air and has a piston speed of 50 to 400 mm/s. This product is perfect for a range of industrial applications and scenarios.

The Magnetically Coupled Rodless Cylinder CY3B Series is an excellent option for applications that require precise movement and control. These cylinders offer a long stroke and are designed to provide smooth and reliable operation. They are ideal for use in a variety of industries such as automotive, food and beverage, and packaging.

The Rodless Cylinder MY3B Mechanically Jointed Standard Bores are perfect for applications that require high performance and reliability. These cylinders are designed to withstand heavy loads and offer a high degree of precision. They are suitable for use in a range of industries such as steel manufacturing, automotive, and aerospace.

The CY3B long stroke rodless cylinder is an ideal product for applications that require a long stroke and high precision. These cylinders offer a smooth and reliable operation and are perfect for use in industries such as packaging, automotive, and food and beverage.
