Product Description:

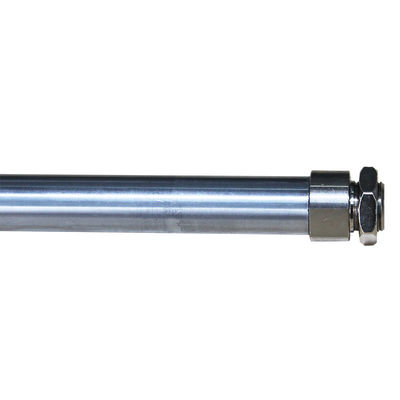

The Main Properties of CY3B Magnetic Coupling Rodless Cylinder
The CY3B magnetic coupling rodless cylinder offers a range of properties that make it stand out from other cylinders. Some of the main features include:
Basic Parameters:
The CY3B cylinder comes with several basic parameters that enable it to operate effectively.
- Cylinder diameter: 25mm, 32mm, etc.
- Journey: 1693mm, 300mm, etc.
- Action mode: double acting.
- Fluid used: air.
- Buffer form: rubber buffer.
- Pipe connection diameter: 1/8 inch.
- Installation methods: horizontal installation, inclined installation, vertical installation.
- Minimum operating pressure: 0.15MPa.
- Maximum operating pressure: 0.7MPa.
- Guaranteed pressure resistance: 1.05MPa.
- Environmental temperature: -10 ℃~60 ℃.
- Using piston speed: 50-500mm/s.
Performance Characteristics:
The CY3B cylinder is also designed to deliver superior performance to meet your needs.
- Direct load installation: able to directly install loads with high holding force.
- Lightweight and simple structure: The main body is made of all-aluminum alloy, and imported seals are used for strong reliability.
- Excellent sealing performance: The piston chamber is separated from the slider to prevent dust and dirt from entering the system, extending its service life.
- Smooth operation: The cylinder is equipped with buffering devices at both ends, ensuring smooth and impact-free reversing action, avoiding mechanical damage.
- Space saving: takes up less space than regular cylinders, and has a larger stroke than regular cylinders.
- Built-in magnetic ring: can install magnetic switch, smooth sliding.
Technical Parameters:
| Product Attribute |
Technical Parameter |
| Cylinder Series |
CY3B rodless cylinder |
| Cylinder Type |
Rodless Cylinder MY3B Mechanically Jointed Standard Bores |
| Ambient and Fluid Temperature |
-10 to 60°C |
| Lubrication |
Non-lube |
| Piston Speed |
50 to 400 mm/s |
| Proof Pressure |
1.05 MPa |
| Fluid |
Air |
| Operating Pressure |
0.18-0.7 MPa |
| Weight |
|
Applications:
The Piston Pneumatic Cylinder is suitable for various product application occasions and scenarios. The Rodless Cylinder MY3B Mechanically Jointed Standard Bores is used in various industrial applications where space is limited, and a traditional cylinder cannot fit. The Piston Pneumatic Cylinder is designed to be compact and efficient, with a proof pressure of 1.05 MPa and an operating pressure of 0.18-0.7MPA. The CY3B rodless cylinder pneumatic magnetic coupling type is used in applications where the cylinder needs to be mounted in a specific location and kept at a distance from the equipment.
With a piston speed of 50 to 400 mm/s, the Piston Pneumatic Cylinder is ideal for applications where speed is critical. The non-lube lubrication ensures that the cylinder operates smoothly and efficiently, reducing maintenance costs. The ambient and fluid temperature range of –10 to 60°C makes it suitable for use in various environments.
The Piston Pneumatic Cylinder is a versatile and reliable product that can be used in various industries, including automotive, food and beverage, packaging, and many others. It is a cost-effective solution that can help improve productivity and reduce downtime. If you are looking for a high-quality Piston Pneumatic Cylinder, SMC is the brand to trust.
Packing and Shipping:
Product Packaging:
- Individual packaging in a sturdy cardboard box
- Protective foam padding to prevent damage during transit
- Product specifications and user manual included
Shipping:
- Ships within 1-2 business days
- Free standard shipping within the United States
- International shipping available for an additional fee
- Tracking information provided once item has shipped
