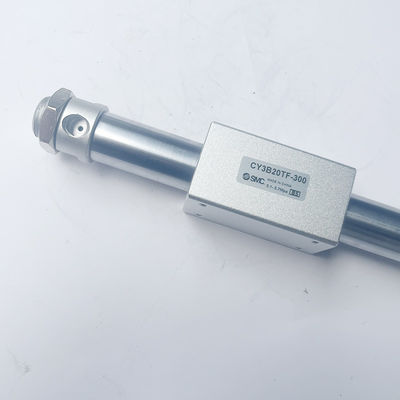

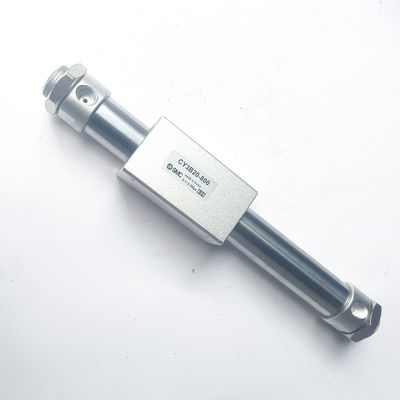

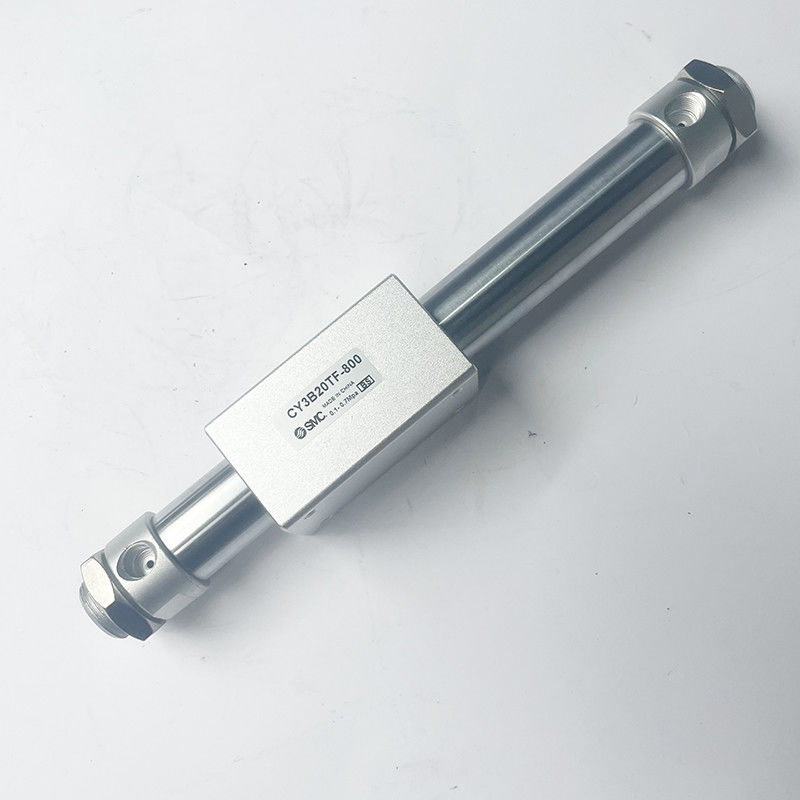

CY3B25 - 100/200/300/400/../2000 Magnetically Coupled Rodless Pneumatic Cylinder

Product Description:

The CY3B magnetic coupling rodless cylinder has the following basic parameters:

• Cylinder diameter: 25mm, 32mm, etc.
• Journey: 1693mm, 300mm, etc.
• Action mode: double acting.
• Fluid used: Air.
• Buffer form: Rubber buffer.
• Pipe connection diameter: 1/8 inch.
• Installation methods: horizontal installation, inclined installation, vertical installation.
• Minimum operating pressure: 0.15MPa.
• Maximum operating pressure: 0.7MPa.
• Guaranteed pressure resistance: 1.05MPa.
• Environmental temperature: -10 ℃~60 ℃.
• Using piston speed: 50-500mm/s.

The CY3B magnetic coupling rodless cylinder has the following performance characteristics:

• Direct load installation: able to directly install loads with high holding force.
• Light weight and simple structure: The main body is made of all aluminum alloy, and imported seals are used for strong reliability.
• Excellent sealing performance: The piston chamber is separated from the slider to prevent dust and dirt from entering the system, extending its service life.
• Smooth operation: The cylinder is equipped with buffering devices at both ends, ensuring smooth and impact-free reversing action, avoiding mechanical damage.
• Space saving: takes up less space than regular cylinders, and has a larger stroke than regular cylinders.
• Built-in magnetic ring: can install magnetic switch, smooth sliding.

Technical Parameters:

Applications:

The SMC Piston Pneumatic Cylinder is a high-quality product made in China that comes with a CE certification. It is suitable for a wide range of applications and scenarios due to its versatile design and performance characteristics. The product is available for purchase in minimum quantities of 1 unit and the price is negotiable, making it a cost-effective choice for businesses of all sizes.

The product belongs to Series CY3B and is a rodless cylinder pneumatic magnetic coupling type. It operates at a pressure range of 0.18-0.7MPA and does not require lubrication, making it a low-maintenance option. The product can function in temperatures ranging from –10 to 60°C and has a proof pressure of 1.05 MPa. It has a piston speed of 50 to 400 mm/s and is available with a weight ranging from 0.1 to 8.1 kg.

The SMC Piston Pneumatic Cylinder is suitable for a variety of applications, including but not limited to:

• Automation equipment
• Conveyors
• Packaging machinery
• Textile machinery
• Printing machinery
• Food processing machinery

The product is also suitable for scenarios where space is limited, as it is a rodless cylinder. Additionally, the magnetic coupling type design ensures efficient and reliable operation. The product is available for supply in quantities of up to 5000 pieces per month and can be delivered within 1-7 work days after payment. The payment terms accepted include T/T, Western Union, and Paypal. The product is packaged in cartons or as per the client's requirement, ensuring safe and secure transit.

Packing and Shipping:

Product Packaging:

• The piston pneumatic cylinder will be securely packaged in a sturdy cardboard box
• The cylinder will be wrapped in protective bubble wrap to prevent any damage during transit
• All necessary installation accessories will be included in the packaging

Shipping:

• The product will be shipped via a reputable courier service
• Orders will be shipped within 1-2 business days from the date of purchase
• Customers will receive a tracking number to monitor the status of their shipment
• Delivery times may vary depending on the destination and shipping method chosen
• International customers are responsible for any customs duties or taxes that may apply
