Product Description:

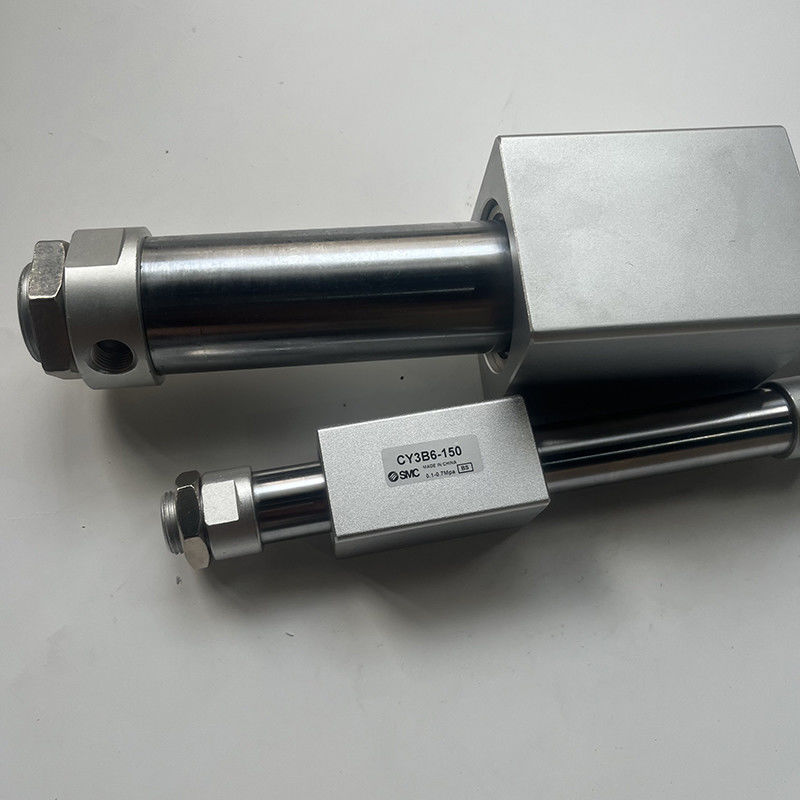

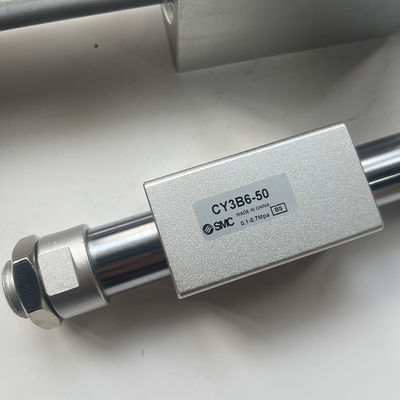

The main properties of CY3B magnetic coupling rodless cylinder
Basic parameters:
The CY3B magnetic coupling rodless cylinder has various basic parameters, including cylinder diameter (e.g. 25mm, 32mm), journey (e.g. 1693mm, 300mm), action mode (double acting), fluid used (air), buffer form (rubber buffer), pipe connection diameter (1/8 inch), installation methods (horizontal, inclined, vertical), minimum operating pressure (0.15MPa), maximum operating pressure (0.7MPa), guaranteed pressure resistance (1.05MPa), and environmental temperature (-10 ℃~60 ℃).
Using piston speed:
The piston speed of the CY3B magnetic coupling rodless cylinder ranges from 50-500mm/s.
Performance characteristics:
The CY3B magnetic coupling rodless cylinder has various notable performance characteristics, which include:
- Direct load installation: The CY3B magnetic coupling rodless cylinder can install loads with high holding force directly.
- Light weight and simple structure: This cylinder has a main body that's made of all aluminum alloy, with imported seals for strong reliability.
- Excellent sealing performance: The piston chamber is separated from the slider to prevent dust and dirt from entering, which in turn extends its service life.
- Smooth operation: The CY3B magnetic coupling rodless cylinder is equipped with buffering devices at both ends to ensure smooth and impact-free reversing action, which prevents mechanical damage.
- Space saving: This cylinder takes up less space than regular cylinders, despite having a larger stroke.
- Built-in magnetic ring: The CY3B magnetic coupling rodless cylinder has a built-in magnetic ring that allows for magnetic switch installation, ensuring smooth sliding.
Technical Parameters:
| Product Attribute |
Value |
| Product Name |
SMC CY3B Rodless Cylinder, Magnetically Coupled Rodless Cylinder CY3B Series |
| Proof Pressure |
1.05 MPa |
| Lubrication |
Non-lube |
| Ambient and Fluid Temperature |
-10 to 60°C |
| Operating Pressure |
0.18-0.7 MPa |
| Fluid |
Air |
| Piston Speed |
50 to 400 mm/s |
Applications:
This Piston Pneumatic Cylinder is designed to work with fluid air and has a piston speed of 50 to 400 mm/s. It operates at a pressure of 0.18-0.7MPA and has a proof pressure of 1.05 MPa. The cylinder is non-lube, meaning it is more cost-effective and requires less maintenance.
Product Application Occasions
The CY3B long stroke rodless cylinder is perfect for occasions where space is limited, such as in small factories or laboratories. Its compact design allows for easy installation and maintenance, making it a highly efficient product. Additionally, the CY3B rodless cylinder pneumatic magnetic coupling type is ideal for situations where precision and accuracy are crucial, such as in the manufacturing of electronic components. Its magnetic coupling technology ensures that the cylinder moves smoothly and accurately, reducing the risk of errors or damage.
Product Scenarios
The Rodless Cylinder MY3B Mechanically Jointed Standard Bores is ideal for a variety of scenarios. It can be used in applications such as conveyor systems, packaging machines, and material handling systems. The MY3B's mechanically jointed standard bores make it easy to connect to other components, allowing for a seamless integration into existing systems. Its ability to operate at high speeds and pressures makes it perfect for heavy-duty applications, such as in the mining and construction industries.
Packing and Shipping:
Product Packaging:
- The piston pneumatic cylinder will be securely placed in a box with proper cushioning to prevent any damage during transit.
- The box will be labeled with the product name, quantity, and any handling instructions.
Shipping:
- The product will be shipped via a reliable courier service.
- Shipping time may vary depending on the destination.
- Tracking information will be provided to the customer once the product has been shipped.
