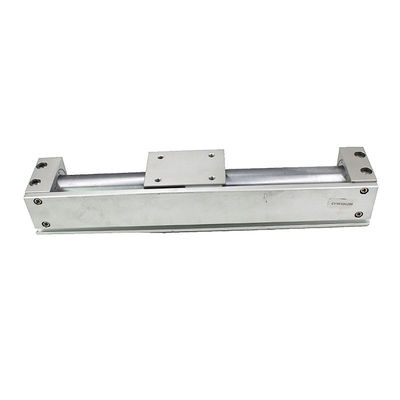

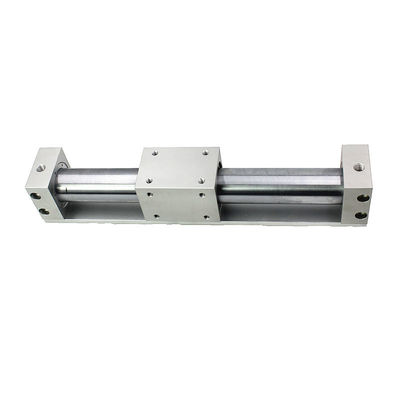

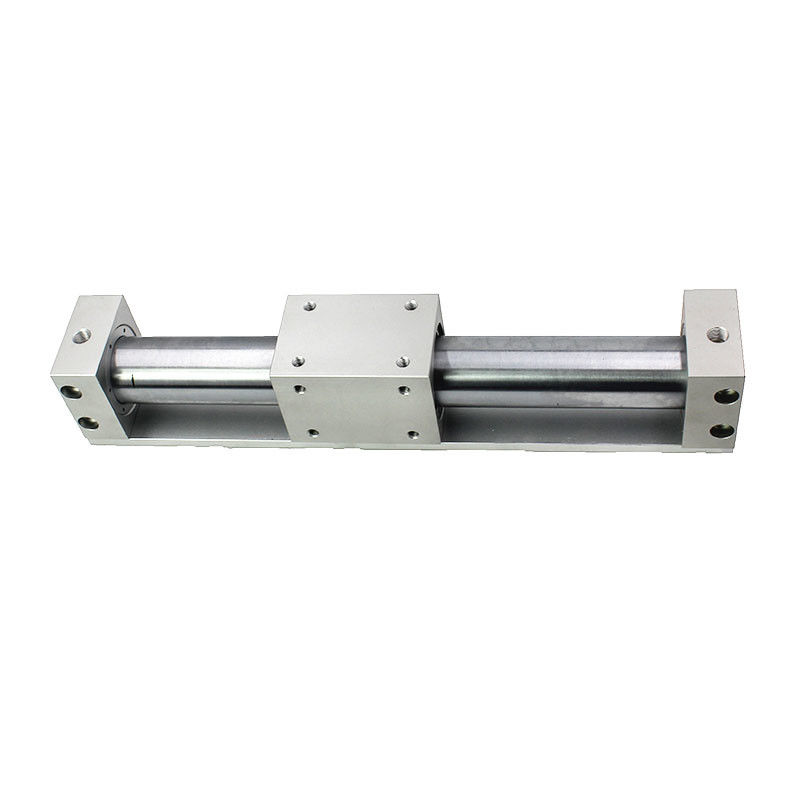

SMC Customizable Piston Pneumatic Cylinder CY1R6- 100/200/300/400/500

Product Description:

The SMC CY1R cylinder is a highly efficient and reliable component that plays an important role in numerous mechanical operations. The cylinder belongs to the reputable SMC brand and is identified by its model name CY1R. Its main attributes are detailed below.

Brand and model: The SMC CY1R cylinder is a product of the SMC brand and the model is CY1R.

Cylinder diameter: The CY1R cylinder has a cylinder diameter range of 10-63mm, making it suitable for a wide range of applications.

Theoretical force: The theoretical force provided by the CY1R cylinder is approximately 200N.

Maximum load: The maximum load that can be handled by the CY1R cylinder is 2500N. This indicates the cylinder's exceptional strength and durability.

Maximum force distance: The maximum force distance offered by the CY1R cylinder is 3000Nm, allowing for efficient and effective mechanical processes.

Weight: The weight of the CY1R cylinder is 1kg, making it a lightweight yet powerful tool.

Number of cylinders: The CY1R cylinder includes 8 cylinders, making it a versatile component for numerous mechanical applications.

In addition to the above attributes, the SMC CY1R cylinder also includes several other features that enhance its functionality. These include:

• Built-in magnetic circulation ring: This cylinder is equipped with a magnetic circulation ring, which can be operated in conjunction with a magnetic switch to enable precise control of the cylinder's operation.
• Non-rotating slide table design: The CY1R cylinder is designed as a non-rotating slide table to ensure stability and accuracy during mechanical processes.
• Central tracheal connection method: The cylinder can be easily connected using the single-sided central tracheal connection method, which is a versatile option that can accommodate diverse installation needs.

Technical Parameters:

Applications:

The SMC CY1R series rodless cylinder is perfect for applications that require a high piston speed of 50-500mm/s. Its fluid, air, makes it ideal for use in a wide range of industries, including automotive, food and beverage, and packaging. With a custom-made specification of 0.16 to 0.7, it can be tailored to meet the specific needs of any application.

The SMC magnetic coupling rodless cylinder is a variant of the CY1R series that is designed for use in applications where a conventional piston rod would be unsuitable. With a magnetic coupling, this cylinder eliminates the need for a piston rod, making it ideal for use in environments where cleanliness and hygiene are a priority.

The SMC CY1R series rodless cylinder can be used in a variety of scenarios, including conveyor systems, packaging machines, and material handling systems. Its temperature range of -10—60℃ makes it suitable for use in both hot and cold environments, and its high supply ability of 5000 pieces per month ensures that businesses can get the product they need when they need it.

When it comes to packaging, the SMC CY1R series rodless cylinder is a great choice. It can be packaged in cartons or tailored to meet the specific requirements of the client. With a delivery time of 1-7 work days after payment, businesses can get their products quickly and efficiently. Payment can be made via T/T, Western Union, or Paypal, making it a convenient choice for businesses around the world.

Packing and Shipping:

Product Packaging:

• Each piston pneumatic cylinder will be carefully wrapped and packed in a sturdy cardboard box to ensure safe transportation.
• The box will be labeled with the product name, specifications, and quantity to make it easy to identify.

Shipping:

• We offer free shipping within the US for orders of 10 or more cylinders.
• For orders of less than 10 cylinders, shipping costs will be calculated based on the destination and shipping method selected.
• We use reliable shipping carriers such as FedEx, UPS, and USPS to ensure timely delivery.
• You will receive a tracking number via email once your order has shipped.
