Product Description:

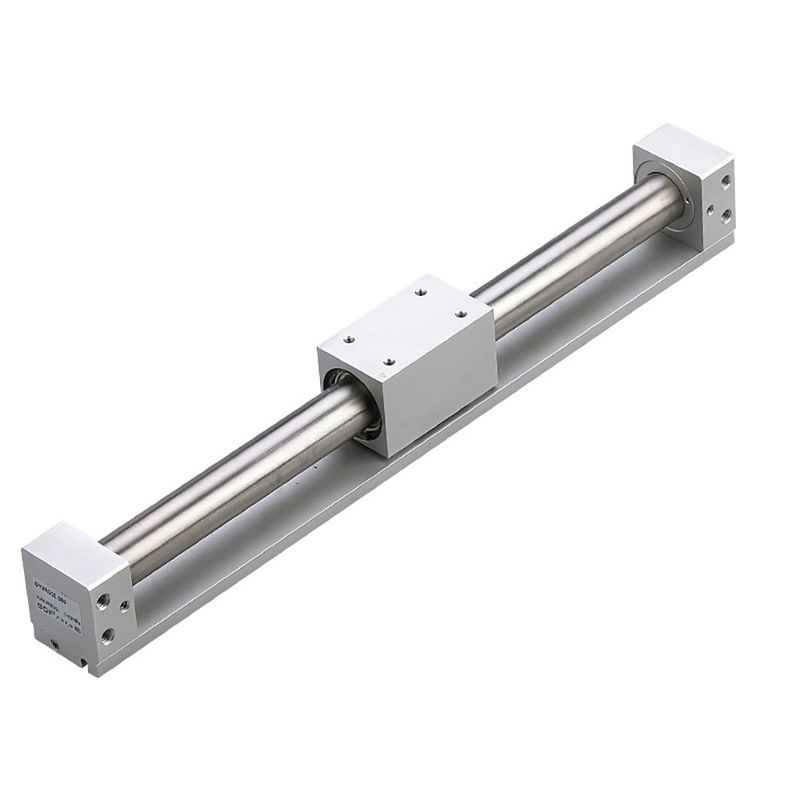

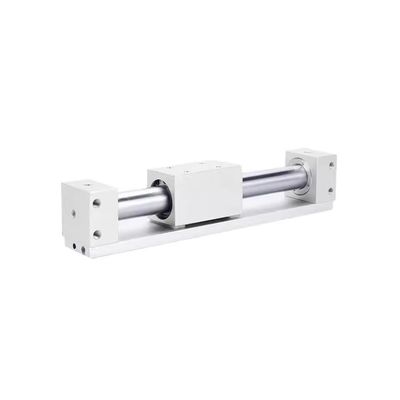

The SMC CY3R Series Cylinder
The SMC CY3R series cylinder is a magnetic coupling rodless cylinder produced by SMC Corporation in Japan, mainly divided into the CY3B series and CY3R series. The following are the specific properties of CY3R series cylinders:
Cylinder Diameter and Stroke
The CY3R series cylinder has a cylinder diameter range of 15mm to 40mm and a stroke range of 50mm to 2000mm. For example, the cylinder diameter of CY3R25-700 is 25mm and the stroke is 700mm.
Action Mode and Pressure Range
The CY3R series cylinder adopts a double acting design, suitable for air as the working medium. Its operating pressure range is 0.16MPa to 0.8MPa, and the specific pressure value may vary depending on the model.
Temperature Range
The working temperature range of the cylinder is -10 ℃ to 60 ℃, suitable for general industrial environments.
Installation and Compatibility
The installation dimensions of the CY3R series cylinder are the same as the previous CY1 series, but the bearing performance is improved and the sliding resistance is reduced. In addition, this series of cylinders uses special dust seals to reduce the operating pressure.
Other Features
The CY3R series cylinder has high wear resistance and uses a special resin wear-resistant ring, which improves lubrication performance and durability. In addition, this series of cylinders does not require lubrication, simplifying maintenance work.
Technical Parameters:
| Technical Parameter |
Value |
| Product Name |
SMC CY3R Series Rodless Cylinder with Magnetic Coupling |
| Piston Speed |
50-500mm/s |
| Proof Pressure |
1.05MPA |
| Fluid |
Air |
| Temperature Range |
-10—60℃ |
| Brand |
SMC |
| Custom-made Specifications |
0.16 To 0.7 |
Applications:
The SMC Piston Pneumatic Cylinder is ideal for use in magnetic coupling rodless cylinder applications. It belongs to the CY3R series, which is known for its high quality and durability. Its proof pressure is 1.05MPA, making it reliable and efficient. The piston speed ranges from 50-500mm/s, which is perfect for various industrial operations.
This product is branded SMC, which is a renowned brand in the manufacturing industry. It has a temperature range of -10—60℃, making it suitable for use in different environments. Its custom-made specifications range from 0.16 to 0.7, providing versatility in its applications.
Packing and Shipping:
Product Packaging:
- The Piston Pneumatic Cylinder will be securely packaged in a cardboard box.
- The cylinder will be wrapped in bubble wrap or foam to protect it during shipping.
- The packaging will also include any necessary mounting hardware and instructions.
Shipping:
- Shipping will be handled by our trusted shipping partners.
- We offer both domestic and international shipping options.
- Shipping rates will be calculated based on the destination and weight of the package.
- Customers will receive a tracking number once the package has been shipped.
- Delivery times will vary depending on the destination and shipping method selected.
