Product Description:

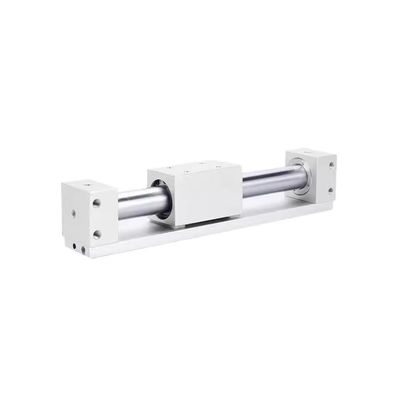

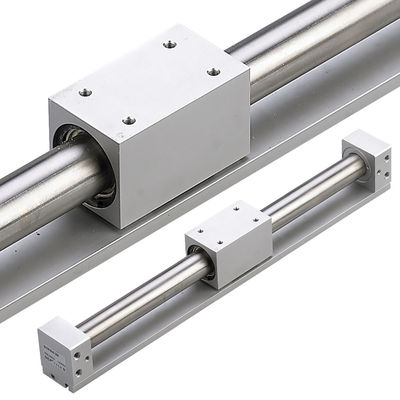

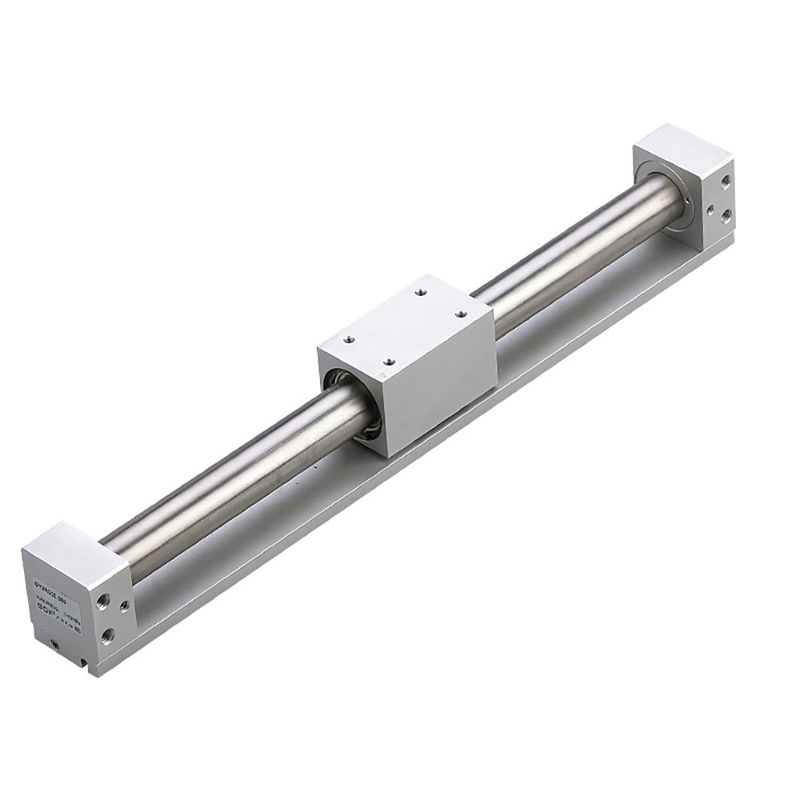

The SMC CY3R Series Cylinder
The SMC CY3R series cylinder is a highly efficient rodless cylinder designed and manufactured in Japan by SMC Corporation. This flagship series is primarily divided into the CY3B and CY3R series, with the latter being the focus of this discussion. Here are some of the unique features that make CY3R series cylinders stand out:
Cylinder Diameter and Stroke
The CY3R series encompasses cylinder diameters ranging from 15mm to 40mm and stroke ranges of 50mm to 2000mm. For instance, a CY3R25-700 cylinder would have a cylinder diameter of 25mm and a 700mm stroke.
Action Mode and Pressure Range
The CY3R series cylinder design adopts a double-acting configuration that distinguishes it from other products in the market. It is optimized to use air as the working medium, with an operational pressure range of 0.16MPa to 0.8MPa. However, specific pressure values may vary depending on the model.
Temperature Range
The CY3R series cylinder is designed to operate within a temperature range of -10 ℃ to 60 ℃, making it perfect for use in general industrial environments.
Installation and Compatibility
The CY3R series cylinder boasts of improved bearing performance coupled with reduced sliding resistance. The CY3R series has similar installation dimensions to previous CY1 series. The series also features special dust seals optimized to reduce operating pressure.
Other Features
The CY3R series cylinder features a high wear resistance mechanism that utilizes a special resin wear-resistant ring. Such technology improves lubrication performance and enhances durability. The cylinder does not require lubrication, reducing maintenance work requirements.
Technical Parameters:
| Brand |
SMC |
| Product |
SMC CY3R series rodless cylinder |
| Fluid |
Air |
| Temperature Range |
-10—60℃ |
| Proof Pressure |
1.05MPA |
| Custom-made Specifications |
0.16 To 0.7 |
| Piston Speed |
50-500mm/s |
| Type |
magnetic coupling rodless cylinder |
Applications:
The SMC cylinder is suitable for use in various industries, including the automotive industry, chemical industry, food industry, and pharmaceutical industry, among others. It can be used in machines that require linear motion, including conveyors, presses, and packaging machines. It is also used in machines that require clamping, lifting, and pushing. The SMC cylinder can be used in harsh environments, and it has a temperature range of -10—60℃.
The product is designed to use air as the fluid. It has a piston speed of 50-500mm/s, and a proof pressure of 1.05MPA. The SMC cylinder is an important component in many machines and equipment. It is used in machines that require high precision and accuracy. The product is also used in applications that require high speed and force.
The SMC cylinder CY3R series is a versatile product that is suitable for various applications and scenarios. It is a reliable product that is manufactured with high-quality materials. The product is also customizable to meet specific requirements. It is a product that provides value and performance to customers.
Packing and Shipping:
Product Packaging:
- The piston pneumatic cylinder will be securely packaged in a sturdy box to prevent damage during shipment.
- The box will be labeled with the product name, quantity, and any other relevant information.
- Inside the box, the cylinder will be wrapped in protective material to ensure it does not shift during transit.
Shipping:
- The cylinder will be shipped via a reputable carrier to ensure timely and safe delivery.
- Customers will receive a tracking number once the item has shipped.
- Shipping fees will be calculated based on the destination and weight of the package.
