CY3R25- 100/200/300/400/.../2000 CY3R Series for Industrial Applications

Product Description:

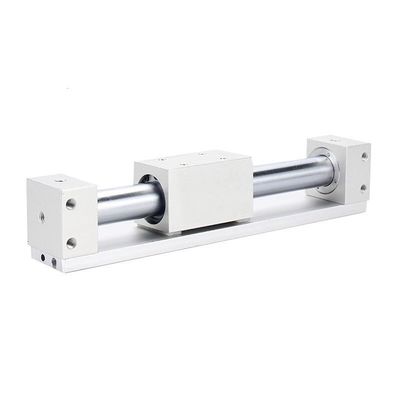

The SMC CY3R series cylinder is a magnetic coupling rodless cylinder produced by SMC Corporation in Japan. This series is mainly divided into the CY3B series and CY3R series. In this article, we will discuss the specific properties of CY3R series cylinders.

The CY3R series cylinder has a cylinder diameter range of 15mm to 40mm and a stroke range of 50mm to 2000mm. For example, the cylinder diameter of CY3R25-700 is 25mm and the stroke is 700mm.

The CY3R series cylinder adopts a double acting design, suitable for air as the working medium. Its operating pressure range is 0.16MPa to 0.8MPa, and the specific pressure value may vary depending on the model.

The working temperature range of the cylinder is -10 ℃ to 60 ℃, suitable for general industrial environments.

The installation dimensions of the CY3R series cylinder are the same as the previous CY1 series. However, the bearing performance is improved and the sliding resistance is reduced. In addition, this series of cylinders uses special dust seals to reduce the operating pressure.

The CY3R series cylinder has high wear resistance and uses a special resin wear-resistant ring, which improves lubrication performance and durability. Additionally, this series of cylinders does not require lubrication, simplifying maintenance work.

Technical Parameters:

Applications:

Looking for a reliable and high-quality piston pneumatic cylinder that can be used in a variety of applications? Look no further than the SMC piston pneumatic cylinder, which is made in China and certified with CE for quality and safety.

With a minimum order quantity of just one and a negotiable price, this piston pneumatic cylinder is an affordable and effective solution for your needs. It comes packaged in a carton, but can be customized to meet the packaging requirements of your specific application.

Thanks to its direct installation type, the SMC piston pneumatic cylinder is easy to install and use. It is also a magnetic coupling rodless cylinder, meaning that it operates without a coupling rod and is therefore more compact and efficient than other types of cylinders.

This cylinder is designed to operate in a temperature range of -10—60℃, and has a piston speed of 50-500mm/s. Additionally, it can be custom-made to specifications ranging from 0.16 to 0.7, making it a versatile and adaptable solution for a variety of applications.

With a proof pressure of 1.05MPA, the SMC piston pneumatic cylinder is built to withstand even the toughest conditions and applications. And with a supply ability of 5000 pieces per month, you can be sure that you'll always have access to the cylinders you need, when you need them.

So whether you're looking for a reliable and efficient cylinder for use in manufacturing, automation, or any other application, the SMC magnetic coupling rodless cylinder is the perfect choice. Order yours today and experience the difference for yourself!

Delivery time is typically 1-7 work days after payment, and payment terms include T/T, Western Union, and Paypal. Contact us today to learn more about this high-quality piston pneumatic cylinder and how it can benefit your business.

Packing and Shipping:

Product Packaging:

The piston pneumatic cylinder will be packed securely in a sturdy cardboard box to prevent any damage during transit. The cylinder will be wrapped in bubble wrap or foam for extra protection. The box will also include any necessary installation instructions and product information.

Shipping:

The cylinder will be shipped through a reliable courier service within 1-2 business days of the order being placed. The estimated delivery time will depend on the destination, but typically takes 3-5 business days for domestic orders and 7-10 business days for international orders. Tracking information will be provided to the customer via email once the order has been shipped.
