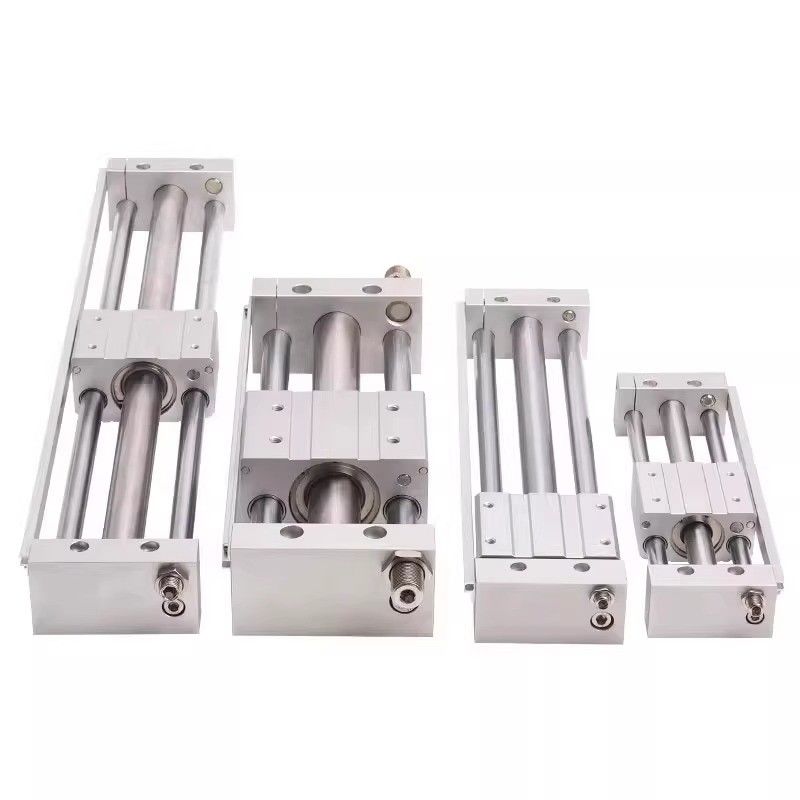

CY1S20-100/200/300/.../800/.../1500(Z) CY1S Series for Precision Applications

Product Description:

The CY1S magnetic coupling rodless cylinder operates within a maximum pressure of 0.7 MPa and a minimum pressure of 0.18 MPa, ensuring reliable performance in various industrial applications.

This product operates in an environment and fluid temperature range of -10 to 60 °C, making it suitable for use in various environments, including extreme temperature environments.

The piston speed ranges from 50 to 400 millimeters per second, and this rodless pneumatic cylinder provides fast and smooth motion, making it ideal for applications that require high-speed operation.

The action of the rodless cylinder piston is transmitted to the external slider through magnetic coupling force, without the need for a piston rod, and the installation space is less than that of a regular cylinder.

The piston is separated from the slide table to prevent dust and dirt from entering the system, extending the service life of the rodless cylinder.

The rodless cylinder is equipped with fixed buffer devices at both ends, ensuring smooth and impact-free reversing action while avoiding mechanical damage.

Theoretical force is 500N, maximum load is 2000N, maximum force distance is 10Nm.

These properties make the CY1S magnetically coupled rodless cylinder suitable for various industrial applications, especially in scenarios that require high-speed, smooth motion and work in extreme temperature environments.

Technical Parameters:

Applications:

The SMC Piston Pneumatic Cylinder is a versatile product that can be used in a variety of applications and scenarios. This product is customizable, meaning that it can be tailored to meet the specific needs of each customer. The product is manufactured in China and is CE certified. The minimum order quantity is one, and the price is negotiable. The packaging details include cartons or as per the clients' requirements. The delivery time is 1-7 workdays after payment, and the payment terms are T/T, Western Union, and Paypal. The product has a supply ability of 5000 pieces per month.

The SMC Piston Pneumatic Cylinder is ideal for use in various industries, including automotive, food and beverage, medical, and manufacturing. It is specifically designed to handle a wide range of tasks, making it a must-have for any industrial setting. The product is commonly used in automation equipment, packaging machinery, and production lines.

The CY1S magnetic coupling rodless cylinder is a variation of the SMC Piston Pneumatic Cylinder, which is designed to be used in applications where space is limited. The CY1S magnetic coupling rodless cylinder is also customizable and has a proof pressure of 1.05MPA, a temperature range of -10—60℃, and a piston speed of 50-500mm/s. The fluid used in the product is air.

Some of the specific applications and scenarios where the SMC Piston Pneumatic Cylinder and CY1S magnetic coupling rodless cylinder can be used include:

• Conveyor systems
• Packaging machinery
• Printing machinery
• Food processing equipment
• Automated assembly lines
• Medical devices

Overall, the SMC Piston Pneumatic Cylinder and CY1S magnetic coupling rodless cylinder are versatile, customizable, and reliable products that can be used in a wide range of applications and scenarios. Their durable design and high-quality construction make them ideal for use in industrial settings where performance and reliability are critical.

Packing and Shipping:

Product Packaging:

• Each piston pneumatic cylinder is securely packaged in a sturdy cardboard box.
• The cylinder is wrapped in bubble wrap to prevent any damage during transportation.
• Product specifications and instructions for use are included in the package.

Shipping:

• Orders will be processed within 1-2 business days.
• Shipping options include standard shipping (5-7 business days) and expedited shipping (2-3 business days).
• Shipping fees will be calculated based on the delivery location and chosen shipping method.
• Tracking information will be provided once the order has been shipped.
