Product Description:

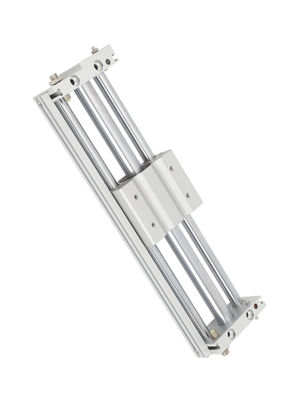

The CY1S magnetic coupling rodless cylinder has several key properties that make it ideal for various industrial applications:
- Maximum and minimum working pressures: This cylinder can operate within a maximum pressure of 0.7 MPa and a minimum pressure of 0.18 MPa. This means that it is reliable in a range of industrial settings.
- Temperature adaptability: The CY1S cylinder can operate in environments and fluids with temperatures between -10°C and 60°C. This adaptability makes it suitable for use in a range of environments, including those with extreme temperatures.
- Piston speed: This rodless cylinder has a piston speed that ranges between 50 and 400 millimeters per second. The cylinder provides fast and smooth motion, making it an ideal choice for applications that require high-speed operation.
- Installation space: Unlike regular cylinders, the rodless cylinder's piston action is transmitted to an external slider through magnetic coupling force, and does not require a piston rod. As a result, it requires less installation space.
- Sealing performance: The piston is separated from the slide table, preventing dust and dirt from entering the system and extending the service life of the rodless cylinder.
- Buffer device: The CY1S cylinder is equipped with fixed buffer devices at both ends, ensuring smooth and impact-free reversing action, while avoiding mechanical damage.
- Load capacity: The theoretical force of this cylinder is 500N, the maximum load is 2000N and the maximum force distance is 10Nm.
Overall, the CY1S magnetically coupled rodless cylinder is an excellent choice for a range of industrial applications. It is particularly well-suited for environments that require high-speed and smooth operation, as well as those with extreme temperatures.
Technical Parameters:
| Piston speed |
50-500mm/s |
| Temperature range |
-10—60℃ |
| Brand |
SMC |
| Proof pressure |
1.05MPA |
| Fluid |
Air |
| Custom-made Specifications |
0.18 To 0.7 |
| Product Type |
CY1S magnetic coupling rodless cylinder |
| Customizable |
Yes |
Applications:
The CY1S magnetic coupling rodless cylinder is ideal for applications that require a compact and efficient design. It is commonly used in the automation industry for tasks such as pick-and-place, sorting, and packaging. The customizable specifications make it versatile, allowing it to be adapted to specific application needs.
The SMC cylinder is capable of withstanding a proof pressure of 1.05MPA and a temperature range of -10—60℃, making it suitable for use in harsh environments. It is also available for purchase with a minimum order quantity of 1 and the price is negotiable, making it accessible for both small and large businesses.
In terms of packaging and delivery, the CY1S magnetic coupling rodless cylinder is packaged in a carton or as per the client's requirements. It is delivered within 1-7 workdays after payment and payment can be made through T/T, Western Union, or PayPal. The supply ability of this product is 5000 pieces per month, ensuring a steady supply for industrial needs.
In summary, the CY1S magnetic coupling rodless cylinder from SMC is a customizable and efficient product suitable for various industrial applications. It is designed to withstand harsh environments and is available for purchase with a flexible payment option. Contact us today to place your order and experience the efficiency of the SMC cylinder.
Packing and Shipping:
Product Packaging:
- The piston pneumatic cylinder will be securely packaged in a sturdy cardboard box.
- The product will be wrapped in bubble wrap to prevent any damage during shipping.
- All necessary product information and instructions will be included in the package.
Shipping:
- Shipping will be done through a reliable courier service.
- The package will be shipped within 2 business days of placing the order.
- A tracking number will be provided once the package has been shipped.
- Delivery times may vary depending on the destination.
