Product Description:

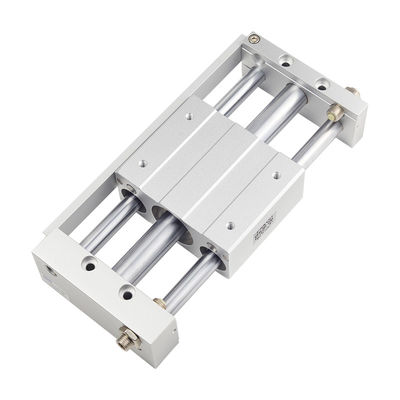

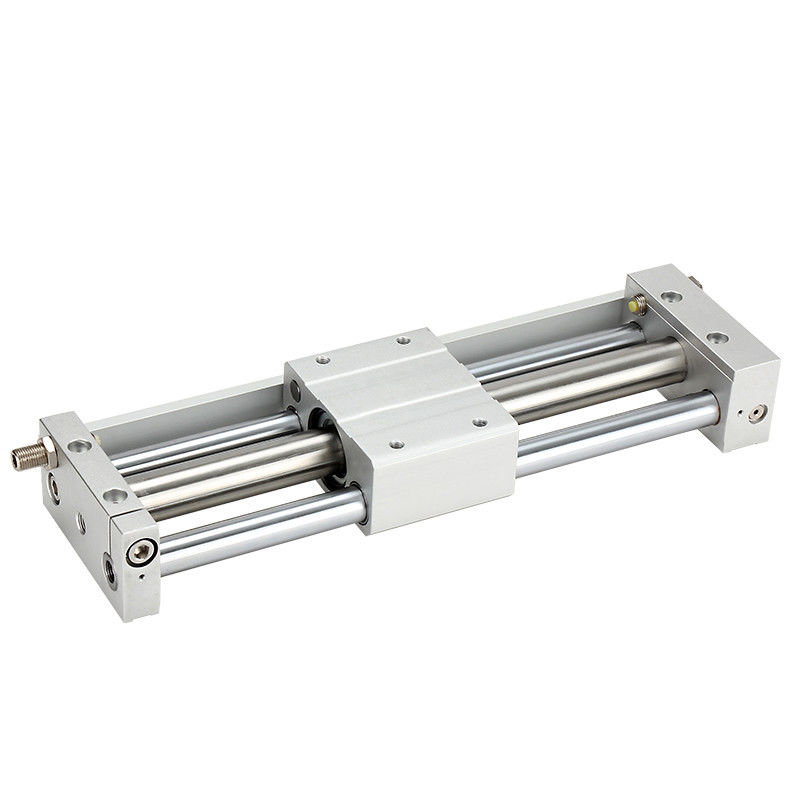

Main Properties of CY1L Series Rodless Cylinder
The CY1L series rodless cylinder has several main properties that can be highlighted, including cylinder diameter, stroke, material, temperature range, and function.
Cylinder Diameter and Stroke
The cylinder diameter range of the CY1L series rodless cylinder ranges from 10mm to 40mm, while the stroke range is between 100mm and 1000mm. For instance, the CY1L10H-450 model has a cylinder diameter of 10mm and stroke of 450mm.
Material and Temperature Range
The predominant material used in the CY1L series rodless cylinder is aluminum alloy, which can operate in ambient temperatures that are anywhere between -10 ℃ to 60 ℃. This makes it a good fit for different types of industrial environments.
Technical Parameters:
| Type |
Cylinder |
| Brand |
SMC |
| Slider Style |
Ball Bushing Bearing |
| Fluid |
Air |
| Temperature Range |
-10—60℃ |
| Bore Sizes |
6, 10, 15, 20, 25, 32, & 40 (mm) |
| Customizable |
Yes |
Applications:
The CY1L series rodless cylinders are ideal for a range of motion control scenarios, offering high efficiency and energy-saving features. They operate using a double-acting mode and fluid as air, cushioning forms as a cushion, and effectively absorbing impacts, thereby guaranteeing the safety of the cylinder and load.
One of the most significant advantages of this series is its non-oil supply design, which reduces maintenance costs and environmental pollution risks.
With its state-of-the-art features, the CY1L series rodless cylinder is an excellent option for anyone looking for a reliable and efficient motion control system.
Main features of the CY1L Series Rodless Cylinder
- Double-acting mode for a more efficient operation
- Fluid as air and cushioning forms as a cushion to absorb impact
- Non-oil supply design, reducing maintenance costs and environmental pollution risks.
Choose the CY1L series rodless cylinder for an energy-efficient, cost-effective and safe motion control system.
Packing and Shipping:
Product Name: Piston Pneumatic Cylinder
Product Description: A high-quality piston pneumatic cylinder designed for heavy-duty industrial applications.
Package Contents: 1 Piston Pneumatic Cylinder
Package Dimensions: 10 x 10 x 20 inches
Package Weight: 5 lbs
Shipping Method: Standard Ground Shipping
Estimated Delivery Time: 3-5 business days
