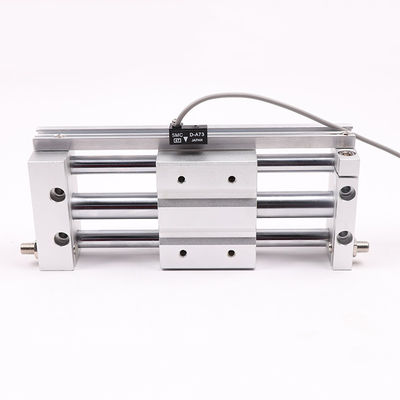

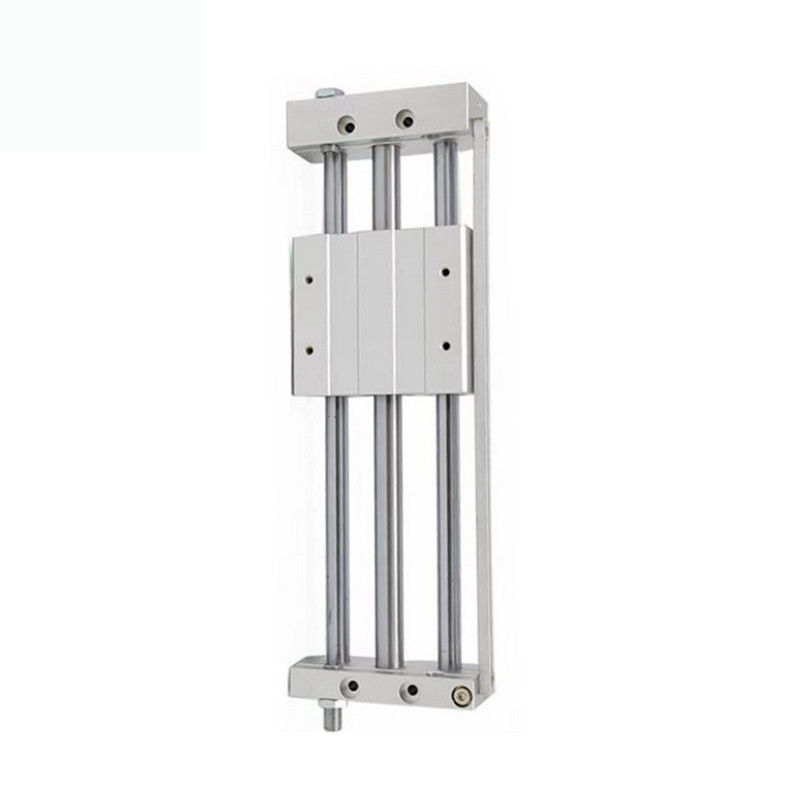

Product Description:
The CY1L series rodless cylinder is designed with several key properties in mind, such as cylinder diameter, stroke length, material, temperature range, and function.
Cylinder Diameter and Stroke: The CY1L series offers a cylinder diameter range from 10mm to 40mm and stroke lengths ranging from 100mm to 1000mm. For instance, the CY1L10H-450 has a cylinder diameter of 10mm and a stroke length of 450mm.
Material and Temperature Range: The CY1L series rodless cylinder is constructed primarily with aluminum alloy, which provides durability in various industrial environments. It can also function in a wide temperature range from -10 ℃ to 60 ℃.
Technical Parameters:
| Attribute |
Value |
| Brand |
SMC |
| Type |
Cylindre |
| Bore sizes |
6, 10, 15, 20, 25, 32, & 40 (mm) |
| Fluid |
Air |
| Slider style |
Ball Bushing Bearing |
| Temperature range |
-10—60℃ |
| Customizable |
Yes |
| Magnetic coupling rodless cylinder |
Yes |
Applications:
The CY1L series rodless cylinder is a highly-efficient and energy-saving solution that can be used in various motion control scenarios. The cylinder's action mode is double acting, utilizing fluid as air and a cushioning form as a cushion to effectively absorb impact and protect both the cylinder and load.
One notable feature of this series of cylinders is its non oil supply design, which helps to decrease maintenance costs and lessen the risk of environmental pollution. This also means that the cylinder is more environmentally friendly, making it an ideal choice for companies that prioritize sustainability and eco-friendliness.
The CY1L series rodless cylinder is a reliable and long-lasting option for motion control scenarios. Whether you need to handle heavy loads or require precise movement control, this cylinder can provide the necessary support and performance. Overall, it's an excellent investment for any company looking to improve their motion control capabilities, reduce maintenance costs, and prioritize sustainability.
Packing and Shipping:
Product Packaging:
- One Piston Pneumatic Cylinder
- Protective foam padding
- Instruction manual
Shipping:
- Ships within 1-2 business days
- Standard shipping via UPS or FedEx
- Shipping cost calculated at checkout
