Product Description:

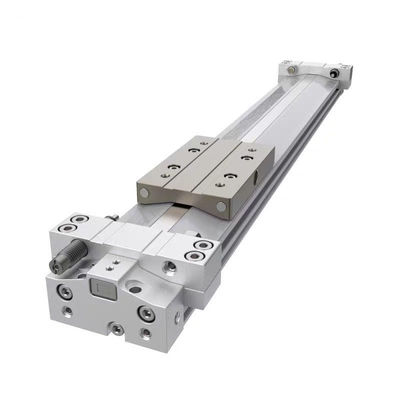

My1b Series Mechanical Engagement Rodless Cylinder
The basic properties of My1b series mechanical engagement rodless cylinder include cylinder diameter, stroke, magnetic switch, buffer type, etc.
Bore and Stroke
My1b series rodless cylinder has a diameter range of 10mm to 100mm and a maximum stroke of 5000mm. Specific models such as my1b32-800z have a cylinder diameter of 32mm and a stroke of 800mm; My1b32-300z also has a cylinder diameter of 32mm and a stroke of 300mm.
Magnetic Switch
The magnetic switch configuration of my1b series rodless cylinder is different. For example, the number of magnetic switches of my1b32-300z can be 2 or none. In addition, in the basic configuration of my1b series, the model and number of magnetic switches can be selected according to the demand. For example, ø 10 only has g, ø 16 only has a unit, and there is no travel adjustment unit on ø 50, ø 63, ø 80 and ø 100.
Buffer Form
My1b series rodless cylinders are air cushioned, which helps to reduce the impact and noise during movement and improve the stability and service life of the equipment.
Technical Parameters:
| Bore Size (mm) |
Technical Parameters |
| 10 |
MY1B Type Mechanical Rodless Cylinder, Fluid: Air, Brand: SMC, Temperature Range: -10—60℃ |
| 16 |
MY1B Type Mechanical Rodless Cylinder, Fluid: Air, Brand: SMC, Temperature Range: -10—60℃ |
| 20 |
MY1B Type Mechanical Rodless Cylinder, Fluid: Air, Brand: SMC, Temperature Range: -10—60℃ |
| 25 |
MY1B Type Mechanical Rodless Cylinder, Fluid: Air, Brand: SMC, Temperature Range: -10—60℃ |
| 32 |
MY1B Type Mechanical Rodless Cylinder, Fluid: Air, Brand: SMC, Temperature Range: -10—60℃ |
| 40 |
MY1B Type Mechanical Rodless Cylinder, Fluid: Air, Brand: SMC, Temperature Range: -10—60℃ |
| 50 |
MY1B Type Mechanical Rodless Cylinder, Fluid: Air, Brand: SMC, Temperature Range: -10—60℃ |
| 63 |
MY1B Type Mechanical Rodless Cylinder, Fluid: Air, Brand: SMC, Temperature Range: -10—60℃ |
Applications:
The SMC Piston Pneumatic Cylinder is available in different bore sizes, which include 10, 16, 20, 25, 32, 40, 50, and 63 millimeters. Its type is a Cylindre, and its fluid is air. The model is MY1B, and the brand is SMC.
The product is suitable for various applications in different industries. It can be used in manufacturing equipment, machine tools, and automation systems. It is designed to provide reliable and efficient operation in demanding environments. Whether it is used for lifting, pushing, or pulling, the SMC Piston Pneumatic Cylinder delivers excellent performance.
The Piston Pneumatic Cylinder can also be used in Mechanical Joint Rodless Cylinder applications. It is designed to eliminate the need for a mechanical joint, making it a versatile choice for different systems. The Rodless Cylinder technology ensures that the product is compact and easy to install. It is an ideal choice for applications that require a high level of precision and control.
In conclusion, the SMC Piston Pneumatic Cylinder is a high-quality product that is customizable and designed to meet different requirements. Its versatility makes it suitable for different applications, including Mechanical Joint Rodless Cylinder applications. The product is reliable and efficient, making it a cost-effective choice for different industries.
Packing and Shipping:
Product Packaging:

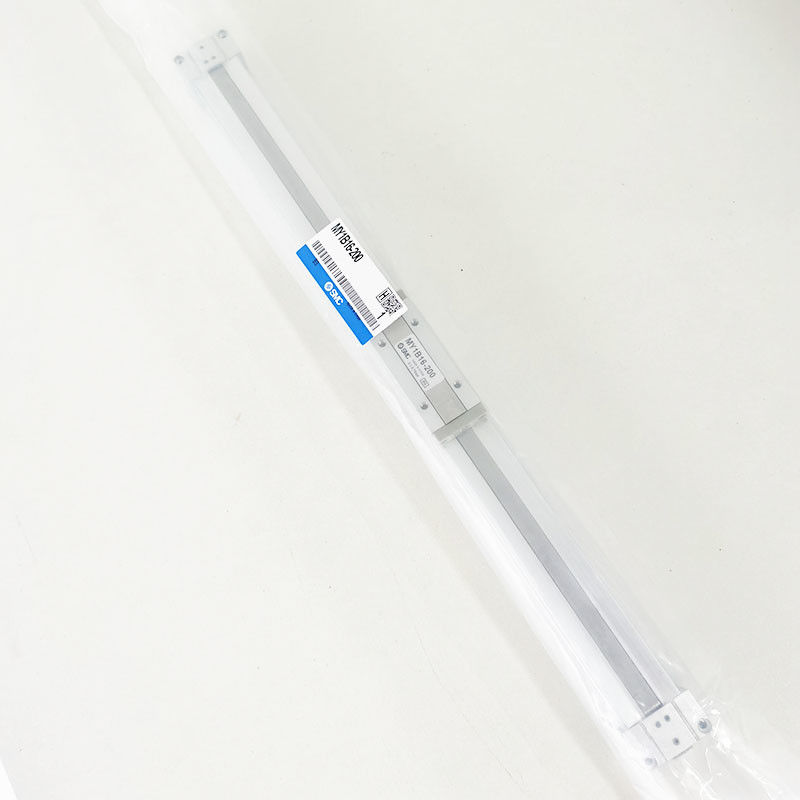

- Each piston pneumatic cylinder is individually wrapped in plastic to protect against scratches and damage during transportation.
- The wrapped cylinder is then placed in a sturdy cardboard box with ample padding to prevent movement and further protect against damage.
- The cardboard box is labeled with the product name, model number, and any other relevant information.
Shipping:
- Shipping is done via a reputable courier service.
- The package is tracked to ensure safe and timely delivery.
- The customer is provided with a tracking number to monitor the progress of their shipment.
