Product Description:

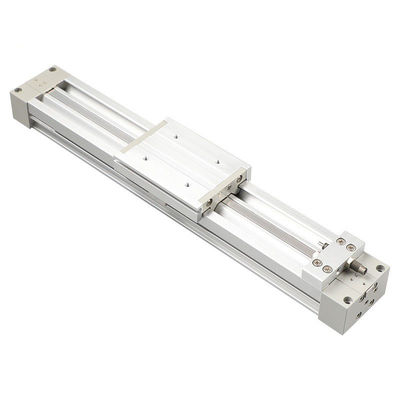

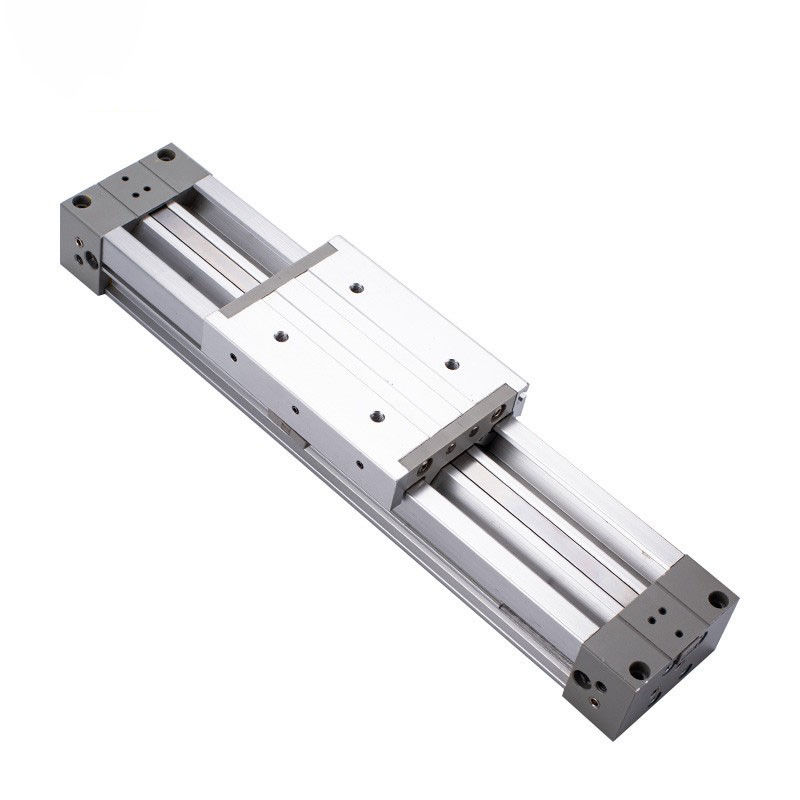

The Basic Attributes of MY1M Cylinder
The MY1M cylinder has various attributes that make it reliable and useful for different applications. Some of these are:
- Cylinder diameter and stroke: The cylinder diameter of the MY1M cylinder measures 40mm with a stroke of 400mm.
- Using fluid and pressure: The MY1M cylinder uses air as its working medium and has a minimum operating pressure of 0.2 MPa and a maximum operating pressure of 0.8 MPa.
- Action mode and guide rail form: The MY1M cylinder is a double-acting cylinder that uses a sliding bearing guide rail type for its mechanism.
- Buffer form: The cylinder has both a pneumatic buffer and a hydraulic buffer.
- Environmental temperature: The MY1M cylinder can operate at temperatures ranging from 5 ℃ to 60 ℃. The fluid temperature range is also the same.
- Piston speed: The MY1M cylinder has a piston speed range of 100mm/s to 1500mm/s.
- Material: The MY1M cylinder barrel is made of aluminum alloy with a resin end cover and an aluminum alloy slide table.
- Other features: The cylinder's standard travel includes 100mm, 200mm, 300mm, 400mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm, 1200mm, 1400mm, 1600mm, 1800mm, and 2000mm.
Application Scenarios and Advantages of MY1M Cylinder
The MY1M cylinder is an excellent choice for applications that require high precision and multiple load options. Its dual function design ensures exceptional performance in various industrial automation equipment, especially in applications that demand precise control and stable output.
The sliding bearing guide rail design of the MY1M cylinder provides excellent guiding performance and durability, making it suitable for environments that require long-term operation and high-frequency operation. With its reliable features, the MY1M cylinder is a versatile product that can be used in different settings.
Technical Parameters:
| Bore Sizes |
16, 20, 25, 32, 40, 50 (mm) |
| Fluid |
Air |
| Brand |
SMC |
| Type |
Cylinder |
| Temperature Range |
-10—60℃ |
| Model |
MY1M |
This Piston Pneumatic Cylinder is a customizable Mechanical Rodless Cylinder suitable for various industrial applications.
Applications:
The MY1M Type Mechanical Rodless Cylinder is widely used in various industrial automation fields, such as printing, textile, packaging, and food processing. These cylinders are suitable for applications that require long strokes and compact installations. The bore sizes available for these cylinders are 16, 20, 25, 32, 40, and 50 mm, which can meet the needs of different industrial applications.
The MY1M Type Mechanical Rodless Cylinder can operate within a temperature range of -10—60℃, making them suitable for use in different environments. The fluid used in these cylinders is air, which is easily available and cost-effective.
These cylinders have a high supply ability of 5000 pieces per month, ensuring that customers can get timely deliveries. The packaging details include carton packaging or as per the client's requirements.
The MY1M Type Mechanical Rodless Cylinder is easy to install and maintain, making them a popular choice for industrial automation. Customers can choose from different payment terms such as T/T, Western Union, and Paypal. The delivery time is 1-7 work days after payment, ensuring that customers can get their products quickly and efficiently.
In conclusion, the MY1M Type Mechanical Rodless Cylinder is a reliable and efficient product that can be used in various industrial automation scenarios. Its compact design, long stroke, and easy installation and maintenance make it a popular choice among customers. So, if you are looking for a high-quality pneumatic cylinder, the MY1M Type Mechanical Rodless Cylinder from SMC is definitely worth considering.
Packing and Shipping:
Product Packaging:
- Each piston pneumatic cylinder is individually packed in a sturdy cardboard box.
- The cylinder is secured with foam to prevent any damage during transportation.
- The box is labeled with the product name, model number, and quantity.
Shipping:
- Orders are processed within 24 hours of payment confirmation.
- We offer free standard shipping within the United States.
- For international shipping, additional charges may apply and delivery time may vary.
- Customers can track their order using the provided tracking number.
