Product Description:
Main Attributes of MY1H Series Cylinders
The MY1H series cylinders come with various features that include:
- Cylinder Diameter and Stroke: With a cylinder diameter range of 16mm to 63mm, and a stroke length range of 50mm to 2000mm, these cylinders are suitable for diverse applications. Some models even have stroke lengths of 4000mm and 5000mm.
- Port Threads: The MY1H series cylinders offer different port thread types, such as the M thread and Rc thread, which make them convenient for different pipeline connection needs.
- Magnetic Switch: Some models of the MY1H series cylinders are integrated with contactless magnetic switches. These switches can directly output signals and have indicator lights. The applicable voltage range is DC5V, 12V, 24V.
- Material: The cylinder barrel, end cap, and piston of the MY1H series cylinders are made of lightweight and durable aluminum alloy material.
- Application Scenarios: The MY1H series cylinders are ideal for automated assembly lines, robot handling, and printing industries, as they are suitable for applications requiring precise control and long stroke.
Technical Parameters:
| Attribute |
Value |
| Bore sizes |
16, 20, 25, 32, 40 (mm) |
| Temperature range |
-10—60℃ |
| Brand |
SMC |
| Fluid |
Air |
| Model |
MY1H |
| Type |
Cylinder |

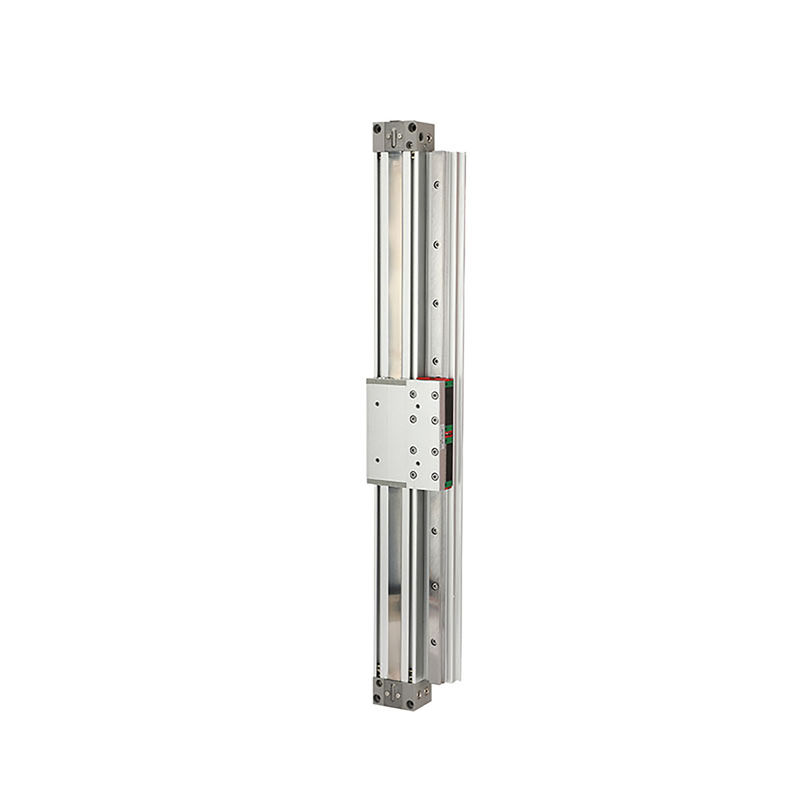

This is a Rodless Cylinder from the MY1H series. It is a MY1H Type Mechanical rodless Cylinder.
Applications:
The SMC MY1H series piston pneumatic cylinder is designed to operate with air as the fluid. It comes with a bore size of 16, 20, 25, 32, and 40 (mm). The product is of the linear guide type and is of MY1H type mechanical rodless cylinder. The temperature range for this product is -10—60℃.
The MY1H series piston pneumatic cylinder is suitable for various applications. It is primarily used in automation systems, where it is used to move objects along a linear path. It is also used in the transportation industry, where it is used to control the movement of goods along a conveyor belt or to move objects from one location to another. The MY1H series piston pneumatic cylinder is also used in the packaging industry, where it is used to control the movement of the packaging material along the assembly line.
The MY1H series piston pneumatic cylinder is also used in the printing industry, where it is used to control the movement of the printing head along the paper. It is also used in the textile industry, where it is used to control the movement of the fabric along the assembly line. The MY1H series piston pneumatic cylinder is also used in the food and beverage industry, where it is used to control the movement of the food items along the assembly line.
The MY1H series piston pneumatic cylinder is a highly versatile product that can be used in a wide range of applications. Its linear guide type and MY1H type mechanical rodless cylinder make it highly reliable and efficient. If you are looking for a high-quality piston pneumatic cylinder, the MY1H series from SMC is an excellent choice.
Packing and Shipping:
Product Packaging:
- The piston pneumatic cylinder will be packed securely in a cardboard box to prevent any damage during transit.
- All necessary accessories and user manuals will be included in the package.
- The package will also contain a foam insert for added protection.
Shipping:
- The package will be shipped via a reliable courier service.
- Once the order has been confirmed, the package will be dispatched within 1-2 business days.
- The estimated delivery time will depend on the destination and shipping method chosen at checkout.
- A tracking number will be provided to the customer so that they can track their package.
