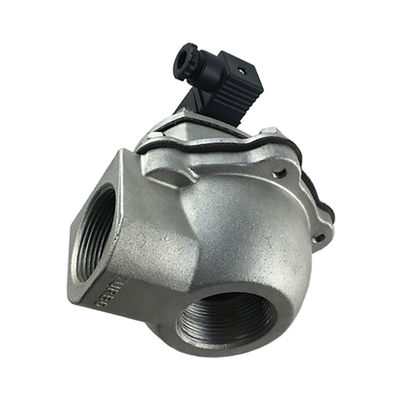

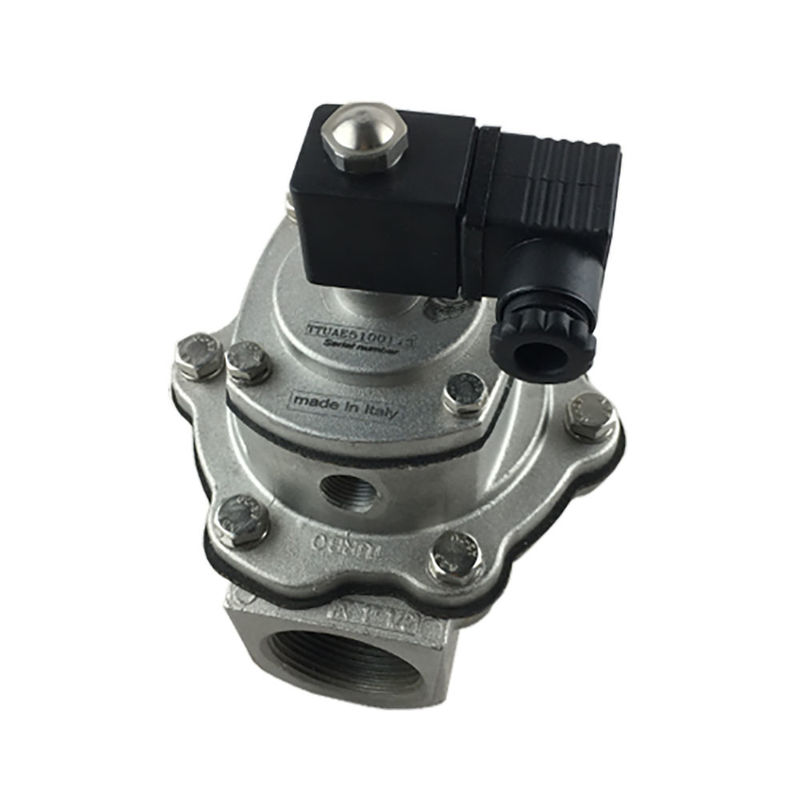

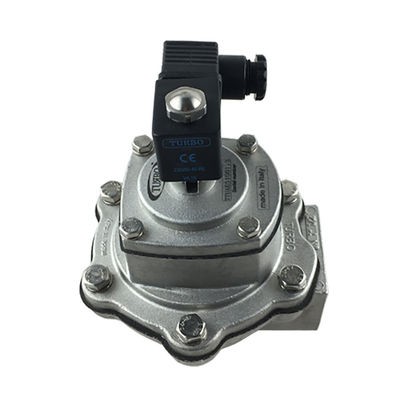

TURBO type FP40 1-1/2 " 1.5 inch right angle electromagnetic pulse valve DN40

TURBO type FP40 1-1/2 " 1.5 inch right angle electromagnetic pulse valve DN40

  • TURBO type FP40 1-1/2 " 1.5 inch right angle electromagnetic pulse valve DN40
  • TURBO type FP40 1-1/2 " 1.5 inch right angle electromagnetic pulse valve DN40
  • TURBO type FP40 1-1/2 " 1.5 inch right angle electromagnetic pulse valve DN40
  • TURBO type FP40 1-1/2 " 1.5 inch right angle electromagnetic pulse valve DN40
TURBO type FP40 1-1/2 " 1.5 inch right angle electromagnetic pulse valve DN40
Product Details:
Place of Origin: China
Brand Name: TURBO
Certification: CE
Model Number: FP40
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton /As The Clients Require
Delivery Time: 1-7Work Days After Payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 5000 pieces/1Month
Contact Now
Detailed Product Description
Temperature: STDdiaphragm -40°C; +80°C Operating Pressure: Min. 0,5; Max 7,5 Bar
Core Tube: Stainless Steel Standard Voltage: 230 -110 – 24V / 50-60VHz 19VA 24VDC15W

Fluid Filtered and oilfree compressed air
Temperature STDdiaphragm -40°C; +80°C
range Viton diaphragm -30°C; +200°C
Operating pressure min. 0,5; max 7,5 bar
Body e cover Die cast aluminium
Core tube Stainless Steel
Plunger Stainless Steel
Screws Stainless Steel
Coil insulation Class H
Connector PG9; IP65 DIN 43650 ISO 4400
Standard voltage 230 -110 – 24V / 50-60VHz 19VA 24VDC15W

TURBO type FP40 1-1/2 " 1.5 inch right angle electromagnetic pulse valve DN40 0

TURBO type FP40 1-1/2 " 1.5 inch right angle electromagnetic pulse valve DN40 1

TURBO type FP40 1-1/2 " 1.5 inch right angle electromagnetic pulse valve DN40 2
Pulse Valve Model : FP40

TURBO type FP40 1-1/2 " 1.5 inch right angle electromagnetic pulse valve DN40 3
