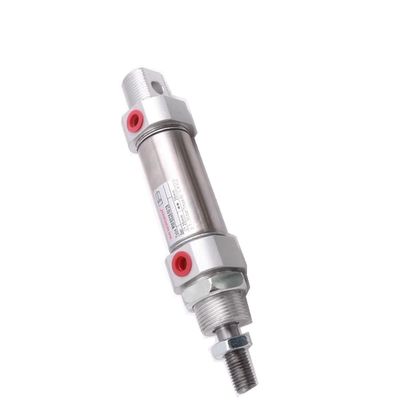

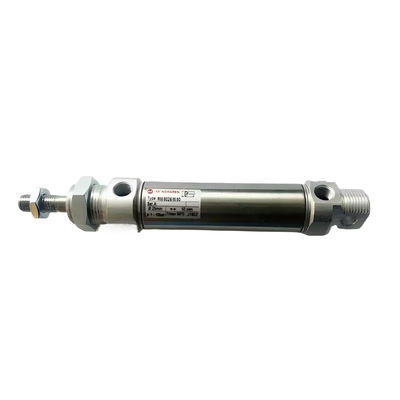

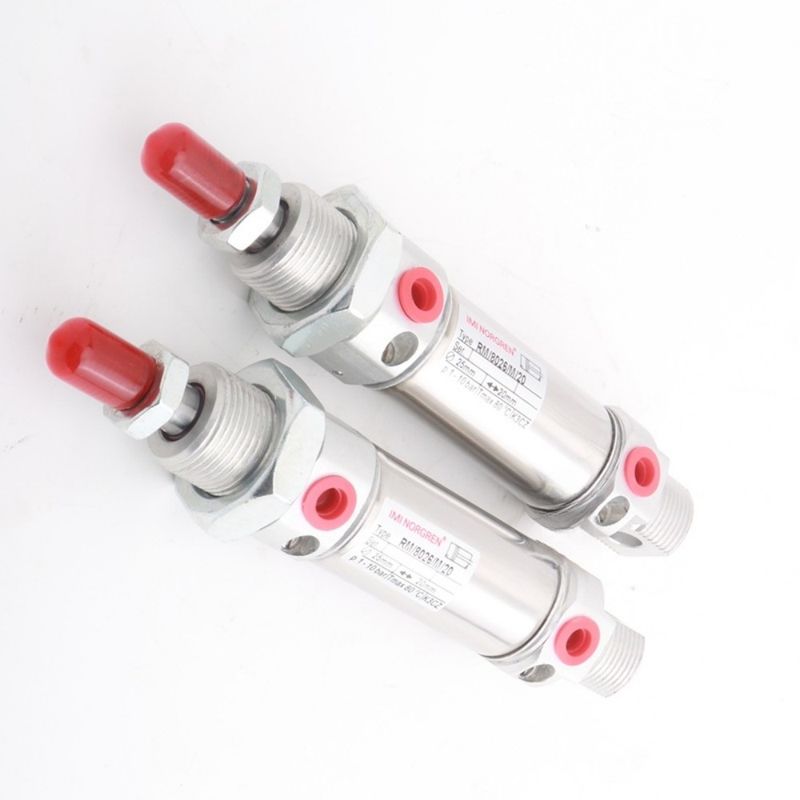

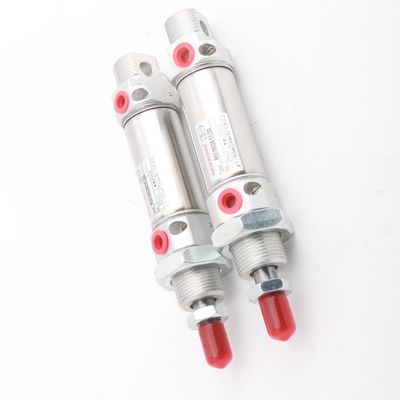

Air Piston Cylinder RM/8012/M/80 NORGREN For Double Acting Function In Industrial Settings

Air Piston Cylinder RM/8012/M/80 NORGREN For Double Acting Function In Industrial Settings

  • Air Piston Cylinder RM/8012/M/80 NORGREN For Double Acting Function In Industrial Settings
  • Air Piston Cylinder RM/8012/M/80 NORGREN For Double Acting Function In Industrial Settings
  • Air Piston Cylinder RM/8012/M/80 NORGREN For Double Acting Function In Industrial Settings
  • Air Piston Cylinder RM/8012/M/80 NORGREN For Double Acting Function In Industrial Settings
Air Piston Cylinder RM/8012/M/80 NORGREN For Double Acting Function In Industrial Settings
Product Details:
Brand Name: NORGREN
Certification: CE
Model Number: RM/8012/M/80
Document: NORGREN8000.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton /As The Clients Require
Delivery Time: 1-7Work Days After Payment
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 5000 Pieces/1Month
Contact Now
Detailed Product Description
Series: ISO Roundline Media: Compressed Air
Operation: Double Acting Operating Temperature: -5 ... 80 °C
Materials - Barrel: Stainless Steel Operating Pressure: 1 ... 10 Bar

Product Description:

The NORGREN RM series cylinders are advanced pneumatic actuators introduced by Norgren from the United Kingdom . They are specifically crafted for industrial automation , adhering to the ISO 6432 standard and capable of functioning effectively in various challenging environments .

This cylinder series offers double-acting or single-acting drive mechanisms . For instance, the RM/28000/M model functions as a single-acting spring-return type , while the RM/8025/M operates as a double-acting type . These cylinders are furnished with magnetic pistons and are compatible with magnetic switches for precise control , meeting the flexible system integration needs.


Technical Parameters:

Medium: Compressed air, filtered, lubricated or non-lubricated

Standard: ISO 6432

Operation:

Double acting with magnetic piston and buffer or adjustable cushioning

Operating pressure: 1 ... 10 bar (14 ... 145 psi)

Cylinder diameters: 10, 12, 16, 20, 25 mm (buffer) 16, 20, 25 mm (adjustable cushioning)

Strokes: See page below

Non-standard strokes: up to 1000 mm max. on request

Operating temperature:

-5 ... +80°C max. (+23 ... +176°F)

Air supply must be dry enough to avoid ice formation at temperatures below +2 °C (+35 °F).

Materials:

Barrel: stainless steel (austenitic)

End covers: clear anodised aluminium alloy

Piston rod: stainless steel (austenitic)

Buffer: PUR

Wiper: PUR

Seals: NBR


Applications:

Typical applications span across various fields including food packaging, pharmaceutical equipment, and chemical automation. These systems are especially well-suited for situations that demand resistance to corrosion, ease of cleaning, or frequent usage.


Support and Services:

Our company provides comprehensive Product Technical Support and Services for our Piston Pneumatic Cylinder product. Our expert team is available to assist with any inquiries, troubleshooting, or technical issues that may arise. We offer product training, maintenance services, and guidance on proper usage to ensure optimal performance and longevity of the product. Customers can rely on our dedicated support to address any concerns and maximize the efficiency of their pneumatic cylinder.


Packing and Shipping:

Product Name: Piston Pneumatic Cylinder

Description: High-performance piston pneumatic cylinder suitable for various industrial applications.

Features: Durable construction, smooth operation, multiple bore sizes available.

Package Includes: 1 x Piston Pneumatic Cylinder

Shipping Details: Ships within 1-2 business days. Shipping method depends on the location and can be tracked online.

Air Piston Cylinder RM/8012/M/80 NORGREN For Double Acting Function In Industrial Settings 0

Air Piston Cylinder RM/8012/M/80 NORGREN For Double Acting Function In Industrial Settings 1
