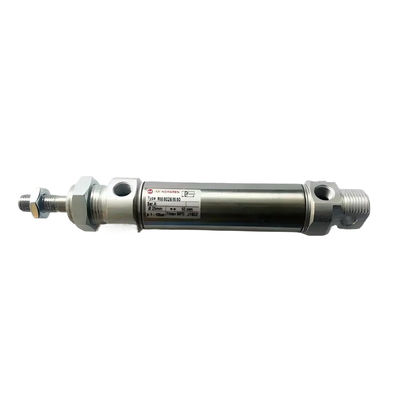

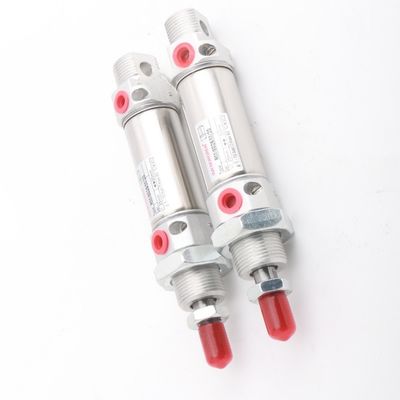

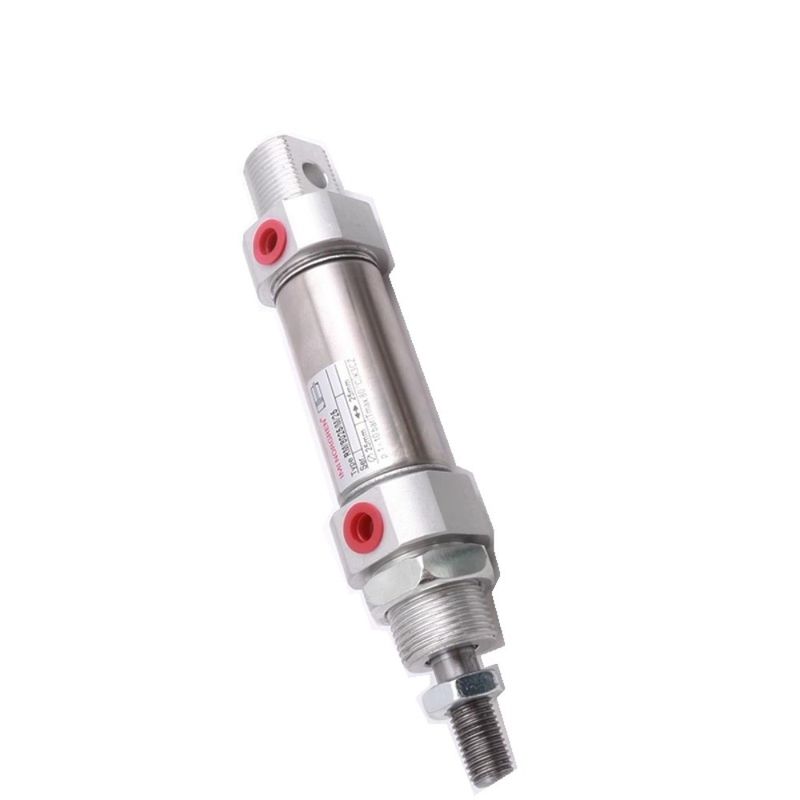

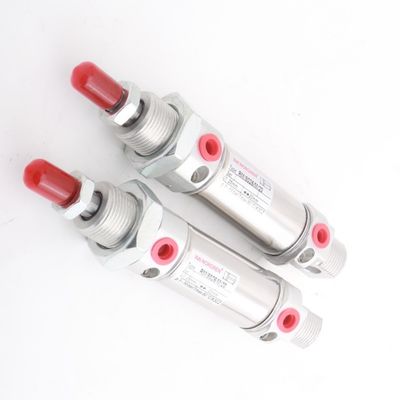

Piston Pneumatic Cylinder RM/8012/M/75 Magnetic piston double acting Cylinder NORGREN

Product Description:

The NORGREN RM series cylinders are high-performance pneumatic actuators launched by Norgren of the United Kingdom. They are specially designed for industrial automation, comply with the ISO 6432 standard, and are suitable for a variety of harsh environments.

This series of cylinders adopts double-acting or single-acting drive methods. For example, RM/28000/M is a single-acting spring-return type, and RM/8025/M is a double-acting type. The cylinders are equipped with magnetic pistons and support precise control by magnetic switches, meeting the flexible system integration requirements.

Technical Parameters:

Medium: Compressed air, filtered, lubricated or non-lubricated

Standard: ISO 6432

Operation:
Double acting with magnetic piston and buffer or adjustable cushioning

Operating pressure: 1 ... 10 bar (14 ... 145 psi)

Cylinder diameters: 10, 12, 16, 20, 25 mm (buffer) / 16, 20, 25 mm (adjustable cushioning)

Strokes: See page below
Non-standard strokes: up to 1000 mm max. on request

Operating temperature:
-5 ... +80°C max. (+23 ... +176°F)
Air supply must be dry enough to avoid ice formation at temperatures below +2 °C (+35 °F).

Materials:
Barrel: stainless steel (austenitic)
End covers: clear anodised aluminium alloy
Piston rod: stainless steel (austenitic)
Buffer: PUR
Wiper: PUR
Seals: NBR

Applications:

Typical applications cover various fields, including food packaging, pharmaceutical equipment, and chemical automation. These applications are especially well-suited for scenarios that demand features like anti-corrosion properties, easy cleaning, or high-frequency operation.
