Name: Magnetic Piston Double Acting Cylinder RM/8012/M/40 Norgren Industrial Applications
Brand: YW DKE TRADING COMPANY
SKU: RM/8012/M/40
Availability: InStock

Home Products Piston Pneumatic Cylinder

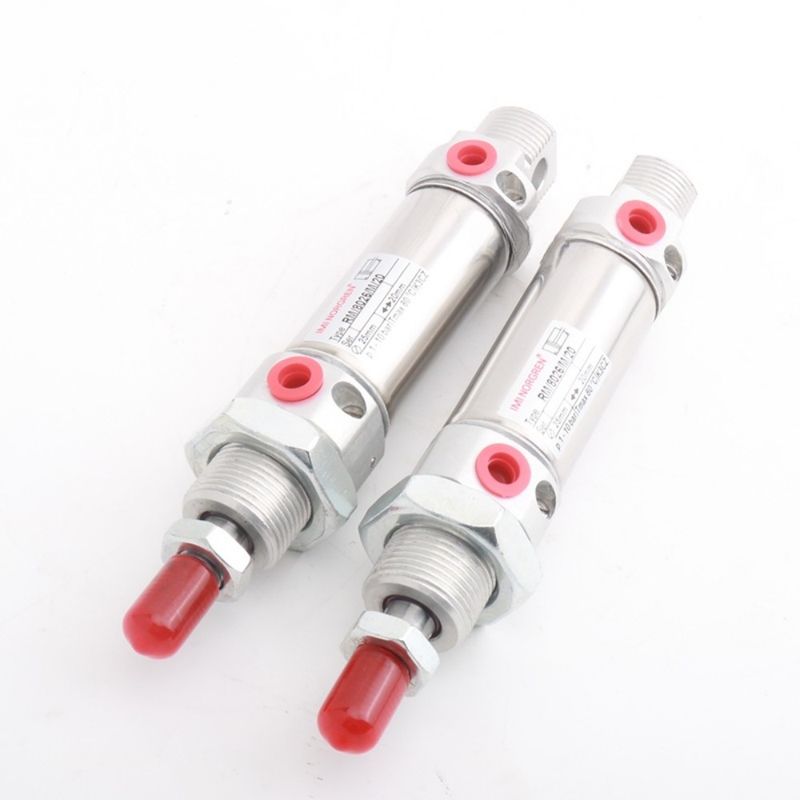

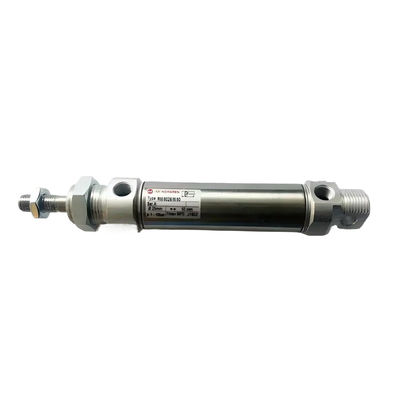

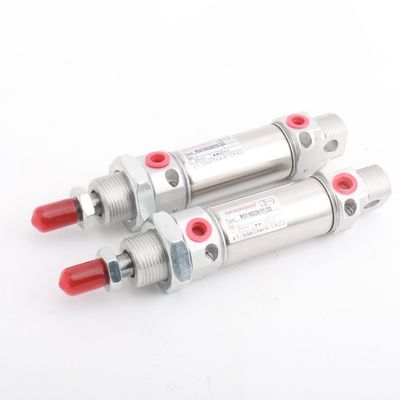

Magnetic Piston Double Acting Cylinder RM/8012/M/40 Norgren Industrial Applications

Product Details:

Brand Name:	NORGREN
Certification:	CE
Model Number:	RM/8012/M/40
Document:	NORGREN8000.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Carton /As The Clients Require
Delivery Time:	1-7Work Days After Payment
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	5000 Pieces/1Month

Contact Now

Detailed Product Description

Operating Pressure:	1 ... 10 Bar	Operation:	Double Acting
Media:	Compressed Air	Series:	ISO Roundline
Operating Temperature:	-5 ... 80 °C	Materials - Barrel:	Stainless Steel

Product Description:

The NORGREN RM series cylinders represent a top-tier selection of pneumatic actuators introduced by Norgren, a renowned company based in the United Kingdom. These cylinders are impeccably designed to meet the demands of industrial automation and adhere to the ISO 6432 standard. They are engineered to thrive in diverse challenging environments.

Within this series, you will find cylinders that employ both double-acting and single-acting drive methods. For instance, the RM/28000/M model functions as a single-acting spring-return type, while the RM/8025/M model operates as a double-acting type. These cylinders feature magnetic pistons and are equipped with magnetic switches to allow for precise control, effectively catering to a range of system integration needs.

Technical Parameters:

Medium: Compressed air, filtered, lubricated or non-lubricated

Standard: ISO 6432

Operation: Double acting with magnetic piston and buffer or adjustable cushioning

Operating pressure: 1 ... 10 bar (14 ... 145 psi)

Cylinder diameters: 10, 12, 16, 20, 25 mm (buffer) 16, 20, 25 mm (adjustable cushioning)

Strokes: See page below

Non-standard strokes: up to 1000 mm max. on request

Operating temperature: -5 ... +80°C max. (+23 ... +176°F)

Air supply must be dry enough to avoid ice formation at temperatures below +2 °C (+35 °F).

Materials:

Barrel: stainless steel (austenitic)

End covers: clear anodised aluminium alloy

Piston rod: stainless steel (austenitic)

Buffer: PUR

Wiper: PUR

Seals: NBR

Technical data
Cylinder Ø (mm)	10	12	16	20	25
Port size	M5	M5	M5	G1/8	G1/8
Piston rod Ø (mm)	4	6	6	8	10
Pistonrodthread	M4	M6	M6	M8	M10x1,25
Cushion length mm	—	—	16	19	19
Initial cushion volume (cm3) *1)	—	—	2,4	4,4	7,2
Theoretical thrusts at 6 bar outstroke (N)	47,1	67,8	120	188	294
Theoretical thrusts at 6 bar instroke (N)	39,6	51	104	158	247
Air consumption at 6 bar outstroke (l/cm)	0,006	0,008	0,014	0,022	0,035
Air consumption at 6 bar instroke (l/cm)	0,005	0,006	0,013	0,019	0,028
*1) For cylinders with adjustable cushioning only

Applications:

Typical applications span various industries, including but not limited to food packaging, pharmaceutical equipment, and chemical automation. These applications are well-suited for environments that demand features like anti-corrosion protection, easy cleaning capabilities, and high-frequency operation.
