Product Description:

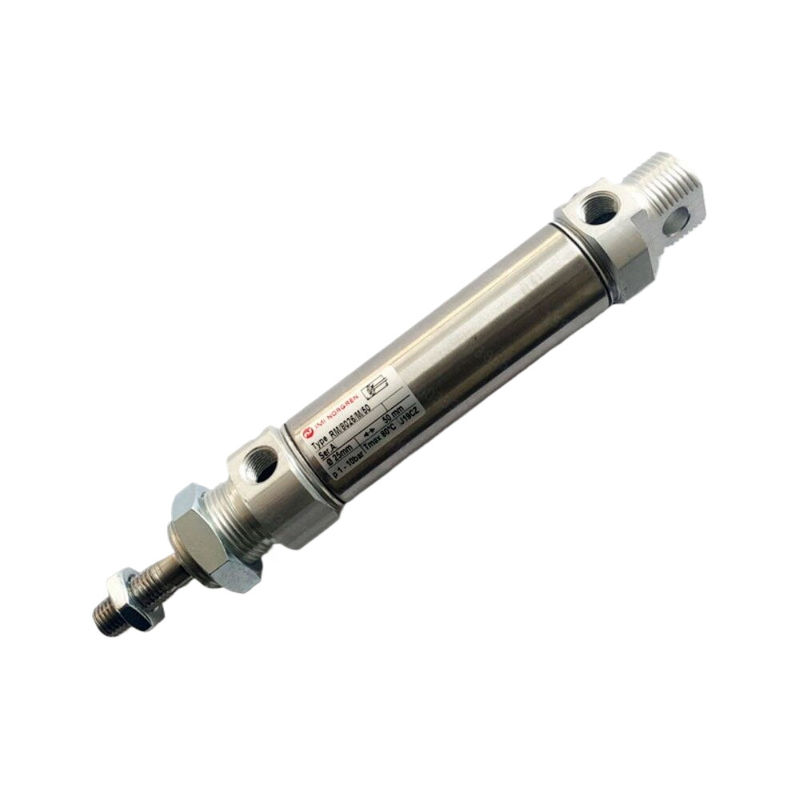

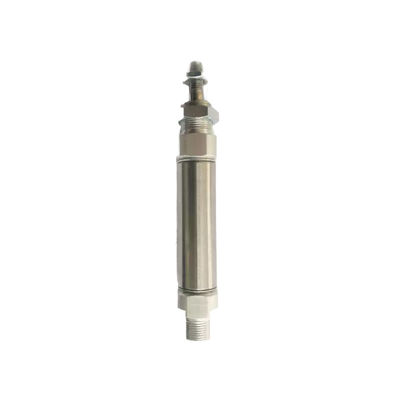

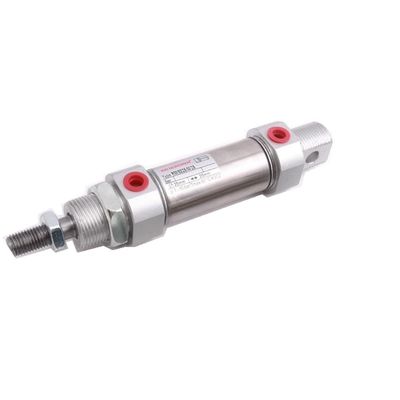

The NORGREN RM series cylinders are advanced pneumatic actuators introduced by Norgren, a leading company based in the United Kingdom. These cylinders are specifically engineered for industrial automation applications and comply with the ISO 6432 standard. They are well-suited for use in various challenging environments.
The RM series features a range of drive methods, including double-acting or single-acting options. For instance, the RM/28000/M model is a single-acting spring-return type, while the RM/8025/M is a double-acting variant. These cylinders are designed with magnetic pistons and are compatible with magnetic switches, enabling precise control and satisfying the requirements of flexible system integration.
Technical Parameters:
| Technical data |
| Cylinder Ø (mm) |
10 |
12 |
16 |
20 |
25 |
| Port size |
M5 |
M5 |
M5 |
G1/8 |
G1/8 |
| Piston rod Ø (mm) |
4 |
6 |
6 |
8 |
10 |
| Pistonrodthread |
M4 |
M6 |
M6 |
M8 |
M10x1,25 |
| Cushion length mm |
— |
— |
16 |
19 |
19 |
| Initial cushion volume (cm3) *1) |
— |
— |
2,4 |
4,4 |
7,2 |
| Theoretical thrusts at 6 bar outstroke (N) |
47,1 |
67,8 |
120 |
188 |
294 |
| Theoretical thrusts at 6 bar instroke (N) |
39,6 |
51 |
104 |
158 |
247 |
| Air consumption at 6 bar outstroke (l/cm) |
0,006 |
0,008 |
0,014 |
0,022 |
0,035 |
| Air consumption at 6 bar instroke (l/cm) |
0,005 |
0,006 |
0,013 |
0,019 |
0,028 |
| *1) For cylinders with adjustable cushioning only |
Applications:
Typical applications span various industries, including food packaging, pharmaceutical equipment, and chemical automation. These applications are well-suited for environments that necessitate features such as anti-corrosion properties, ease of cleaning, or high-frequency operation.
