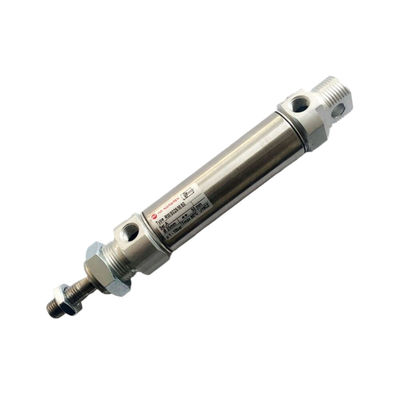

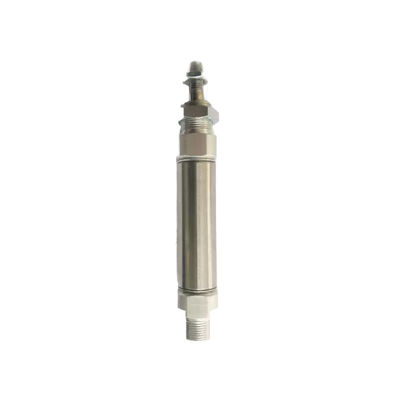

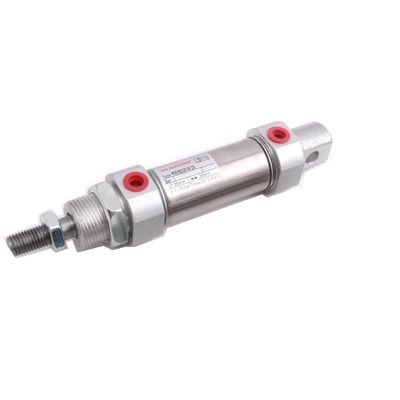

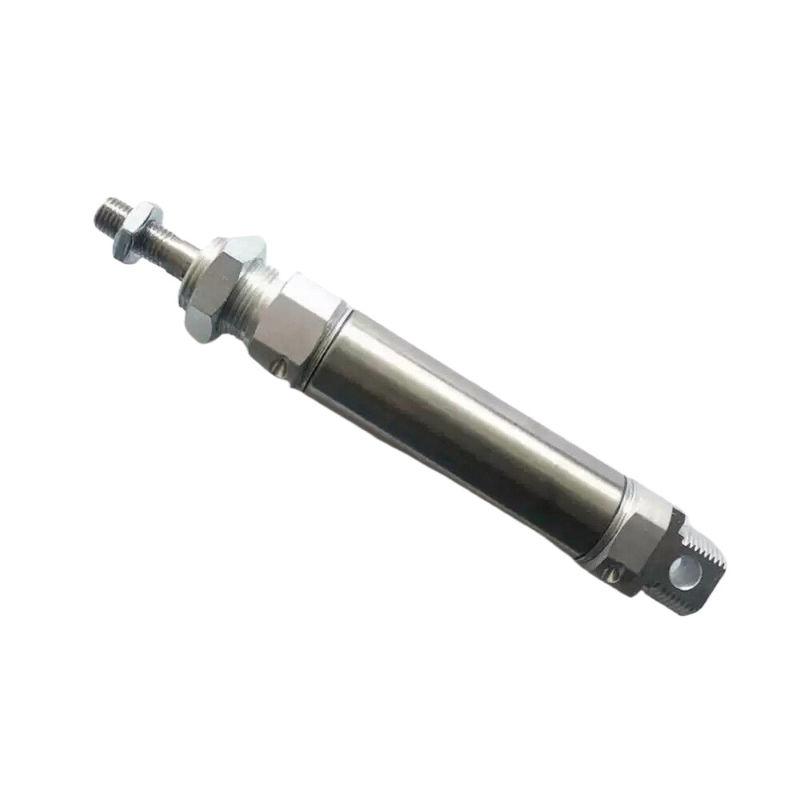

Stainless Steel RM/8012/M/15 Barrel Double Acting Cylinder ISO Roundline Series NORGREN

Product Description:

The NORGREN RM series cylinders are high-performance pneumatic actuators launched by Norgren of the United Kingdom. They are specifically designed for industrial automation and are compliant with the ISO 6432 standard. These cylinders are suitable for operation in various challenging environments.

This series of cylinders comes with options for double-acting or single-acting drive methods. For instance, the RM/28000/M is a single-acting spring-return type, while the RM/8025/M is a double-acting type. Equipped with magnetic pistons, these cylinders support precise control through magnetic switches, thus meeting the requirements for flexible system integration.

Technical Parameters:

Medium: Compressed air, filtered, lubricated or non-lubricated

Standard: ISO 6432

Operation: Double acting with magnetic piston and buffer or adjustable cushioning

Operating pressure: 1 ... 10 bar (14 ... 145 psi)

Cylinder diameters: 10, 12, 16, 20, 25 mm (buffer) 16, 20, 25 mm (adjustable cushioning)

Strokes: See page below

Non-standard strokes: up to 1000 mm max. on request

Operating temperature: -5 ... +80°C max. (+23 ... +176°F)

Air supply must be dry enough to avoid ice formation at temperatures below +2 °C (+35 °F).

Materials:

Barrel: stainless steel (austenitic)

End covers: clear anodised aluminium alloy

Piston rod: stainless steel (austenitic)

Buffer: PUR

Wiper: PUR

Seals: NBR

Applications:

Typical applications span across various fields, including food packaging, pharmaceutical equipment, and chemical automation. These applications are well-suited for situations that necessitate features like anti-corrosion properties, easy cleanability, and high-frequency operation.

Support and Services:

Product Technical Support and Services for Piston Pneumatic Cylinder:

- Troubleshooting assistance for installation and operation issues.

- Guidance on maintenance and proper handling of the cylinder.

- Information on recommended spare parts and replacements.

- Support for understanding technical specifications and capabilities of the product.

- Assistance with identifying and addressing performance issues.

- Access to product documentation, user manuals, and technical guides.
