Product Description:

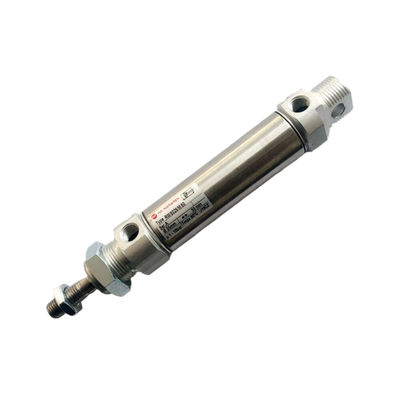

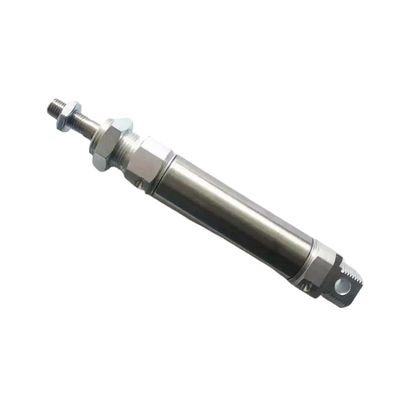

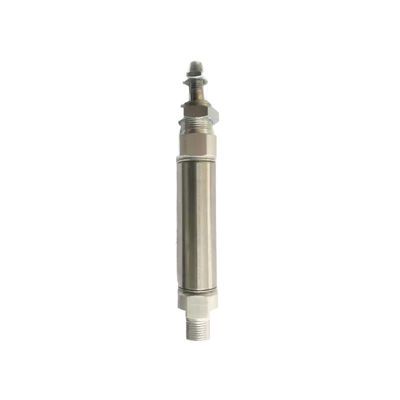

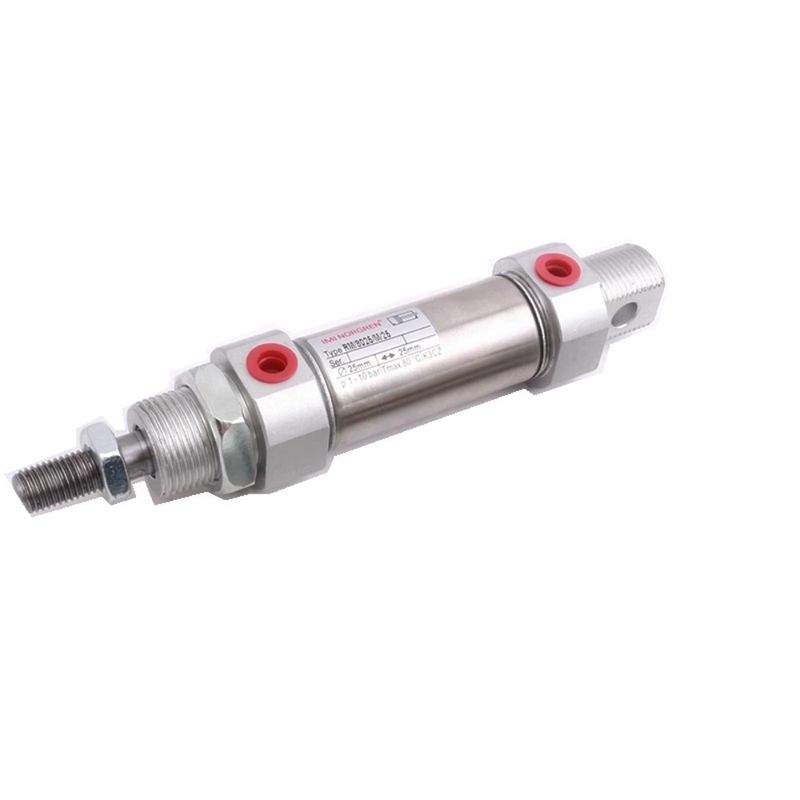

The NORGREN RM series cylinders are high-performance pneumatic actuators launched by Norgren of the United Kingdom. They are specially designed for industrial automation, complying with the ISO 6432 standard, and are suitable for a variety of harsh environments.
This series of cylinders adopts double-acting or single-acting drive methods. For example, RM/28000/M is a single-acting spring-return type, and RM/8025/M is a double-acting type. Equipped with magnetic pistons, these cylinders support precise control by magnetic switches, meeting the flexible system integration requirements.
Technical Parameters:
| Cylinder Ø (mm) |
10 |
12 |
16 |
20 |
25 |
| Port size |
M5 |
M5 |
M5 |
G1/8 |
G1/8 |
| Piston rod Ø (mm) |
4 |
6 |
6 |
8 |
10 |
| Pistonrodthread |
M4 |
M6 |
M6 |
M8 |
M10x1,25 |
| Cushion length mm |
— |
— |
16 |
19 |
19 |
| Initial cushion volume (cm3) *1) |
— |
— |
2,4 |
4,4 |
7,2 |
| Theoretical thrusts at 6 bar outstroke (N) |
47,1 |
67,8 |
120 |
188 |
294 |
| Theoretical thrusts at 6 bar instroke (N) |
39,6 |
51 |
104 |
158 |
247 |
| Air consumption at 6 bar outstroke (l/cm) |
0,006 |
0,008 |
0,014 |
0,022 |
0,035 |
| Air consumption at 6 bar instroke (l/cm) |
0,005 |
0,006 |
0,013 |
0,019 |
0,028 |
| *1) For cylinders with adjustable cushioning only |
Applications:
Typical applications span various industries including food packaging, pharmaceutical equipment, and chemical automation. They are especially well-suited for situations necessitating resistance to corrosion, effortless cleaning, or frequent operation.
Support and Services:
Our Product Technical Support and Services for the Piston Pneumatic Cylinder include:
- Expert troubleshooting assistance for any technical issues
- Maintenance and repair services to ensure optimal performance
- Product training and resources for proper installation and operation
- Warranty support for any covered issues
Packing and Shipping:
Product Packaging:
The Piston Pneumatic Cylinder will be carefully packaged in a sturdy cardboard box to ensure safe transportation. The cylinder will be securely cushioned to prevent any damage during shipping.
Shipping:
Once your order is confirmed, the Piston Pneumatic Cylinder will be shipped within 1-2 business days. We use reliable shipping services to deliver your product safely and on time. You will receive a tracking number to monitor the status of your shipment.
