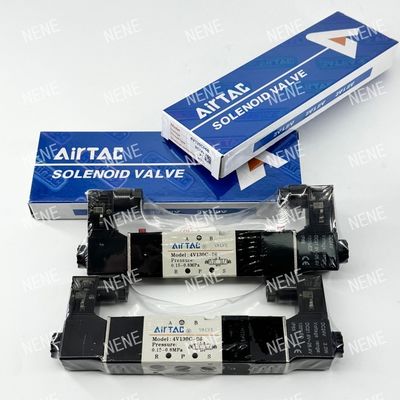

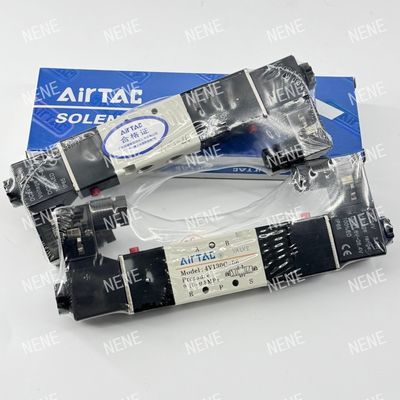

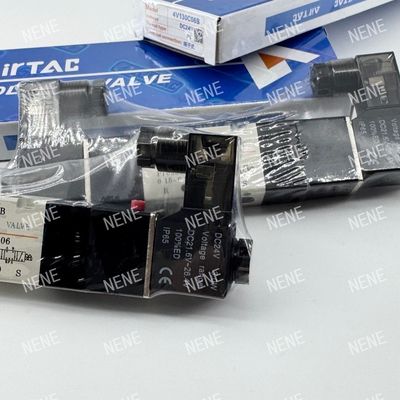

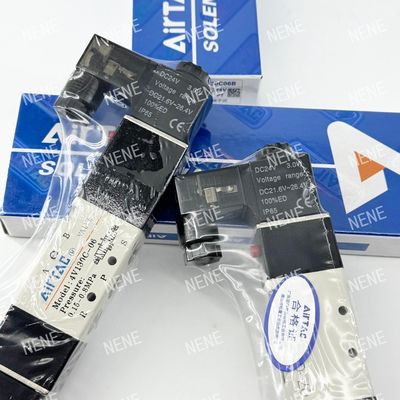

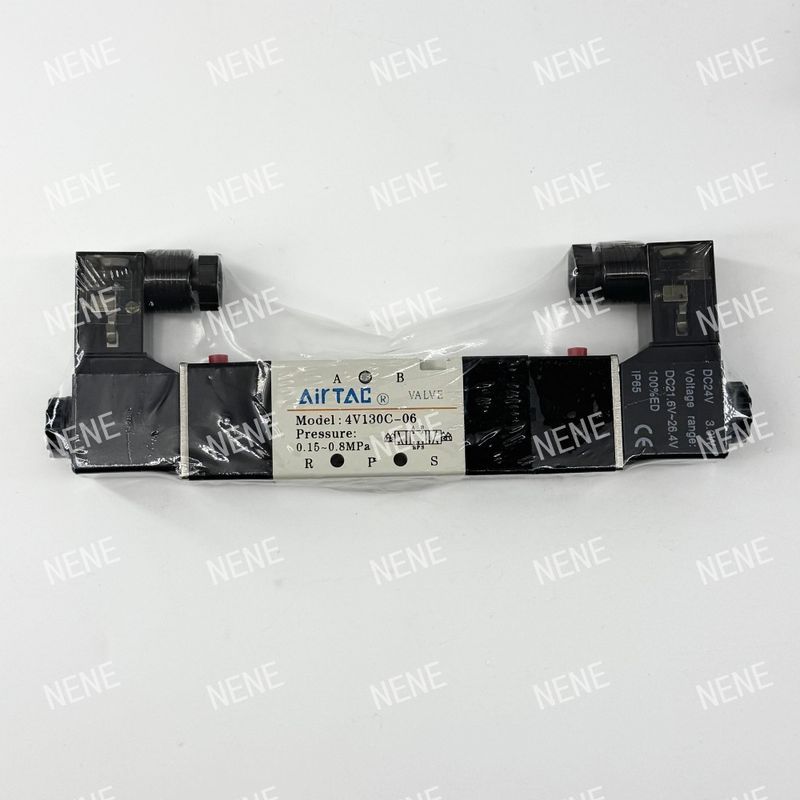

Name: Electron Magnetic Valve 4V130P-06 AIRTAC For Precise Air Control In 0.15 To 0.8 MPa Pressure Range
Brand: YW DKE TRADING COMPANY
SKU: 4V130P-06
Availability: InStock

Home Products ASCO Solenoid Valve

Electron Magnetic Valve 4V130P-06 AIRTAC For Precise Air Control In 0.15 To 0.8 MPa Pressure Range

Product Details:

Place of Origin:	China
Brand Name:	AIRTAC
Certification:	CE
Model Number:	4V130P-06

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Carton /As The Clients Require
Delivery Time:	1-7Work Days After Payment
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	5000PCs per month

Contact Now

Detailed Product Description

Temperature:	-20 To +70℃	Operating Pressure:	0.15 To 0.8 MPa (21 To 114 Psi)
Body Material:	Aluminum Alloy	Voltages:	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Proof Pressure:	1.2MPa (175psi)	Fluid:	Air

Product Description:

Pilot-oriented mode can be either internal pilot or external pilot.
Structure in sliding column mode ensures good tightness and sensitive reaction.
Three position solenoid valves offer three kinds of central function options.
Double control solenoid valves come with a memory function.
Special processing technology is used for the internal hole to reduce attrition friction, achieve low start pressure, and provide a long service life.
No additional oil is required for lubrication.
Integrated valve groups can be formed with the base to save installation space.
Manual devices are included for easier installation and debugging.
Multiple standard voltage grades are available to choose from.

Technical Parameters:

Model	4V110-M5	4V120-M5	4V130C-M5	4V110-06	4V120-06	4V130C-06
			4V130E-M5			4V130E-06
			4V130P-M5			4V130P-06
Fluid	Air (to be filtered by 40 μm filter element)
Acting	internal pilot or external pilot
Port Size	in=out=M5			in=out=1/8''
Orifice Size	4V110-06, 4V120-06: 10.2mm² (Cv=0.6)
	4V130C-06: 8.6mm² (Cv=0.51)
Vlave Type	5 way 2 position		5 way 3 postion	5 way 2 position		5 way 3 position
Operating Pressure	0.15 to 0.8 MPa (21 to 114 psi)
Proof Pressure	1.2MPa (175psi)
Temperature	-20 to +70℃
Body Material	Aluminum Alloy
Max Frequency	5 cycle/sec		3 cycle/sec	5 cycle/sec		3 cycle/sec
Voltages	12VDC, 24VDC, 24VAC, 110VAC, 220VAC

Support and Services:

Solenoid Valve Product Technical Support and Services:
- Troubleshooting assistance for valve performance issues
- Installation guidance and support
- Product maintenance recommendations
- Repair and replacement services for defective valves
- Product training and educational resources

Packing and Shipping:

Product Packaging:
The Solenoid Valve is carefully packaged in a sturdy cardboard box to ensure safe transport and delivery. The valve is securely cushioned with foam padding to prevent any damage during shipping.
Shipping Information:
Once your order is processed, the Solenoid Valve will be shipped via a reliable courier service. You will receive a tracking number to monitor the status of your delivery. Please ensure someone is available to receive the package at the provided shipping address.
