Product Description:
Pulse Jet valve is a type of valve that converts the incoming continuous signal into a pulsed signal through the delay caused by the flow of gas through gas resistance and capacity. The air inlet setup of the right angle pulse jet valve, along with the installation and application of the positioning steel ring, helps to prevent loosening caused by inertial impact and guarantee precise installation positioning.
Even after prolonged use, the stainless steel nut can still ensure easy disassembly and reassembly.
Applications:
Bag filter pulse cleaning system
Function: Control the instantaneous injection of compressed air into the filter bag to remove surface dust.
Applicable equipment:
- Cement plant rotary kiln dust collector
- Steel plant blast furnace gas purification system
- Bag dust removal device for coal-fired power plants
- Dust collection system for chemical/pharmaceutical industry
- Material conveying and pneumatic conveying system
- Used for pulse airflow dredging when pipelines are blocked (such as grain and fly ash conveying pipelines).
2 1/2'' CA62T Goyen Type Dust Collector Pulse Jet Valve
Brando has developed pulse valve and pulse jet valve for reverse pulse jet bag filters, offering precisely engineered valve of market need. Pulse Valve has just one moving part, the Spare diaphragm. The unique springless construction provides fast opening and closing of the valve. The high speed operation besides saving of compressed air,helps to provide shock air wave for dislodging of dust from filter bags. High flow,long life and fast diaphragm action produce reliable and economical operation.
The following is CA62T Goyen Type Pulse Jet Valve; Reference No: CA62T000, CA62T001, CA62T010, CA62T000-300, CA62T000-305, CA62T000-331, CA62T001-300, CA62T001-305, CA62T001-331, CA62T010-300, CA62T010-305. 2 1/2'' inlet and outlet threaded port size; NBR diaphragm; 24V DC, 220V AC (50/60Hz) voltages for you to choose; other voltages can be customized.
| Model No |
CA15T |
CA20T |
CA25T |
CA35T |
CA45T |
CA50T |
CA62T |
CA76T |
| Nonimal size |
φ15 |
φ20 |
φ25 |
φ35 |
φ45 |
φ50 |
φ62 |
φ76 |
| Port Size |
G1/2'' |
G3/4'' |
G1'' |
G1 1/4'' |
G1 1/2'' |
G2'' |
G2 1/2'' |
G3'' |
| Working pressure |
0.3 to 0.8MPa |
| Temp. range |
-5℃ to 55℃ |
| Relative humidity |
≤85% |
| Working |
Compressed clean air |
| medium |
| Voltage |
24VDC, 220VAC |

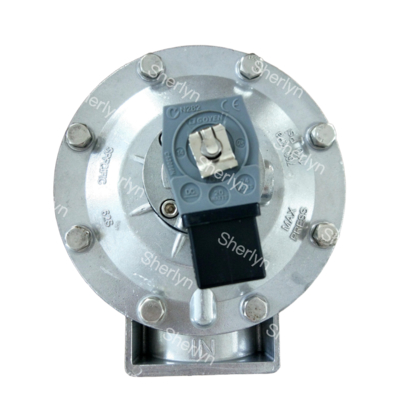

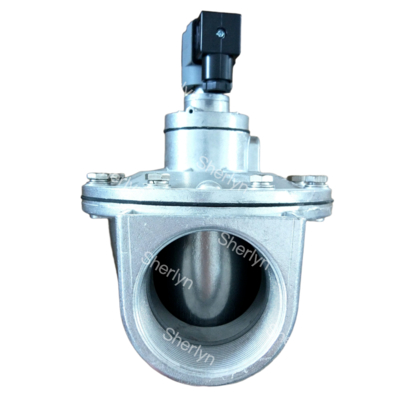

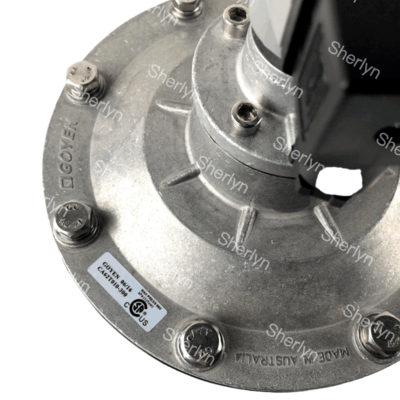

Detail images of Goyen Type Pulse Jet Valves:
Support and Services:
Product Technical Support and Services for Pulse Jet Valves:
Our dedicated technical support team is available to assist with any inquiries related to the installation, operation, and maintenance of our Pulse Jet Valves. We provide comprehensive product documentation, troubleshooting guides, and on-site support if necessary.
Our services also include regular maintenance programs, spare parts availability, and training sessions to ensure the optimal performance of your Pulse Jet Valves.
Packing and Shipping:
Product Packaging and Shipping for Pulse Jet Valves:
The Pulse Jet Valves will be carefully packaged to ensure safe delivery to our customers. Each valve will be wrapped in protective packaging material to prevent any damage during transit. The valves will then be placed in sturdy boxes with ample cushioning to further protect them.
For shipping, we partner with reliable carriers to ensure timely delivery. Customers will receive a tracking number to monitor the status of their shipment. Our team is committed to providing a seamless shipping experience for our valued customers.
