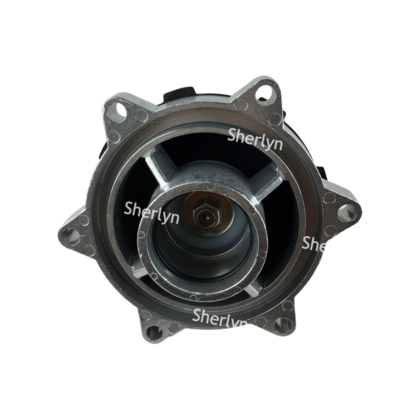

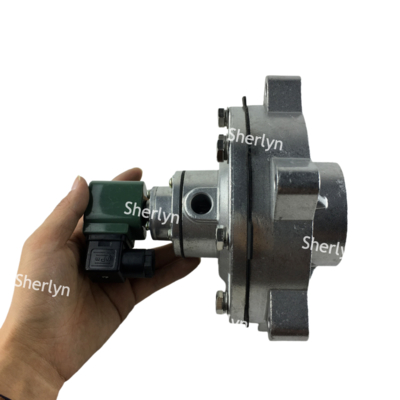

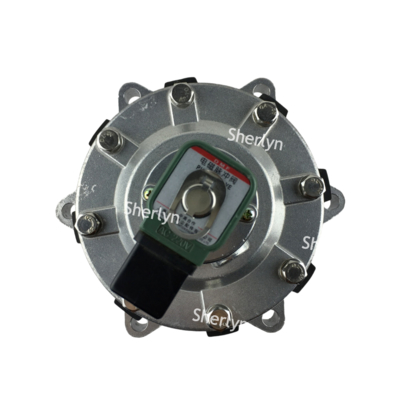

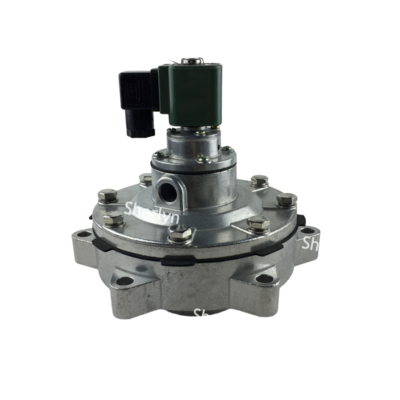

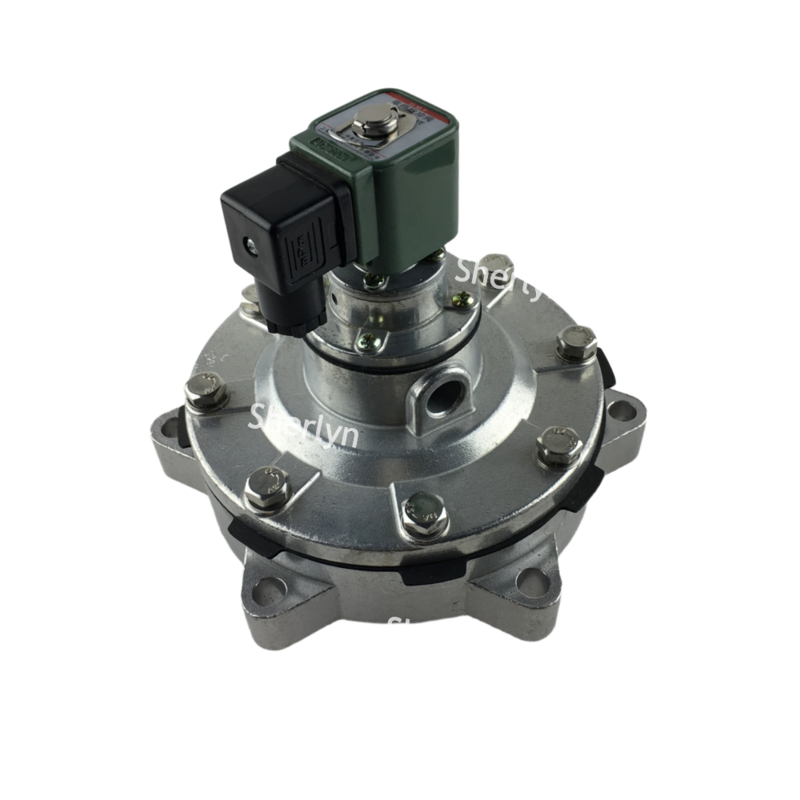

BFEC DMF-Y-50S Embedded Type 2'' Inch Diaphragm Pulse Jet Valve
Solenoid pulse valve pilot-operated solenoid valve:
Working Principle: When the power is turned on, the electromagnetic force opens the pilot hole, and the pressure in the upper chamber rapidly drops around the closing member, forming a pressure difference between the upper part and the lower part. The pressure of the fluid pushes the closing part upward, and the valve i] opens: the spring force opens the pilot hole when the power is turned off. Closing, the inlet pressure quickly bypasses the valve through the bypass hole to form a lower and upper pressure difference. The fluid pressure pushes the closing member downward and closes the valve.
Features: The upper limit of the fluid pressure range can be arbitrarily installed (need to be customized) but must meet the fluid pressure differential conditions
Applications:
Industrial Dust Removal System
Iron and Steel Metallurgy: Used for high-temperature and high dust environments such as sintering heads and blast furnace gas purification, requiring the use of a cooler (temperature ≤ 60 ℃). It is recommended to use a DMF-Z right angle valve or submerged valve.
Cement Manufacturing: Kiln tail dust collector, raw material grinding dust removal, compatible with DMF-Y submerged valve (such as DMF-Y-80), resistant to ambient temperature dust (<80 ℃).
Garbage Incineration: Fluorine rubber (FKM) membrane submerged valves (such as DMF-Y-62S) are required for acid flue gas treatment, which can increase corrosion resistance by 8 times.
Wood Processing/Food Chemical Industry: Sawdust or powder pneumatic conveying scenarios, suitable for straight through valves (DMF-T series), requiring oil-free dry air (oil content<5ppm).
Auxiliary System
Bunker Arch Breaking: The material bridge in the coal powder silo and grain silo is broken by pulse airflow, with a frequency of ≤ 30 times/minute.
Pneumatic Conveying Blockage Removal: Install pulse valves at pipeline blockage points to instantly spray and clear powder materials (such as plastic particles and food grade calcium carbonate).
Technical Data of BFEC Type DMF Series Submerged Pulse Jet Valve:
| Model number |
DMF-Y-25 |
DMF-Y-40S |
DMF-Y-50S |
DMF-Y-62S |
DMF-Y-76S |
DMF-Y-102S |
| Port sizes |
G1'' |
G1 1/2'' |
G2'' |
G2 1/2'' |
G3'' |
G4'' |
| Membrane sizes |
φ96 |
φ112 |
φ160 |
φ188 |
φ202 |
φ255 |
| (φ66 smaller) |
| CV values |
30.53 |
53.47 |
71.47 |
150.85 |
186.66 |
313.09 |
| Blowing area |
8月10日 |
12月16日 |
18-28 |
27-38 |
37-65 |
70-90 |
| (m2) |
| Weight |
0.75 |
1.2 |
2.35 |
3.2 |
4.05 |
5.65 |
| (kg) |
| Environment Temperature |
-25℃ to +80℃ or customized |
| Relative Humidity |
≤85% |
| Working Medium |
Clean Air |
| Protection Class |
IP65 |
| Service Life |
Over one million times |
| Voltage |
DC24V, AC24V, AC110V, AC220V |
Support and Services:
Our Product Technical Support team for Pulse Jet Valves is dedicated to providing assistance with any technical queries or issues you may encounter. Our team of experts is available to help troubleshoot problems, provide guidance on installation and maintenance, and offer solutions to optimize the performance of your valves.
In addition to technical support, we also offer a range of services for Pulse Jet Valves, including maintenance contracts, on-site servicing, and training programs. Our goal is to ensure that your valves operate efficiently and effectively, maximizing their lifespan and performance.
Packing and Shipping:
Product Packaging for Pulse Jet Valves:
The Pulse Jet Valves are carefully packaged in a sturdy cardboard box to ensure safe transportation and delivery.
Shipping Information:
Once your order is processed, the Pulse Jet Valves will be shipped using a reliable courier service. You will receive a tracking number to monitor the status of your delivery.
