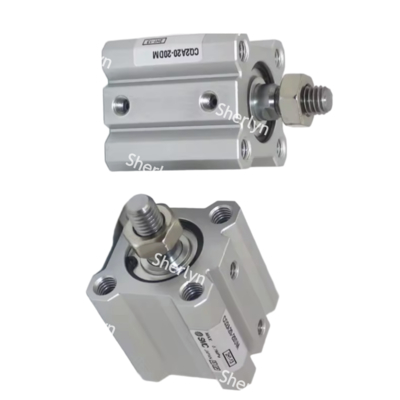

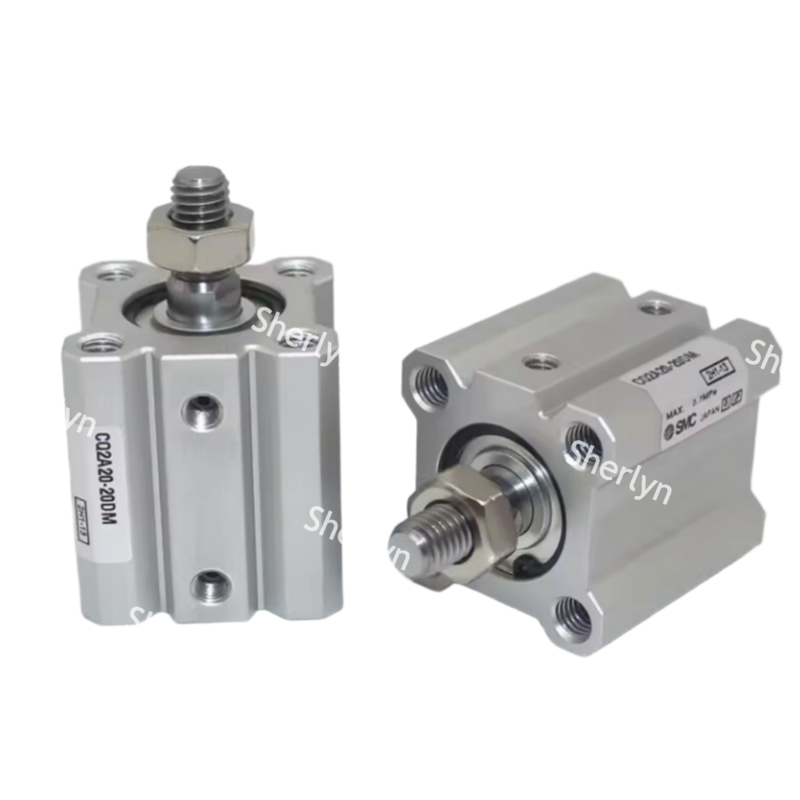

Product Description:
Ultra slim design
Space saving structure: Significantly shortened overall length, with a minimum width of only 7.5mm (SJ2000 valve) to 10mm (SJ3000 valve), suitable for fixtures and automation equipment with limited space.
Lightweight: 5%~13% lighter than the old CQ2, reducing equipment load.
Flexible installation and testing
Four sided magnetic switch slot: Models with a cylinder diameter of ≥ 32mm support four-way installation of magnetic switches (double-sided for Φ 12~Φ 25), enhancing layout flexibility; The switch is embedded in the groove without protruding to avoid interference.
Modular accessories: Standard installation bolts and pole end connectors, optional double earring/foot mount components, eliminating additional procurement.
High compatibility and durability
Sealing and buffering: Nitrile rubber (NBR) seals are suitable for environments ranging from -10 ℃ to 70 ℃; Standard rubber cushion pad (some models) to reduce terminal impact.
Protection level: IP65 protection (stainless steel valve body meets NEMA 4X), resistant to dust and humid environments.
Applications:
Industrial Automation
Positioning and handling: CQ2-Z standard type (cylinder diameter 20-50mm) is used for robotic arm gripper and conveyor belt sorting.
Precision assembly: The rod does not retract (CQ2K) ensures that the components have no rotational errors and is suitable for electronic production lines.
Environmental protection and energy equipment
Dust removal system: Large cylinder diameter CQ2B160 (cylinder diameter 160mm) drives the lifting valve, combined with pulse valve for dust cleaning.
Storage bin control: resistant to lateral load (CQ2 □ S) arch breaking, resistant to lateral pressure of powder materials.
Special environment
Food machinery: Water resistant (CQ2-R/V) and washable, with EPDM seals compatible with sterile environments.
High temperature scenario: Stainless steel valve body+FKM seal (customized) resistant to 120 ℃ instantaneous high temperature.
Support and Services:
Our Product Technical Support and Services for the Piston Pneumatic Cylinder include:
- Comprehensive user manuals and installation guides
- Troubleshooting assistance for any issues or malfunctions
- Expert advice on maintenance and upkeep to ensure optimal performance
- Access to online resources such as FAQs and technical articles
- Warranty coverage and support for any product defects
Packing and Shipping:
Product Name: Piston Pneumatic Cylinder
Description: Our high-quality piston pneumatic cylinder is designed for smooth and efficient operation in various industrial applications.
Specifications:
- Material: Steel
- Max Pressure: 150 PSI
- Bore Size: 2 inches
- Stroke Length: 6 inches

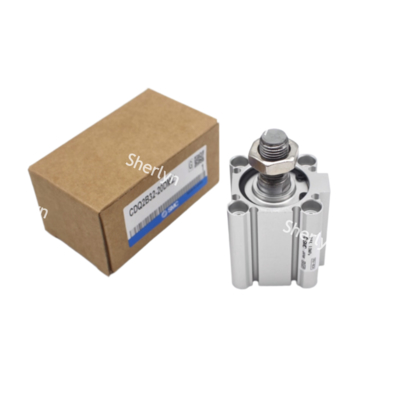

Packaging: Each piston pneumatic cylinder is securely packed in a durable cardboard box to ensure safe transportation.
Shipping: We offer reliable shipping services to ensure prompt delivery of your order. Shipping options include standard ground shipping and expedited shipping for urgent orders.
