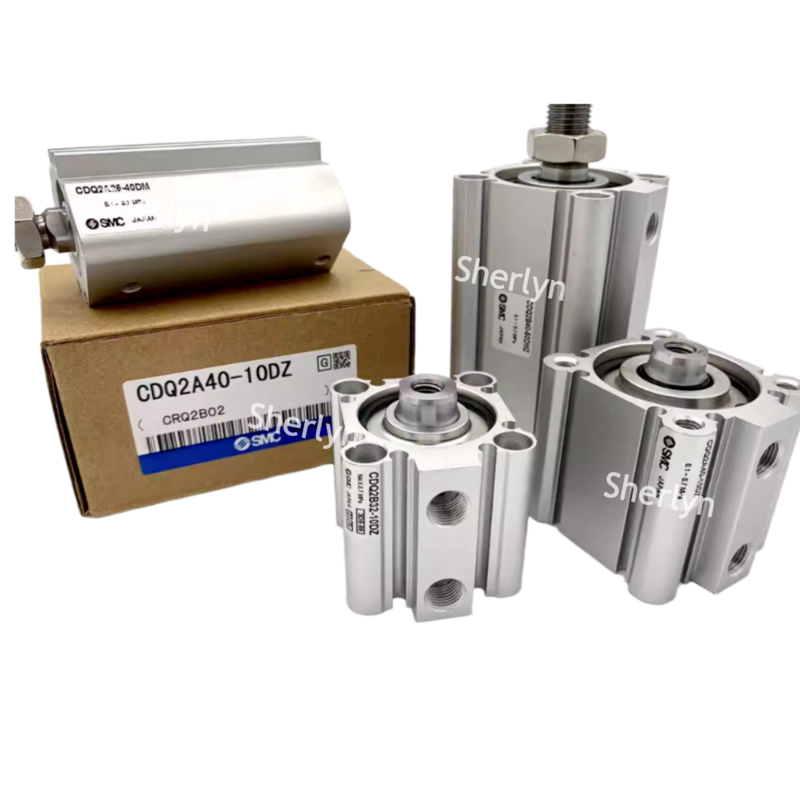

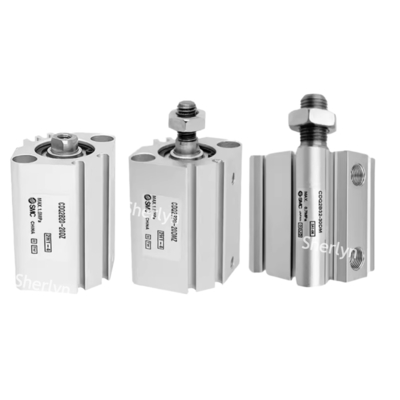

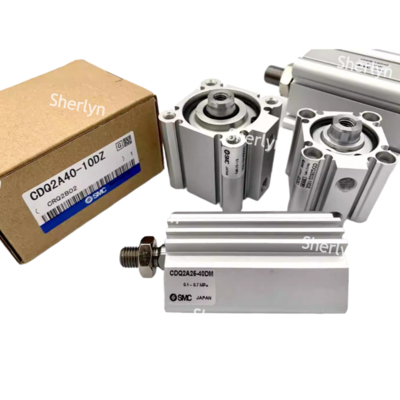

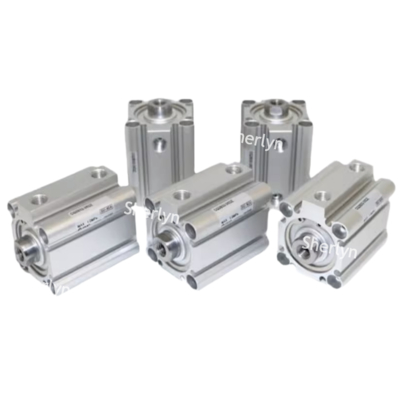

SMC CQ2A12-10D CQ2 Standard Cylinder, 12 Mm Cylinder Bore, 10 Mm L Stroke, Double Acting Cylinder Action, Tapped Both Ends Mounting

Product Description:

Ultra slim design

Space saving structure: significantly shortened overall length, with a minimum width of only 7.5mm (SJ2000 valve) to 10mm (SJ3000 valve), suitable for fixtures and automation equipment with limited space.

Lightweight: 5%~13% lighter than the old CQ2, reducing equipment load.

Flexible installation and testing

Four sided magnetic switch slot: Models with a cylinder diameter of ≥ 32mm support four-way installation of magnetic switches (double-sided for Φ 12~Φ 25), enhancing layout flexibility; The switch is embedded in the groove without protruding to avoid interference.

Modular accessories: Standard installation bolts and pole end connectors, optional double earring/foot mount components, eliminating additional procurement.

High compatibility and durability

Sealing and buffering: Nitrile rubber (NBR) seals are suitable for environments ranging from -10 ℃ to 70 ℃; Standard rubber cushion pad (some models) to reduce terminal impact.

Protection level: IP65 protection (stainless steel valve body meets NEMA 4X), resistant to dust and humid environments.

Applications:

Industrial Automation
Positioning and handling: The CQ2-Z standard type (cylinder diameter 20-50mm) is utilized for robotic arm grippers and conveyor belt sorting.
Precision assembly: The rod does not retract (CQ2K) guarantees that the components are free from rotational errors and is perfect for electronic production lines.

Environmental Protection and Energy Equipment
Dust removal system: The large cylinder diameter CQ2B160 (cylinder diameter 160mm) operates the lifting valve in conjunction with a pulse valve for dust cleaning.
Storage bin control: The resistant to lateral load (CQ2 □ S) is designed to withstand the lateral pressure of powder materials, preventing arch breaking.

Special Environment
Food machinery: The Water resistant (CQ2-R/V) and washable feature, along with EPDM seals that are compatible with sterile environments, make it suitable for use in the food industry.
High temperature scenario: The Stainless steel valve body+FKM seal (customized) is resistant to an instantaneous high temperature of 120°C, making it ideal for high-temperature environments.

Support and Services:

Our Product Technical Support and Services for the Piston Pneumatic Cylinder include:

- Troubleshooting assistance for any operational issues

- Guidance on proper installation and maintenance procedures

- Product training and education for users

- Warranty information and support

- Product customization options
