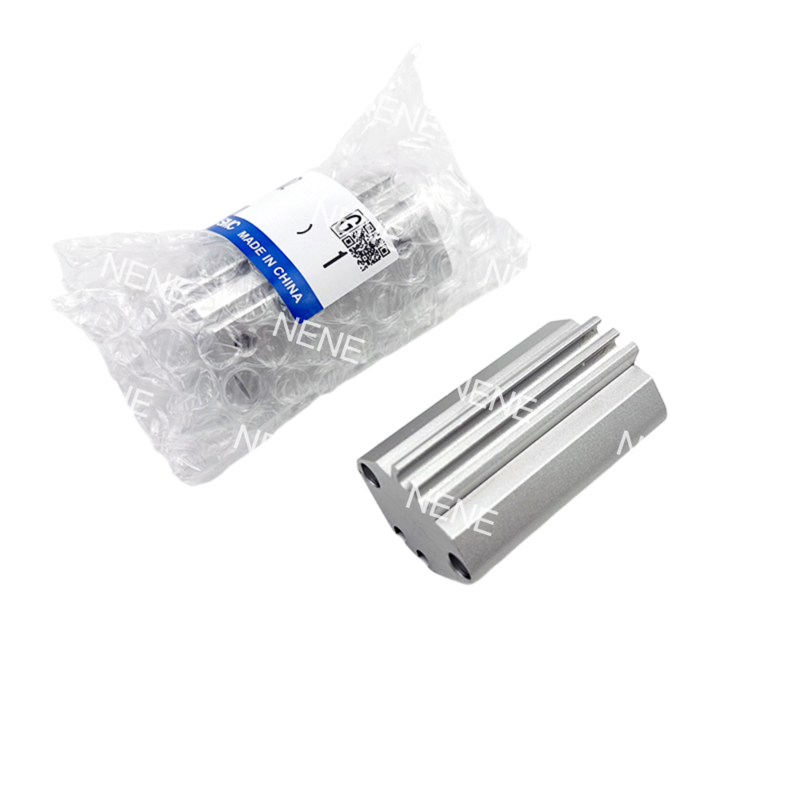

SMC Pneumatic Compact Cylinder CQ2A12-10D 12mm Bore 10mm Stroke CQ2A Series Double Acting

Product Description:

The SMC CQ2A Series ultra-compact cylinders provide precise linear motion in tight spaces for a variety of applications. These double-acting single-rod cylinders have a 12mm bore size and offer stroke options ranging from 5mm to 50mm. Despite their small size, they deliver robust performance with 30% shorter length compared to standard cylinders. The cylinders are made of aerospace-grade aluminum with hard anodization and can operate at a pressure range of 0.05-1.0MPa (7-145 psi), producing a maximum thrust of 90N.

Pre-lubricated seals ensure maintenance-free operation, while the cylinders come with integrated magnetic fields for easy sensor mounting. They are designed to be compatible with SMC's modular accessory system, which includes guides, valves, and mounting brackets for added versatility and convenience.

Features:

Ultra-Compact: The product features a width of 24mm, making it 40% shorter than ISO cylinders with dimensions of 82mm @50mm stroke.

Lightweight: Utilizing a topology-optimized aluminum body, it weighs only 0.15kg @50mm stroke.

Modular Integration: It offers direct mounting options with MXS guides and VQ valves.

Balanced Thrust: The product provides a bidirectional force of 90N±3% @1.0MPa.

High Speed: It operates at 500mm/s with a quick 0.15s response time @50mm stroke.

Adjustable Cushioning: Users have the choice of adding an optional hydraulic damper for 0.043J absorption.

Wide Temp. Option: Equipped with -XB6 seals, the product can operate in temperatures ranging from -40 to 150°C (-40 to 302°F).

Corrosion Resistance: The -XC6 stainless steel kit, including a SUS304 rod, offers protection against corrosive elements.

IP65 Protection: Featuring -XC4 dual wipers, it safeguards against dust and dirt in harsh environments.

4-Side Sensor Slots: The product is designed with compatibility for D-M9N sensors with Φ3.5mm slot.

8 Mounting Styles: Users can choose from A, L, or D-type configurations with pre-loaded screws for easy installation.

Stroke Adjustment: It allows for ±5mm travel modification using the -XC8 module.

Hard Anodized Bore: Boasting a 25μm coating, the product offers 3 times the wear resistance of traditional coatings.

Hard Chrome Plated Rod: With a thickness of 0.02mm, it maintains a friction coefficient of μ≤0.15.

Zero-Leakage Seals: Utilizing the X271 FKM compound, the product ensures minimal leakage at <0.1mL/min under 0.5MPa.

Applications:

Electronics Manufacturing

Micro-Component Handling: 5-15mm short-stroke models enable precision pick-and-place of 0201 SMD components in PCB assembly, achieving ±0.05mm repeatability.

Laser Marking Systems: 20-30mm strokes drive marking heads with position feedback via D-M9N sensors, ensuring alignment accuracy under 0.1mm deviation.

Medical & Laboratory Equipment

Diagnostic Sample Transfer: 35-50mm stroke variants with -XC6 stainless steel kits handle biological samples in analyzers, preventing contamination in FDA-compliant environments.

Reagent Dispensing: Low-pressure operation (0.05MPa) achieves 0.1mL fluid dosing accuracy in IVD instruments using 10mm stroke units.

Compact Automation Cells

Optical Inspection: 40mm stroke cylinders position AOI cameras at 50-200mm/s adjustable speeds, minimizing vibration during high-magnification imaging.

Robotic End-Effectors: Integrated with collaborative robots for lightweight part insertion (25mm stroke, M3 rod threads) under 0.5s cycle times.

Packaging Machinery

High-Speed Cutting: 50mm stroke models actuate blades in film-sealing systems, completing cuts in 0.2s at 1.0MPa with hydraulic cushioning for shock reduction.

Label Alignment: 15mm stroke versions with -DZ mounting ears correct label position deviations ≤0.3mm in pharmaceutical blister packaging lines.

Case Study: A medical device manufacturer reduced machine thickness by 42% using CQ2A12-30DMZ with 4-side sensors, cutting downtime 70% in cartridge loading systems
