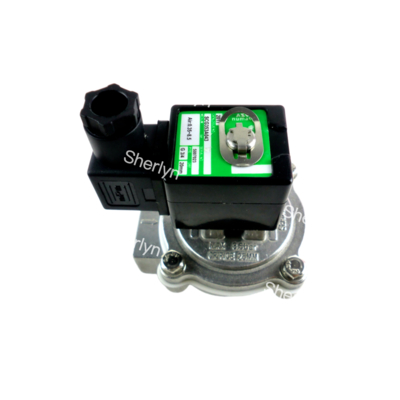

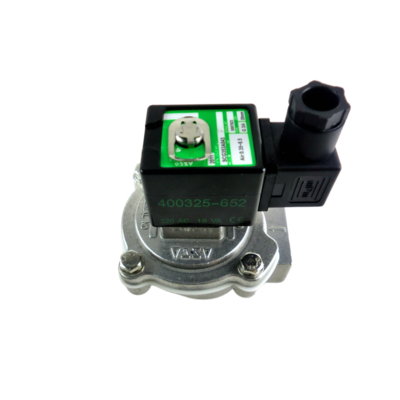

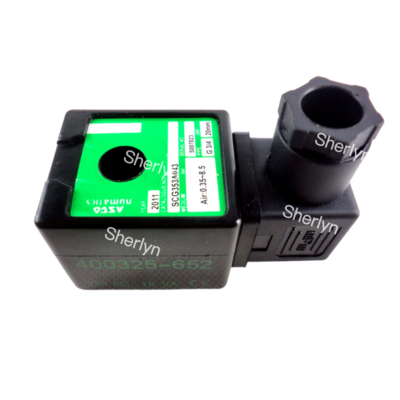

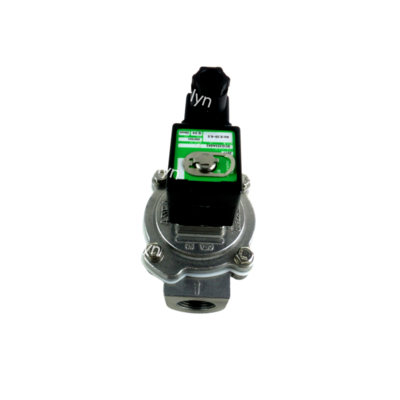

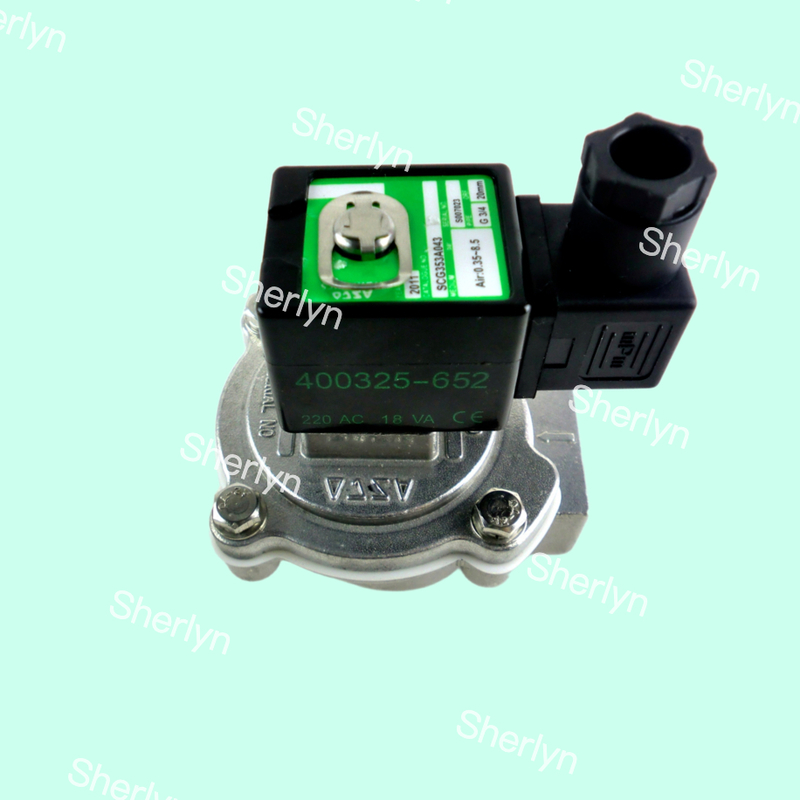

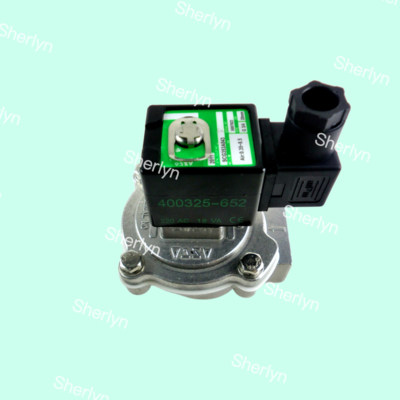

3/4'' Inch SCG353A043 Right Angle Baghouse Filter Diaphragm Valve
These valves are specifically developed for filter cleaning of dust collectors and baghouses in reverse pulse jet systems. Those applications require high peak pressure, high flow rates, long life, and extremely fast valve opening and closing for effective filter cleaning while minimizing compressed air waste. When considering pulse valve characteristics, key attributes sought alike include robust performance, reliability, and ease of use. Today’s more popular pulse valves on the market offer users a simplified design that helps to maximize valve performance, translating into longer system uptimes. For the functional design of a pulse valve, there are multiple connection options, including threaded, dresser, and even a quick-mount option that enables faster, easier, and more secure installation.
Applications:
Dust Collection Systems
Industrial facilities such as raw material crushing, cement grinding, and clinker cooling require efficient dust collection systems for handling high concentration and abrasive dust. Valves used in these systems need to be wear-resistant and reliable. Our 353 series and SCG353 series are ideal choices for such applications.
Flue Gas Purification
Steel metallurgy processes including blast furnace ironmaking and steel rolling generate dust at high temperatures. Our high temperature valves equipped with resistant diaphragms like Viton are designed to handle such conditions. In addition, they are suitable for environments with high-temperature flue gas that may require cooling and explosion-proof certification.
Boiler Flue Gas Treatment
For coal-fired power plants, especially those with bag or electric bag composite dust collectors, our large caliber submerged valves provide efficient cleaning energy for continuous operation. These valves ensure effective operation of the dust collector box over the long term.
Waste Incineration Tail Gas Treatment System
Complex and corrosive flue gas in waste incineration systems requires anti-corrosion valves with features like stainless steel bodies, PTFE coating, and FKM fluororubber diaphragms.
Dust Collection for Food and Pharmaceutical Processes
In food and pharmaceutical industries handling ingredients like flour, sugar, and milk powder, hygiene is crucial. Valves compliant with design principles ensure cleanliness and prevent cross-contamination. These valves meet FDA requirements and are easy to clean.
Sawdust and Wood Processing
Wood processing facilities dealing with sawdust require the reliable 353 series valves for collecting lightweight and fibrous dust effectively. This includes sawmills, furniture factories, and artificial board production sites.
Mineral Dust Collection
In mineral processing and quarrying operations, a robust valve design is essential to withstand high abrasive dust during crushing, screening, and transportation processes. Our valves ensure durability and efficiency in handling mineral dust.
Technical Data:
| Model No |
SCG353A043 |
| Port Size |
G 3/4 Inch |
| Nornimal Size |
Φ20 |
| Working Pressure |
0.3~0.8Mpa |
| Working Temperature |
-5~+55℃ |
| Relative Humidity |
≤85% |
| Working Medium |
Air |
| Protection Class |
IP65 |
| Service Life |
Over 1000000 times |
| Voltage |
AC220V, AC110V, AC24V, DC24V |
Support and Services:
Our Product Technical Support and Services for Pulse Jet Valves include:
- Installation guidance and support
- Troubleshooting assistance for operational issues
- Maintenance recommendations and schedules
- Product training and education for proper usage
- Warranty information and claims processing
Packing and Shipping:
Product Name: Pulse Jet Valves
Description: High-quality pulse jet valves for industrial applications.
Features:
- Durable construction
- High performance
- Easy to install
Package Includes:
- 1 Pulse Jet Valve
- Installation instructions
Shipping Information:
- Shipping method: Standard
- Shipping time: 3-5 business days
- Shipping cost: $10
