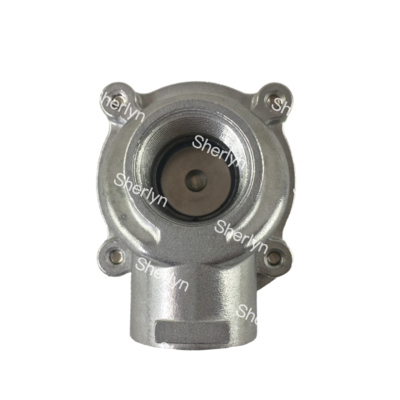

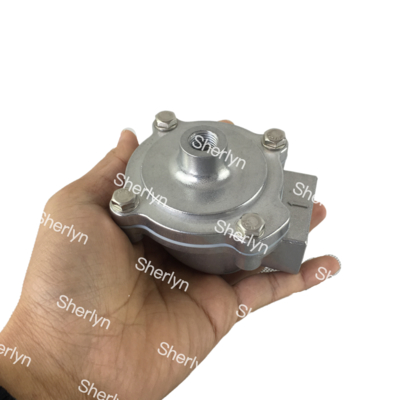

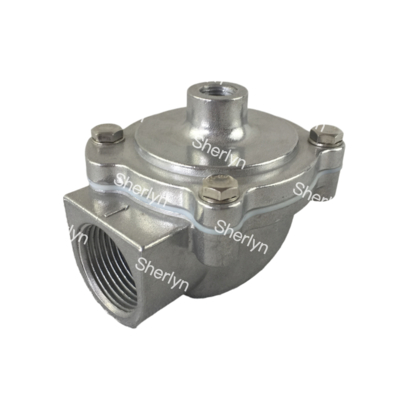

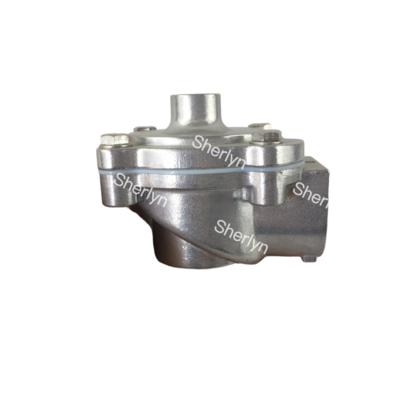

ASCO G353A041 Pulse Valve G3/4 3/4 Inch Pneumatic Dust Removal Pulse Valve Pneumatic Pulse Valve

Product Description:

Angle Body Pulse Valve
Representative series: SCG353A series (a very classic and common model).
Characteristic: The import and export are at a 90 degree right angle. Compact structure, easy installation, can be directly installed on the airbag or connected through joints.
Application: Strong universality, suitable for most medium and low-pressure dust cleaning systems.

Submerged Pulse Valve
Representative series: SCEX series, SCEF series.
Features: The valve body is directly submerged and installed inside the airbag, with only the spray pipe protruding. The advantages are low airflow resistance and high blowing efficiency, especially suitable for high air volume and low-pressure work environments.
Application: Large dust collectors, low-pressure air supply systems, or occasions that require the highest atmospheric flow rate.

In Line Pulse Valve
Characteristic: Import and export are on a straight line. Smooth airflow path with minimal pressure loss.
Application: Suitable for situations where space allows for straight installation.

Common technical advantages of ASCO pulse valves:
Efficient membrane design: using large-diameter membranes to provide powerful blowing force, while opening and closing quickly, saving compressed air consumption. The membrane material can be selected from NBR (nitrile rubber), FKM (fluororubber), etc. to adapt to different temperatures and environments.
Quick response: With a pilot structure, the electromagnetic head only controls the pilot air path, while the main air path is opened by the diaphragm, resulting in an extremely fast overall response speed (in milliseconds).
Long lifespan: Core components such as diaphragms and springs have been optimized for design, with a lifespan of millions of cycles, greatly reducing maintenance costs and downtime.
Low energy consumption: Efficient design means less compressed air is required to complete effective dust cleaning, saving energy.
Diversified options: Provides coils with multiple voltages, explosion-proof certification, and different interface sizes (such as 1-1/2 ", 2", 3 "inch.) to meet the needs of customers worldwide.

Applications:

Dust collection systems are necessary for all dust producing points in various industrial processes such as raw material crushing, raw material grinding, cement grinding, kiln operations, clinker cooling, packaging, and more. Our valves from the 353 series and SCG353 series are specially designed to handle high concentration and highly abrasive dust, ensuring wear-resistance and high reliability.

Flue gas purification is essential in steel metallurgy processes including blast furnace ironmaking, steelmaking in converters/electric furnaces, sintering, coking, raw material handling, and steel rolling. Dust in these processes is often accompanied by high temperatures. Our high temperature valves equipped with special diaphragms like Viton are designed to handle such conditions, including high-temperature flue gas and potential explosive environments that may require explosion-proof certification.

In the power industry, especially in coal-fired power plants, effective boiler flue gas treatment is crucial. This often involves the use of bag or electric bag composite dust collectors requiring large caliber submerged valves. These valves provide strong cleaning energy to ensure the continuous operation of the dust collector systems over the long term.

For waste incineration tail gas treatment systems, where the flue gas composition may be complex and corrosive (acidic gases), anti-corrosion valves are essential. Our valves with features like stainless steel body, PTFE coating, and FKM fluororubber diaphragms are designed to withstand such challenging environments.

In the food and pharmaceutical industries, dust collection is vital during processes involving ingredients like flour, sugar, milk powder, and starch. Valves used in these applications must adhere to hygiene design principles, meet FDA requirements, be easy to clean, and prevent cross-contamination of materials.

For wood processing sawmills, furniture factories, and artificial board production facilities where sawdust and dust are generated, our standard 353 series valves are ideal. They are designed to handle lightweight, fibrous dust efficiently.

Finally, in mining and quarrying operations where mineral dust is generated during crushing, screening, and transportation, robust and durable valve designs are essential to cope with high abrasive dust effectively.

Support and Services:

The Product Technical Support and Services for the Pulse Jet Valves product include:

- Comprehensive troubleshooting for any technical issues

- Assistance with installation and setup

- Guidance on maintenance and care to ensure optimal performance

- Product training and educational resources

- Warranty information and support

Packing and Shipping:

Product Packaging:

The Pulse Jet Valves are carefully packed in sturdy cardboard boxes with ample cushioning to ensure they arrive safely at their destination. Each valve is individually wrapped in protective packaging to prevent any damage during transit.

Shipping Information:

We offer reliable and efficient shipping services for the Pulse Jet Valves product. Orders are processed promptly, and customers can choose from various shipping options to suit their needs. Tracking information will be provided so you can monitor the delivery status of your order.
