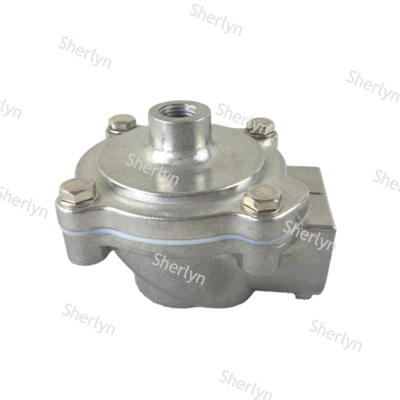

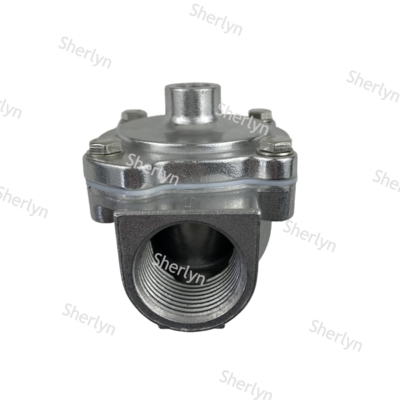

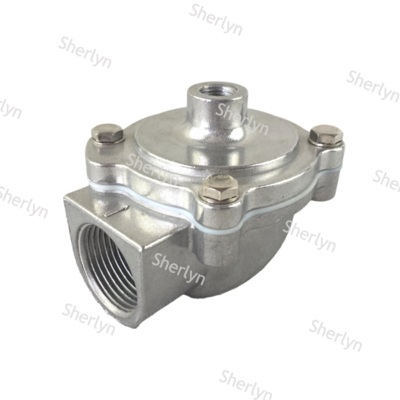

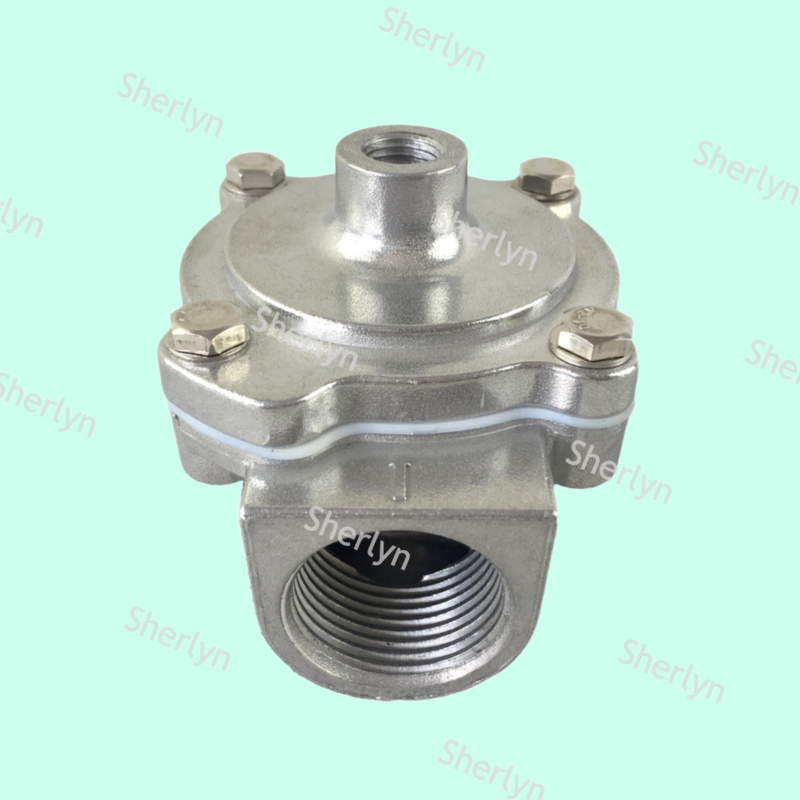

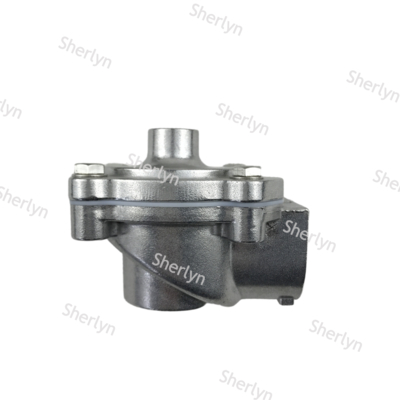

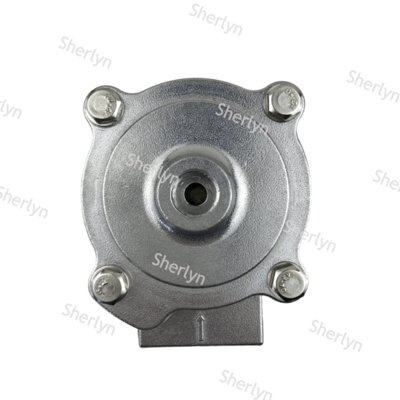

ASCO G353A042 1-inch Pneumatic Pulse Valve Bag Dust Removal Valve Dust Cleaning Control Switch

Product Description:

Representative series: SCG353A series (a very classic and common model).

Characteristic: The import and export are at a 90 degree right angle. Compact structure, easy installation, can be directly installed on the airbag or connected through joints.

Application: Strong universality, suitable for most medium and low pressure dust cleaning systems.

Representative series: SCEX series, SCEF series.

Features: The valve body is directly submerged and installed inside the airbag, with only the spray pipe protruding. The advantages are low airflow resistance and high blowing efficiency, especially suitable for high air volume and low-pressure work environments.

Application: Large dust collectors, low-pressure air supply systems, or occasions that require the highest atmospheric flow rate.

Characteristic: Import and export are on a straight line. Smooth airflow path with minimal pressure loss.

Application: Suitable for situations where space allows for straight installation.

• Efficient membrane design: Using large-diameter membranes to provide powerful blowing force, while opening and closing quickly, saving compressed air consumption. The membrane material can be selected from NBR (nitrile rubber), FKM (fluororubber), etc. to adapt to different temperatures and environments.
• Quick response: With a pilot structure, the electromagnetic head only controls the pilot air path, while the main air path is opened by the diaphragm, resulting in an extremely fast overall response speed (in milliseconds).
• Long lifespan: Core components such as diaphragms and springs have been optimized for design, with a lifespan of millions of cycles, greatly reducing maintenance costs and downtime.
• Low energy consumption: Efficient design means less compressed air is required to complete effective dust cleaning, saving energy.
• Diversified options: Provides coils with multiple voltages, explosion-proof certification, and different interface sizes (such as 1-1/2", 2", 3" inch.) to meet the needs of customers worldwide.

Applications:

Dust collection systems are essential for all dust-producing points in various industrial processes, including raw material crushing, raw material grinding, cement grinding, kiln operations, and packaging machines. The valves utilized in these systems must be wear-resistant and highly reliable to handle high concentrations of abrasive dust. Popular series for these applications include the 353 series and SCG353 series.

Flue gas purification is crucial in steel metallurgy processes such as blast furnace ironmaking, steelmaking, sintering, coking, and steel rolling. Due to the high temperatures involved, specialized high-temperature valves equipped with heat-resistant diaphragms like Viton are used. These valves are designed to withstand extreme temperatures and potential explosive environments, often requiring explosion-proof certification.

Boiler flue gas treatment in coal-fired power plants within the power industry typically involves the use of bag or electric bag composite dust collectors. Large caliber submerged valves are essential for providing efficient cleaning energy on dust collector boxes to ensure continuous operation over long periods.

Waste incineration tail gas treatment systems deal with complex and potentially corrosive flue gas compositions. To combat corrosion, anti-corrosion valves with features such as stainless steel bodies, PTFE coatings, and FKM fluororubber diaphragms are utilized. These features help protect the valves from acidic gases and ensure longevity in harsh environments.

In food and pharmaceutical industries, dust collection is required during processes handling ingredients like flour, sugar, milk powder, and starch. Valves used in such applications must adhere to hygiene design principles, meet FDA requirements for material safety, facilitate easy cleaning, and prevent cross-contamination of materials.

For wood processing sawmills, furniture factories, and artificial board production facilities, the collection of sawdust and dust is critical. Standard series like the 353 series are commonly used to handle lightweight, fibrous dust efficiently.

Mineral dust generated during mineral crushing, screening, and transportation processes in quarrying operations requires sturdy and durable valve designs to withstand high levels of abrasive dust. These valves are crucial components in ensuring efficient dust collection and maintenance of operational efficiency in such environments.

Support and Services:

Our product technical support and services for the Pulse Jet Valves include on-site troubleshooting, remote technical assistance, maintenance training, and spare parts availability. Our team of experts is dedicated to ensuring optimal performance and efficiency of your pulse jet valve system. Contact us for any technical queries or assistance you may require.

Packing and Shipping:

Product Packaging:

The Pulse Jet Valves are carefully packaged in sturdy cardboard boxes to ensure safe transportation and delivery. Each valve is individually wrapped in protective material to prevent any damage during transit.

Shipping Information:

Orders are typically processed within 1-2 business days. We offer various shipping options including standard, expedited, and express delivery. Shipping costs will be calculated at checkout based on the delivery location and chosen shipping method.
