Product Description:

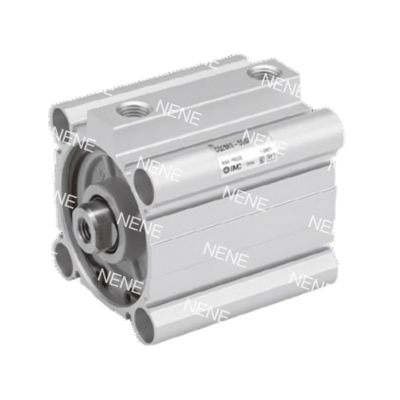

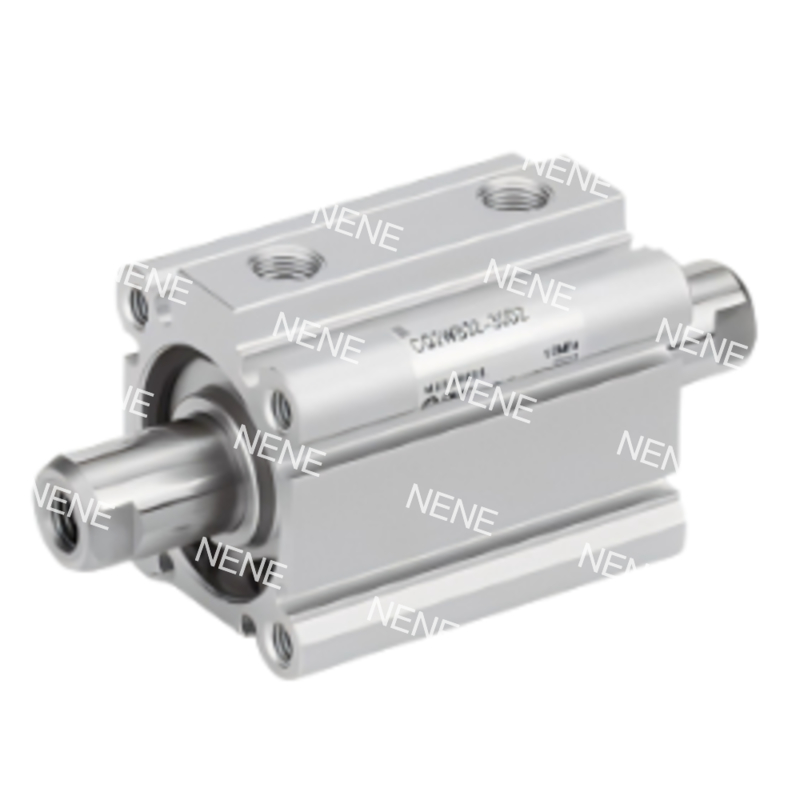

The SMC CQ2A Series ultra-compact cylinders offer precise linear motion in applications with limited space. These cylinders have a 12mm bore size and come with stroke options ranging from 5mm to 50mm. Despite their compact size, they provide robust performance, being 30% shorter than standard cylinders. The cylinders are made from aerospace-grade aluminum with hard anodization and can operate at pressure ranging from 0.05 to 1.0MPa (7 to 145 psi) to produce a maximum thrust of 90N.
Pre-lubricated seals in the cylinders ensure maintenance-free operation, while they also feature integrated magnetic fields that support sensor mounting. These cylinders are designed to be compatible with SMC's modular accessory system, which includes guides, valves, and mounting brackets, offering flexibility and ease of integration into various applications.
Features:
1. Space-Optimized Design
Ultra-Compact: 24mm width, 40% shorter than ISO cylinders (e.g., 82mm @50mm stroke)
Lightweight: Topology-optimized aluminum body (0.15kg @50mm stroke)
Modular Integration: Direct mounting with MXS guides/VQ valves
2. Precision Performance
Balanced Thrust: 90N±3% bidirectional force @1.0MPa
High Speed: 500mm/s operation, 0.15s response time @50mm stroke
Adjustable Cushioning: Optional hydraulic damper (0.043J absorption)
3. Enhanced Durability
Wide Temp. Option: -XB6 seals for -40~150°C (-40~302°F) operation
Corrosion Resistance: -XC6 stainless steel kit (SUS304 rod)
IP65 Protection: -XC4 dual wipers for dust/dirt environments
4. Smart Mounting
4-Side Sensor Slots: Compatible with D-M9N sensors (Φ3.5mm slot)
8 Mounting Styles: Pre-loaded screws for A/L/D-type configurations
Stroke Adjustment: ±5mm travel modification with -XC8 module
5. Advanced Engineering
Hard Anodized Bore: 25μm coating, 3× wear resistance
Hard Chrome Plated Rod: 0.02mm thickness, μ≤0.15 friction coefficient
Zero-Leakage Seals: X271 FKM compound, <0.1mL/min leakage @0.5MPa

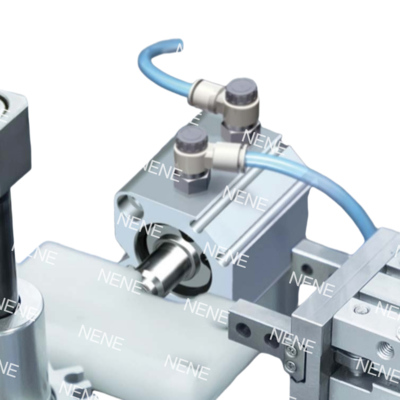

Applications:
Diagnostic Sample Transfer: 35-50mm stroke variants with -XC6 stainless steel kits handle biological samples in analyzers, preventing contamination in FDA-compliant environments.
Reagent Dispensing: Low-pressure operation (0.05MPa) achieves 0.1mL fluid dosing accuracy in IVD instruments using 10mm stroke units.
Compact Automation Cells: Optical Inspection: 40mm stroke cylinders position AOI cameras at 50-200mm/s adjustable speeds, minimizing vibration during high-magnification imaging.
Robotic End-Effectors: Integrated with collaborative robots for lightweight part insertion (25mm stroke, M3 rod threads) under 0.5s cycle times.
Packaging Machinery: High-Speed Cutting: 50mm stroke models actuate blades in film-sealing systems, completing cuts in 0.2s at 1.0MPa with hydraulic cushioning for shock reduction.
Label Alignment: 15mm stroke versions with -DZ mounting ears correct label position deviations ≤0.3mm in pharmaceutical blister packaging lines.
Case Study: A medical device manufacturer reduced machine thickness by 42% using CQ2A12-30DMZ with 4-side sensors, cutting downtime 70% in cartridge loading systems.
