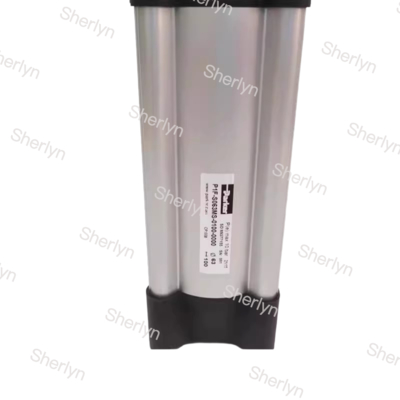

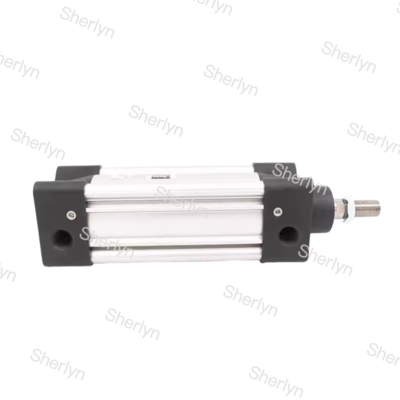

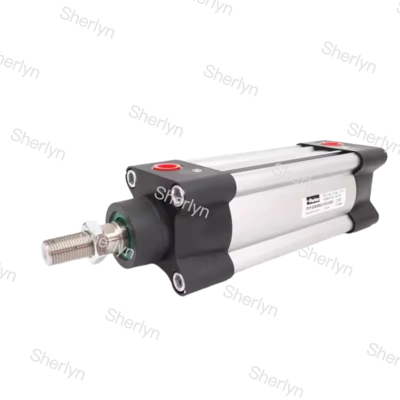

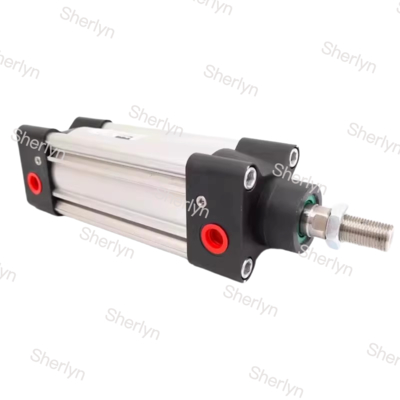

P1F-S032MC-0025-0000 PARKER Cylinder P1F Series 25 Stroke 32 Bore

Product Description:

The PARKER P1F Series Cylinders

Main Technical Features and Design Highlights:

• Standard Compliance and Design: The P1F series adheres to the ISO 15552 standard, covering cylinder diameters from Ø 32mm to Ø 125mm. Its sleek contour design and natural appearance set it apart. The cylinder features aluminum sandblasted front and rear end caps, stainless steel piston rods (DIN X8 CrNiS 18-9), as well as pneumatic buffers and magnetic pistons for easy position detection.

Core Technological Advantages:

• Sealing Technology: Utilizing Parker Pr ä difa's advanced sealing technology, the cylinder offers multiple sealing material options to suit diverse application needs.
• Buffer Capability: The cylinder includes adjustable pneumatic buffering as standard, effectively reducing impact at the stroke end, enabling smooth braking, noise reduction, and lifespan extension.

Rich Options:

• Various Piston Rod Materials: Choose from hard chrome-plated carbon steel or stainless steel.
• Dust Seal Varieties: Options include standard seals, FKM, and Polon®, alongside metal dust scraper rings.
• Installation Accessories and Sensors: The P1F series offers a range of installation accessories and sensors like the P8S series installation parts and CPS sensors with IO Link functionality.

Applications:

The PARKER P1F series cylinders , known for their sturdy construction and diverse configurations, are well-suited for various challenging industrial settings:

Within automated production facilities, the P1F series cylinders are frequently utilized to push objects, accurately position (stop/hold/advance), and manage flow separation and merging activities (switching lanes, directions) along the production line.

In industries like machine tool machining and vehicle assembly, these cylinders are employed to securely clamp workpieces or components, ensuring stability and safety during machining or assembly processes.

Within the packaging sector, these cylinders can execute push/pull actions for sorting, conveying, and packaging tasks involving various items.

• Food and Pharmaceutical Industry: optional Polon/UHMW-PE material sealing and dust removal rings that adhere to FDA regulations, suitable for areas requiring frequent cleaning or preventing lubricant contamination (e.g., food industry zones 2 and 3)
• High and Low Temperature Scenarios: High temperature models (-10°C to +150°C) for baking equipment, while low temperature models (-40°C to +80°C) are fitting for cold storage, refrigerated transportation, or outdoor cold settings.
• Adverse Working Conditions: To tackle challenges in sectors like wood processing and cement, where hard abrasives such as resin, ice, cement, and sugar crystals can accumulate on the piston rod, a combination of metal dust scraper rings and hard chrome-plated piston rods are available to prevent damage and lengthen service life.
• Potential Explosive Environment: Certain models in the series offer ATEX certified versions (temperature limit -20°C to +60°C), permitting their use in certified potentially explosive environments.

Support and Services:

Our company provides comprehensive Product Technical Support and Services for the Piston Pneumatic Cylinder product. Our team of experts is available to assist you with any product-related inquiries, troubleshooting, and technical guidance. Whether you need assistance with installation, maintenance, or repair, we are here to help.

Additionally, we offer training programs and resources to ensure that you are fully equipped to utilize the Piston Pneumatic Cylinder product effectively. Our goal is to provide exceptional support to our customers and ensure the optimal performance of our products.

Packing and Shipping:

Product Name: Piston Pneumatic Cylinder

Description: High-quality pneumatic cylinder with a piston design for efficient performance.

Package Includes: 1 Piston Pneumatic Cylinder

Package Dimensions: 10 x 5 x 5 inches

Shipping Method: Standard Shipping
