Product Description:
Main Technical Features and Design Highlights

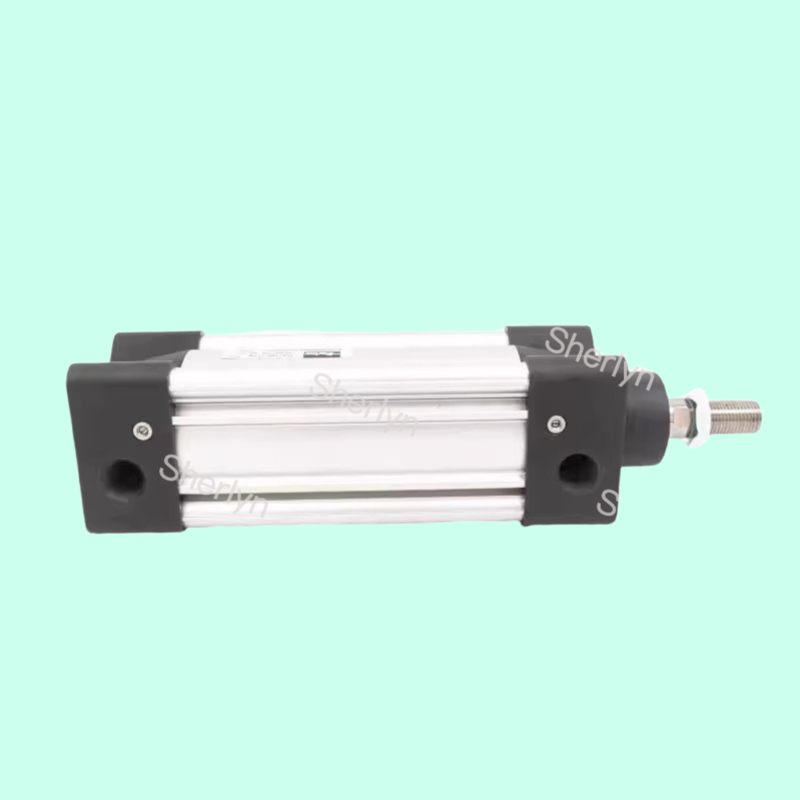

The PARKER P1F series cylinders are characterized by the following key features:
- Standard Compliance and Design : The P1F series conforms to the ISO 15552 standard, with cylinder diameters ranging from Ø 32mm to Ø 125mm. The cylinders feature a smooth contour design and a natural appearance. The front and rear end caps are made of aluminum and sandblasted. The piston rods are crafted from stainless steel, specifically austenitic stainless steel DIN X8 CrNiS 18-9. Additionally, the cylinders include pneumatic buffers and magnetic pistons for easy position detection.
Core Technological Advantages
- Sealing Technology : The cylinders utilize Parker Prädifa's advanced sealing technology, offering a choice of multiple sealing materials to meet diverse application requirements.
- Buffer Capability : Featuring adjustable pneumatic buffering as a standard feature, the cylinder effectively reduces impact at the end of the stroke, ensuring smooth braking, reduced noise levels, and extended lifespan.
- Rich Options : The P1F series provides a range of piston rod materials, including hard chrome plated carbon steel or stainless steel options. Various dust seals are available, such as standard, FKM, and Polon. The cylinders also offer options like metal dust scraper rings, installation accessories, and sensors like the P8S series installation parts and CPS sensors with IO Link function.
Applications:
The PARKER P1F series cylinders, known for their durable design and wide range of options, are versatile enough to thrive in numerous challenging industrial settings:
Factory Automation and Material Handling: The P1F series cylinders are frequently utilized in automated production lines for tasks such as pushing objects, precise positioning (stopping/holding/advancing), and controlling flow separation and merging (such as changing lanes or directions) along the assembly line.
Clamping and Fixing: Industries like machine tool machining and vehicle assembly benefit from using these cylinders to securely clamp workpieces or components, ensuring stability and safety during machining or assembly processes.
Packaging Machinery: Within the packaging industry, these cylinders excel in performing push/pull actions for sorting, conveying, and packaging operations of items.
Special Environments:
- Food and Pharmaceutical Industry: For environments like the food and pharmaceutical industry, optional Polon/UHMW-PE material sealing and dust removal rings are available to meet FDA requirements. These are ideal for areas that need frequent cleaning or must avoid lubricant contamination, especially in food industry zones 2 and 3.
- High Temperature and Low Temperature Scenarios: High temperature models (-10 °C to +150 °C) are suitable for baking equipment, while low temperature models (-40 °C to +80 °C) are perfect for cold storage, refrigerated transportation, or outdoor cold environments.
- Adverse Working Conditions: For challenging environments like the wood processing and cement industries where hard abrasives such as resin, ice, cement, and sugar crystals tend to accumulate on the piston rod, a combination of metal dust scraper rings and hard chrome plated piston rods can be chosen to prevent damage effectively and prolong the service life of the cylinders.
- Potential Explosive Environment: Certain models in the series offer ATEX certified versions (with a temperature limit of -20 °C to +60 °C) that can be used in certified potentially explosive environments.
Support and Services:
Our company offers comprehensive Product Technical Support and Services for the Piston Pneumatic Cylinder product. Our team of experts is available to assist you with any technical inquiries, troubleshooting, and maintenance advice related to the product.
Packing and Shipping:
Product: Piston Pneumatic Cylinder
Description: Our high-quality piston pneumatic cylinder is designed for smooth and reliable operation in various industrial applications.
Package Contents: - 1 x Piston Pneumatic Cylinder - Instruction Manual
Shipping Information: - Shipping Method: Standard Shipping - Estimated Delivery Time: 5-7 business days
