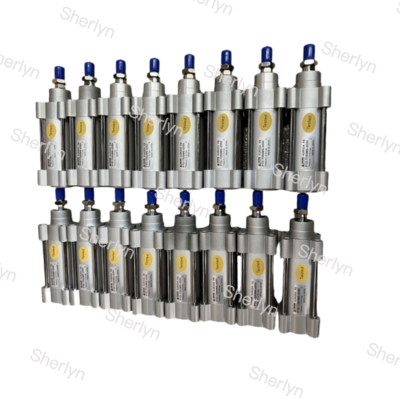

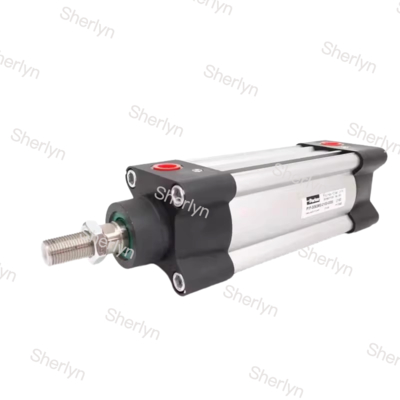

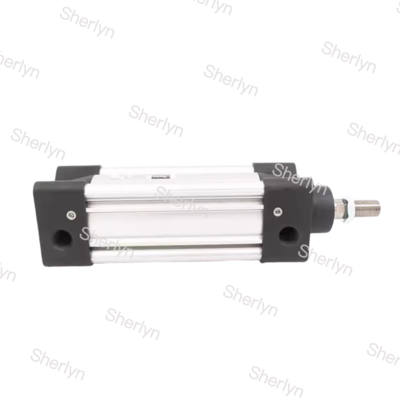

P1F Series PARKER ISO15552 P1F-S032MC-0075-0000 Double Acting Air Cylinder Automation Components

Product Description:

The main technical features and design highlights of the PARKER P1F series cylinders include:

Standard compliance and design: The P1F series follows the ISO 15552 standard (corresponding to the revoked ISO 6431, etc.), with cylinder diameters ranging from Ø 32mm to Ø 125mm. Its smooth contour design and natural appearance are its distinctive features. The cylinder adopts aluminum sandblasted front and rear end caps, stainless steel piston rods (standard material is austenitic stainless steel DIN X8 CrNiS 18-9), and comes standard with pneumatic buffers and magnetic pistons (easy to use sensors for position detection).

Core technological advantages:

• Sealing technology: Adopting Parker Pr ä difa's mature sealing technology. Multiple sealing materials can be selected according to different application requirements.
• Buffer capability: The cylinder comes standard with adjustable pneumatic buffering, which can effectively reduce the impact at the end of the stroke, smooth braking, reduce noise, and extend lifespan.

Rich options: Provides multiple piston rod materials (such as hard chrome plated carbon steel or stainless steel) and various types of dust seals (including standard, FKM, Polon) ®, Metal dust scraper ring, as well as a variety of installation accessories and sensors (such as P8S series installation parts and CPS sensors with IO Link function).

Applications:

The PARKER P1F series cylinders, with their robust design and diverse options, can adapt to many demanding industrial environments:

Factory Automation and Material Handling: In automated production lines, the P1F series cylinders are commonly used to push objects, accurately position (stop/hold/advance), and control flow separation and merging (changing lanes, directions) on the assembly line.

Clamping and fixing: In fields such as machine tool machining and vehicle assembly, it can be used to clamp workpieces or components, ensuring stability and safety during the machining or assembly process.

Packaging Machinery: In the packaging industry, these cylinders can perform push/pull actions for sorting, conveying, and packaging operations of items.

Special environment:

Food and pharmaceutical industry: optional Polon/UHMW-PE material sealing and dust removal rings that meet FDA requirements, suitable for areas that require frequent cleaning or avoid lubricant contamination (such as food industry zones 2 and 3)

High temperature and low temperature scenarios: High temperature models (-10 ° C to+150 ° C) can be used for baking equipment, while low temperature models (-40 ° C to+80 ° C) are suitable for cold storage, refrigerated transportation, or outdoor cold environments.

Adverse working conditions: In the face of situations such as wood processing and cement industry where hard abrasives such as resin, ice, cement, and sugar crystals are prone to accumulate on the piston rod, a combination of metal dust scraper rings and hard chrome plated piston rods can be selected to effectively prevent damage and extend the service life.

Potential explosive environment: Some models in the series offer ATEX certified versions (temperature limit -20 ° C to+60 ° C), which can be used in certified potential explosive environments.

 Order Codes:
