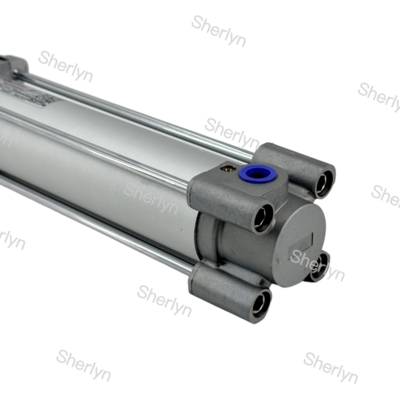

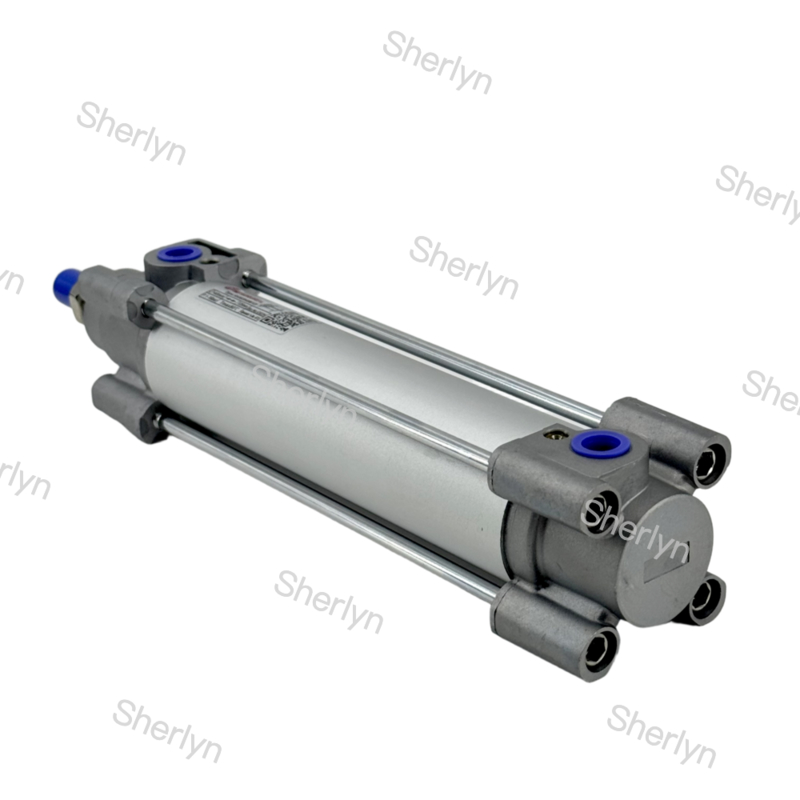

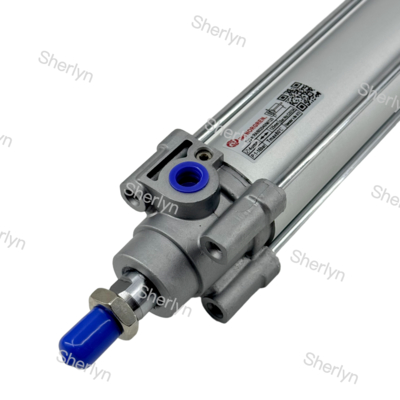

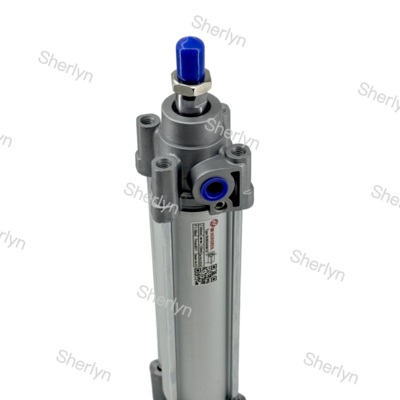

Double Acting Norgren Piston Pneumatic Cylinder RA/802040/M/75

Product Description:

The NORGREN RA series cylinders comply with the ISO 15552 standard, ensuring excellent interchangeability and standardized design.

Structural Design and Materials:
The RA series cylinders typically feature anodized aluminum alloy cylinder barrels and end caps, offering strong corrosion resistance and suitability for challenging environments. The piston rod is commonly crafted from stainless steel, like martensitic or austenitic stainless steel, providing both wear and corrosion resistance. Certain models utilize seals made of polyurethane (PUR) or nitrile rubber (NBR) to prevent leakage and guarantee consistent performance.

Working Principle and Performance:
This series predominantly consists of double-acting cylinders, enabling the extension and retraction movement of the piston rod by gas supply alternation from both ends. This design provides propulsion in two directions. The operational pressure range is generally broad, typically spanning from 1 bar to 16 bar (slightly lower for some larger bore models), enabling dependable functioning under both low and high pressure circumstances. The working temperature range typically falls between -20 °C to +80 °C (with slight variations possible for specific models or cylinder diameters), enabling operation in numerous adverse environmental conditions. Many models feature adjustable pneumatic buffers, such as the adaptive buffer system ACS, as standard, helping to absorb end-of-stroke impacts, safeguard the cylinder, and minimize noise.

Applications:

The NORGREN RA series cylinders adhere to the ISO 15552 standard, ensuring they possess excellent interchangeability and a standardized design.

The RA series cylinders typically feature anodized aluminum alloy cylinder barrels and end caps, offering superior corrosion resistance for operation in challenging environments. The piston rod is commonly crafted from stainless steel, like martensitic or austenitic stainless steel, known for its wear and corrosion resistance. Seals in some models utilize polyurethane (PUR) or nitrile rubber (NBR) to prevent leakage and maintain consistent performance.

Due to their robustness and reliability, NORGREN RA series cylinders are extensively employed in various industrial sectors for automation equipment.

• Industrial Automation and Robotics: Widely used in automated machinery for actions such as pushing, pulling, clamping, lifting, and positioning, offering precision control in robot applications.
• Material Handling and Conveying Systems: Employed in conveyor systems, assembly lines, and packaging machinery for sorting, pushing, blocking, and positioning workpieces.
• Automotive and Aerospace Manufacturing: Utilized in assembly, testing fixtures, and various automation processes in automotive and aerospace engineering.

• Process Industry: Utilized in the oil and gas, chemical processing, and pharmaceutical industries due to their corrosion resistance and reliability.
• Food and Beverage Processing: Attention must be given to specific media and cleaning requirements in this industry.
• HVAC Systems: Control of dampers or valves in Heating, Ventilation, and Air Conditioning (HVAC) systems.

Support and Services:

Our company provides comprehensive Product Technical Support and Services for the Piston Pneumatic Cylinder product. Our team of experts is dedicated to assisting customers with any technical inquiries, troubleshooting issues, and providing guidance on product usage and maintenance.

Our services include product training, on-site assistance, remote technical support, and access to product documentation and resources. We are committed to ensuring that our customers have a positive experience with our Piston Pneumatic Cylinder product and are able to maximize its performance and durability.

Packing and Shipping:

Product Packaging:

The Piston Pneumatic Cylinder will be carefully packaged in a sturdy cardboard box to ensure safe transportation. It will be securely cushioned with bubble wrap or foam to prevent any damages during shipping.

Shipping Information:

We offer fast and reliable shipping services for the Piston Pneumatic Cylinder. Once your order is confirmed, we will process and ship it within 1-2 business days. You will receive a tracking number to monitor the delivery status of your package.
