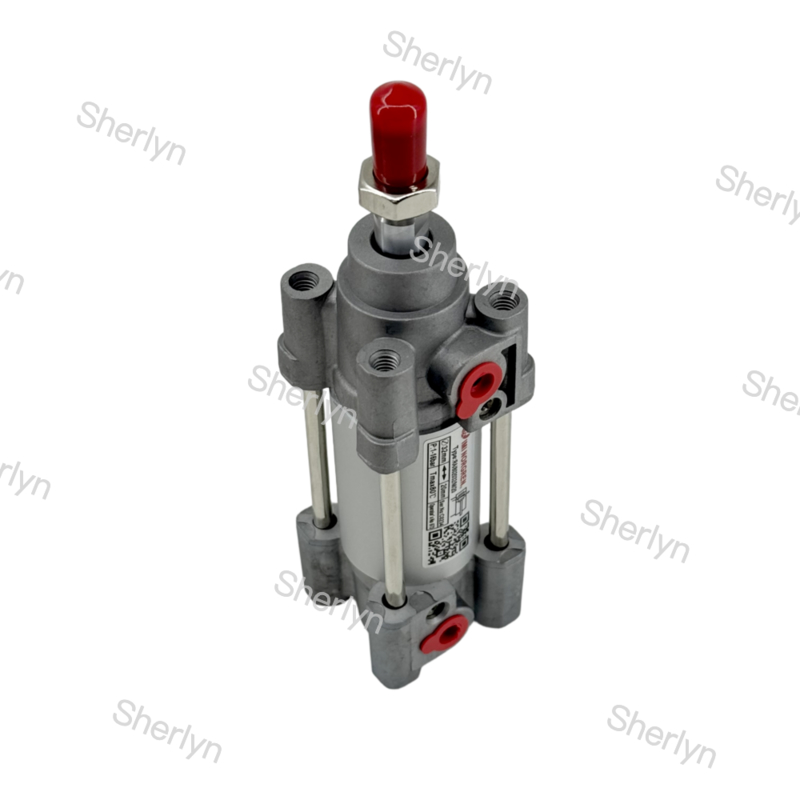

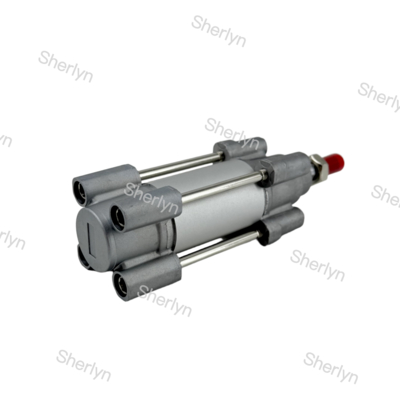

Norgren Cylinder RA/802032/M/25 Double Acting Cylinder 32mm Diameter 25mm Stroke

Product Description:

The NORGREN RA series cylinders adhere to the ISO 15552 standard, ensuring excellent interchangeability and a standardized design.

Structural design and materials:
The RA series cylinders typically feature anodized aluminum alloy cylinder barrels and end caps, offering strong corrosion resistance and suitability for challenging environments. The piston rod is commonly crafted from stainless steel (like martensitic or austenitic stainless steel) for durability and corrosion resistance. Seals in some models are made of polyurethane (PUR) or nitrile rubber (NBR) to prevent leaks and maintain consistent performance.

Working principle and performance:
This series primarily functions as a double-acting type, enabling the extension and retraction of the piston rod by supplying gas alternately from both ends to generate driving force in two directions. The working pressure range is typically broad, generally between 1 bar and 16 bar (with some larger bore models potentially slightly lower), ensuring reliable operation under both low and high pressure conditions. The working temperature range typically spans -20 °C to +80 °C (with potential slight variations in specific models or cylinder diameters), capable of handling a variety of harsh environmental conditions. Many models come equipped with adjustable pneumatic buffers (such as the adaptive buffer system ACS) as standard, effectively absorbing impact at the end of the stroke, safeguarding the cylinder, and minimizing noise.

Applications:

The NORGREN RA series cylinders adhere to the ISO 15552 standard, ensuring excellent interchangeability and a standardized design.

Structural design and materials:

The RA series cylinders typically feature anodized aluminum alloy cylinder barrels and end caps, offering strong corrosion resistance and suitability for harsh environments. The piston rod is commonly constructed from stainless steel, such as martensitic or austenitic stainless steel, providing both wear and corrosion resistance. Some models utilize polyurethane (PUR) or nitrile rubber (NBR) seals to prevent leakage and maintain stable performance.

Working principle and performance:

The NORGREN RA series cylinders are extensively utilized in automation equipment across various industrial sectors, thanks to their durability and reliable performance.

Industrial automation and robotics:

This category represents the traditional application field for RA series cylinders, widely employed in automated machinery for actions like pushing, pulling, clamping, lifting, and positioning. They are particularly well-suited for precise control and movement in robotic applications.

Material handling and conveying system:

These cylinders are used for tasks like sorting, pushing, blocking, and positioning workpieces within conveyor systems, assembly lines, and packaging machinery.

Automotive and Aerospace Manufacturing:

RA series cylinders play vital roles in assembly, testing fixtures, and various automation control procedures within automotive manufacturing and aerospace engineering.

Process industry and special environments:

These cylinders' corrosion resistance and reliability are leveraged in sectors like the oil and gas industry, chemical processing, and pharmaceutical industry.

Food and beverage processing:

Special attention must be given to specific media and cleaning requirements in this application area.

Control of dampers or valves in HVAC systems:

RA series cylinders are instrumental in regulating dampers or valves within heating, ventilation, and air conditioning (HVAC) systems.

Support and Services:

Our Product Technical Support team for the Piston Pneumatic Cylinder is dedicated to helping you with any inquiries regarding the installation, operation, and maintenance of the product. Whether you need assistance troubleshooting issues or require guidance on optimizing performance, our team is here to support you.

In addition to technical support, we also offer a range of services for the Piston Pneumatic Cylinder, including product training, repair and maintenance services, and customization options to meet your specific requirements. Our goal is to ensure that you have a seamless experience with our product and that it continues to meet your expectations.

Packing and Shipping:

Product Name: Piston Pneumatic Cylinder

Description: High-quality piston pneumatic cylinder suitable for various industrial applications.

Package Includes: - 1 x Piston Pneumatic Cylinder - User Manual - Warranty Card

Shipping Details: - Shipping Method: Standard Shipping - Estimated Delivery Time: 5-7 business days - Shipping Cost: Calculated at checkout
