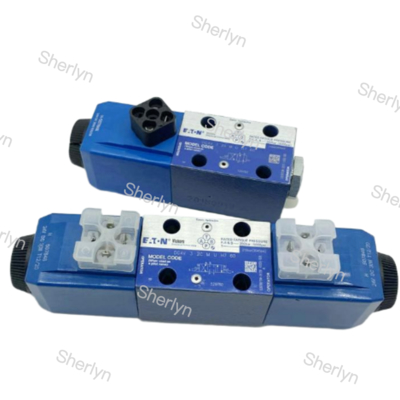

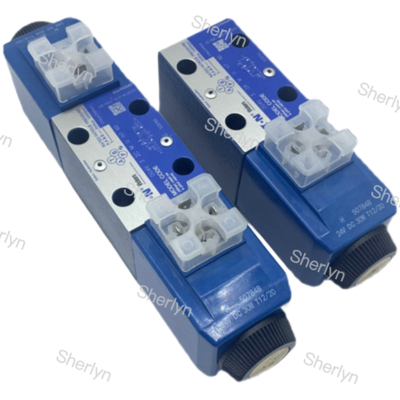

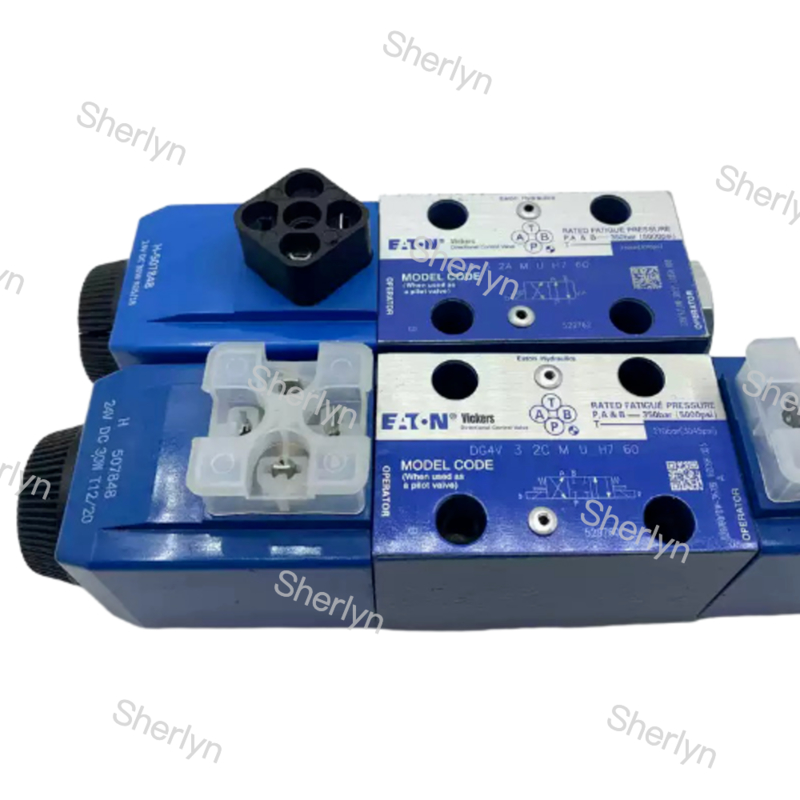

VICKERS DG4V-3-2N-M-U-H7-60 Electromagnetic Valve EATON

Product Description:

The core design goal of the DG4V series solenoid valve is to efficiently and reliably control the direction of hydraulic oil flow, thereby driving the action of actuating components such as oil cylinders and hydraulic motors. Its main technical features and attributes include:

• High working pressure and flow rate: The maximum working pressure of this series of valves can reach 350 bar (approximately 5075 psi), and the maximum pressure in the fuel tank pipeline is 210 bar (approximately 3045 psi). The rated flow can reach 80 L/min and 40 L/min respectively at a pressure of 350 bar, which can efficiently control large hydraulic power.
• Compliant with international standards and compact design: The installation interface complies with ISO 4401-03 standard, ensuring interchangeability and compatibility with other hydraulic components. The valve adopts a compact design with high power/weight ratio and power/volume ratio, which helps to save installation space and costs.
• Excellent durability and reliability: The valve core adopts a stainless steel structure, which improves the anti-corrosion ability. The standard configuration of the seal is Viton, which can adapt to various oils (including petroleum-based oils, water ethylene glycol, water in oil emulsions, and phosphate ester oils and their mixtures). Nitrile rubber (NBR) seal can be used as option 15. Its fatigue life and durability have been verified through over 20 million cycles of testing.
• Easy to install and maintain: The coil can be quickly replaced without disassembling the valve or leaking hydraulic oil. Can work with Eaton's SystemStake ™ Combination of stacked valves and base plates to build a compact system.

Applications:

The DG4V series solenoid valve is widely utilized in various industries that demand high-performance hydraulic control owing to its dependable performance.

Industrial Machinery: This solenoid valve is extensively employed in industrial machinery such as CNC machine tools, injection molding machines, die-casting machines, and presses to regulate the movement direction of oil cylinders or hydraulic motors, enabling precise process flow control.

Construction Machinery and Mobile Equipment: In the hydraulic systems of construction equipment like excavators and loaders, the DG4V valve is used to manage the switching of actions for actuators like booms and buckets, facilitating the accomplishment of intricate composite actions.

Mining and Heavy Equipment: Specifically designed to withstand severe working conditions prevalent in mining machinery, including crushers and conveyors, this solenoid valve exhibits robustness and resilience against factors such as dust, vibration, and heavy loads.

Ship and Port Machinery: The corrosion-resistant design of the DG4V valve makes it suitable for hydraulic control systems used in ship deck machinery like winches and cranes, as well as port lifting equipment, enabling operation in high humidity and high salinity environments encountered at sea.

Other Important Fields: Furthermore, apart from the aforementioned applications, this solenoid valve finds utility in metallurgical equipment, the wind power industry, aerospace, and other sectors where stringent requirements for hydraulic systems are prevalent.

Support and Services:

The Solenoid Valve product comes with comprehensive Product Technical Support and Services to ensure smooth operation and maintenance. Our team of experts is available to provide assistance with any technical queries or issues that may arise. Additionally, we offer a range of services such as installation guidance, troubleshooting support, and maintenance tips to optimize the performance and longevity of the product.

Packing and Shipping:

Product Packaging:

The Solenoid Valve will be securely packaged in a durable cardboard box to ensure safe delivery. The valve will be wrapped in protective packaging material to prevent any damage during transit.

Shipping:

We offer fast and reliable shipping for the Solenoid Valve. Orders will be processed and shipped within 1-2 business days. Customers can choose their preferred shipping method during checkout, with options for standard or expedited delivery.
