ASCO NUMATICS Cylinder NAA032/0030 (S) Cement Specific Cylinder

Product Description:

ASCO Numaitcs' cylinder product line mainly includes the following series, each with its unique design features and applicable scenarios:

ASP series cylinders: This is a set of heavy-duty NFPA (National Fluid Power Association) steel pneumatic cylinders designed specifically for intense sports applications. Its features include the use of ultra long graphite filled cast iron rod bushings and ultra long wear-resistant bands, as well as a validated "T-shaped seal" piston seal configuration (containing carboxylated nitrile and self-lubricating PTFE composite), all of which improve the durability of the product.

435 series circular cylinder: This series complies with ISO 6432 standard, with a circular cylinder body. It adopts stainless steel cylinder and piston rod, which gives it excellent corrosion resistance to corrosive media. This series offers single or double acting forms, optional pneumatic buffering, and is equipped with a magnetic position detector (for detecting piston position). Its compact threaded installation design facilitates direct connection to the machine.

437 series cylinder: This is a pull rod double acting cylinder that complies with the CNOMO standard (note: CNOMO is the abbreviation of the French Association for Pneumatic, Hydraulic and Transmission, and its standards are often compatible or similar to ISO standards), made of aluminum alloy 4. It is equipped with pneumatic buffering and adjustable damping, suitable for situations that require a certain level of accuracy and stability.

441 series short stroke cylinder: This series is known for its durability and compact structure, featuring durable single/double rods and anti rotation devices that help extend its service life. This series of designs focuses on installation and use within limited spaces.

453 series cylinders: This series follows the ISO 15552 specification (replacing previous standards such as ISO 6431), providing a sturdy and reliable structure and clean cylinder tube/end cap design. It integrates high-performance self-lubricating bearings, wear-resistant scraper seals, and adjusts buffering through micrometer screws, suitable for variable and harsh industrial environments.

KG series cylinder: This series is a sturdy cylinder designed specifically for demanding knife gate valve applications. Its design can withstand harsh industry and application environments, such as water, electricity, pulp and paper, and mining industries.

NAAMS heavy-duty clamping cylinder (such as model 1500D04-09A-34): This series complies with the North American Automotive Metric Standard (NAAMS), has a heavy-duty and durable structure, can withstand harsh environments, and is easy to install and assemble, especially suitable for clamping applications in automotive manufacturing and other fields.

Applications:

ASCO cylinders are widely utilized across various industrial sectors owing to their diverse series and characteristics:

Automobile manufacturing: The 435 series, 437 series, 441 series, and 453 series cylinders find common applications in welding, handling, clamping, assembly lines, and other processes. The NAAMS standard heavy-duty clamping cylinder is specifically tailored for tooling fixtures and clamping devices in the automotive industry.

Packaging industry: The 435 series, ASP series, and other cylinders are extensively employed in packaging machinery equipment for tasks like filling lines, packing, sealing, labeling, etc., enabling material pushing, positioning, and pressing.

Water treatment and power industry: The KG series cylinders are designed for automated knife gate valves and sliding gate valves to offer remote, safe, and reliable control in water and wastewater treatment plants, power industry, pulp and paper mills, as well as the mining industry.

Food and Beverage and Chemical Industry: Stainless steel 435 series cylinders are well-suited for applications with high hygiene requirements or exposure to corrosive media in food and beverage processing, pharmaceutical manufacturing, and chemical industries due to their corrosion resistance.

Dust removal system: ASP series cylinders are utilized in dust collector systems for managing the opening and closing of dust removal valves.

Semiconductors and Electronics: Cylinders play a key role in the semiconductor industry (like spot welding machines, chip grinding) and electronic manufacturing processes for precision handling, positioning, and assembly.

Printing and Metal Processing: Cylinders such as the 435 series and 437 series are integral components in printing equipment (for tension control), metal stamping, stamping workshops, and various other fields.

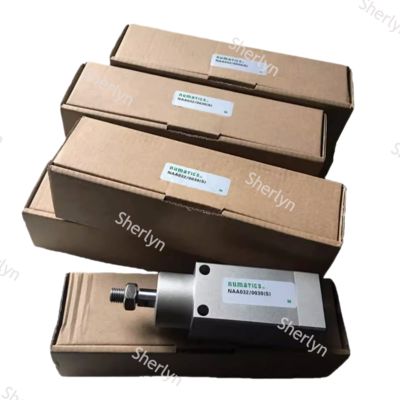

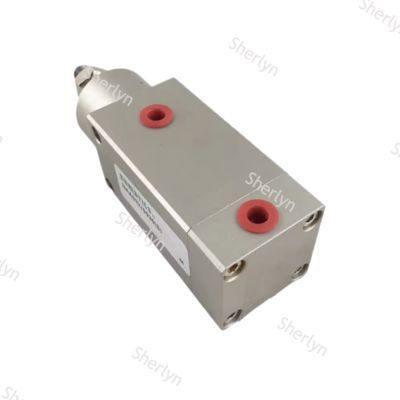

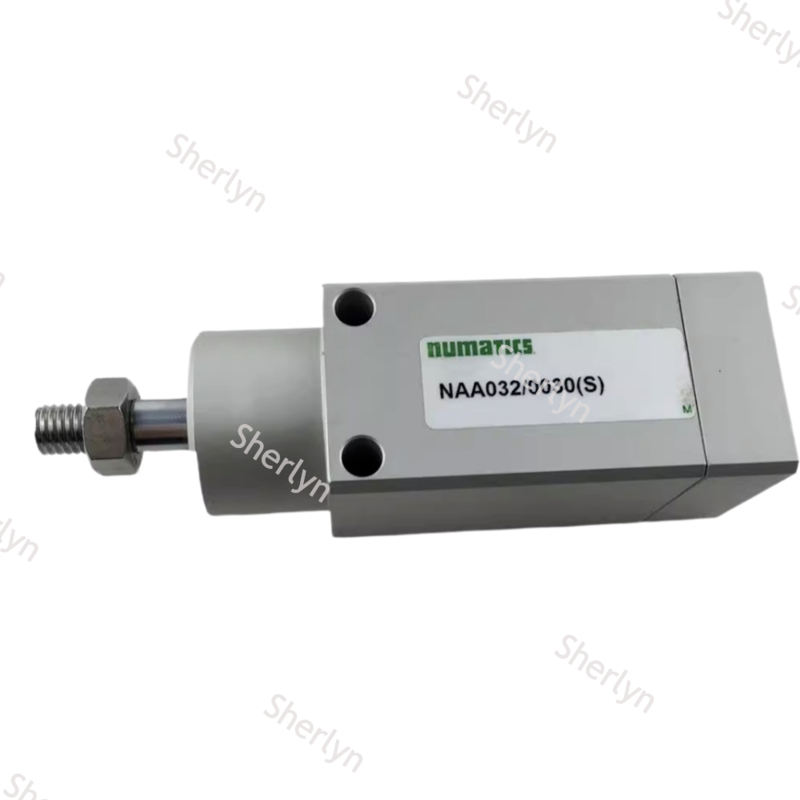

Numatics Pneumatic Cement Special Cylinder NAA032 / 0030

Specification:

1. The model is NAA032/0030

2. Bore size is 32mm

3. Stroke is 30mm

4. Material is aluminium and stainless steel

5. This Numatic cylinder usually used in cement plant.

6. We can custermise the cylinder according to the drawings or samples.

Configurable into Plug and Play units:

5/2 and 5/3 valves with mounting pad to ISO or Namur Mountings,detectors,pneumatic function fittings custom solutions assembled and tested on delivery.
