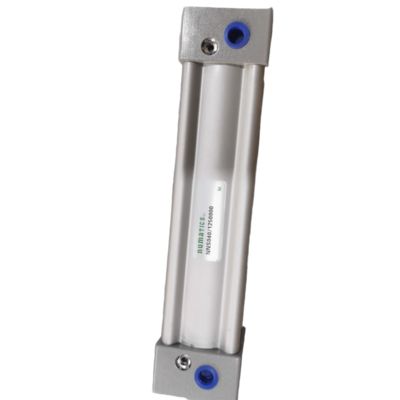

ASCO NNS040/01250000 Pneumatic Cylinder Numatics Double Acting Cylinder Single Rod End Type NNS

Product Description:

ASCO Numaitcs' cylinder product line mainly includes the following series, each with its unique design features and applicable scenarios:

ASP series cylinders: This is a set of heavy-duty NFPA (National Fluid Power Association) steel pneumatic cylinders designed specifically for intense sports applications. Its features include the use of ultra long graphite filled cast iron rod bushings and ultra long wear-resistant bands, as well as a validated "T-shaped seal" piston seal configuration (containing carboxylated nitrile and self-lubricating PTFE composite), all of which improve the durability of the product.

435 series circular cylinder: This series complies with ISO 6432 standard, with a circular cylinder body. It adopts stainless steel cylinder and piston rod, which gives it excellent corrosion resistance to corrosive media. This series offers single or double acting forms, optional pneumatic buffering, and is equipped with a magnetic position detector (for detecting piston position). Its compact threaded installation design facilitates direct connection to the machine.

437 series cylinder: This is a pull rod double acting cylinder that complies with the CNOMO standard (note: CNOMO is the abbreviation of the French Association for Pneumatic, Hydraulic and Transmission, and its standards are often compatible or similar to ISO standards), made of aluminum alloy 4. It is equipped with pneumatic buffering and adjustable damping, suitable for situations that require a certain level of accuracy and stability.

441 series short stroke cylinder: This series is known for its durability and compact structure, featuring durable single/double rods and anti rotation devices that help extend its service life. This series of designs focuses on installation and use within limited spaces.

453 series cylinders: This series follows the ISO 15552 specification (replacing previous standards such as ISO 6431), providing a sturdy and reliable structure and clean cylinder tube/end cap design. It integrates high-performance self-lubricating bearings, wear-resistant scraper seals, and adjusts buffering through micrometer screws, suitable for variable and harsh industrial environments.

KG series cylinder: This series is a sturdy cylinder designed specifically for demanding knife gate valve applications. Its design can withstand harsh industry and application environments, such as water, electricity, pulp and paper, and mining industries.

NAAMS heavy-duty clamping cylinder (such as model 1500D04-09A-34): This series complies with the North American Automotive Metric Standard (NAAMS), has a heavy-duty and durable structure, can withstand harsh environments, and is easy to install and assemble, especially suitable for clamping applications in automotive manufacturing and other fields.

Applications:

ASCO cylinders are widely utilized across different industries thanks to their diverse series and characteristics:

The 435 series, 437 series, 441 series, and 453 series cylinders find common applications in welding, handling, clamping, assembly lines, and other processes within the automobile manufacturing sector. The NAAMS standard heavy-duty clamping cylinder is specially designed for tooling fixtures and clamping devices in the automotive industry.

The 435 series, ASP series, and other cylinders are extensively used in packaging machinery equipment for tasks like filling lines, packing, sealing, labeling, and more. They play a crucial role in material pushing, positioning, and pressing.

The KG series cylinders are tailor-made for automated knife gate valves and sliding gate valves, offering remote, safe, and reliable control in water treatment plants, wastewater treatment plants, power industry facilities, pulp and paper mills, and mining industry applications.

Stainless steel 435 series cylinders are ideal for environments with high hygiene requirements or exposure to corrosive media in food and beverage processing, pharmaceutical, and chemical industries due to their corrosion resistance.

The ASP series cylinders play a vital role in dust collector systems by controlling the opening and closing of dust removal valves.

In the semiconductor and electronic manufacturing industries, cylinders are essential for precision handling, positioning, and assembly tasks, such as in spot welding machines and chip grinding.

Cylinders like the 435 series and 437 series are integral components in printing equipment for tasks like tension control as well as in metal stamping and stamping workshops.

Technical Parameters:

Support and Services:

Our company provides comprehensive Product Technical Support and Services for our Piston Pneumatic Cylinder product. Our team of experts is dedicated to assisting customers with any technical inquiries, troubleshooting, and product-related questions. Whether you need help with installation, maintenance, or repair, our technical support team is here to provide you with the necessary assistance.

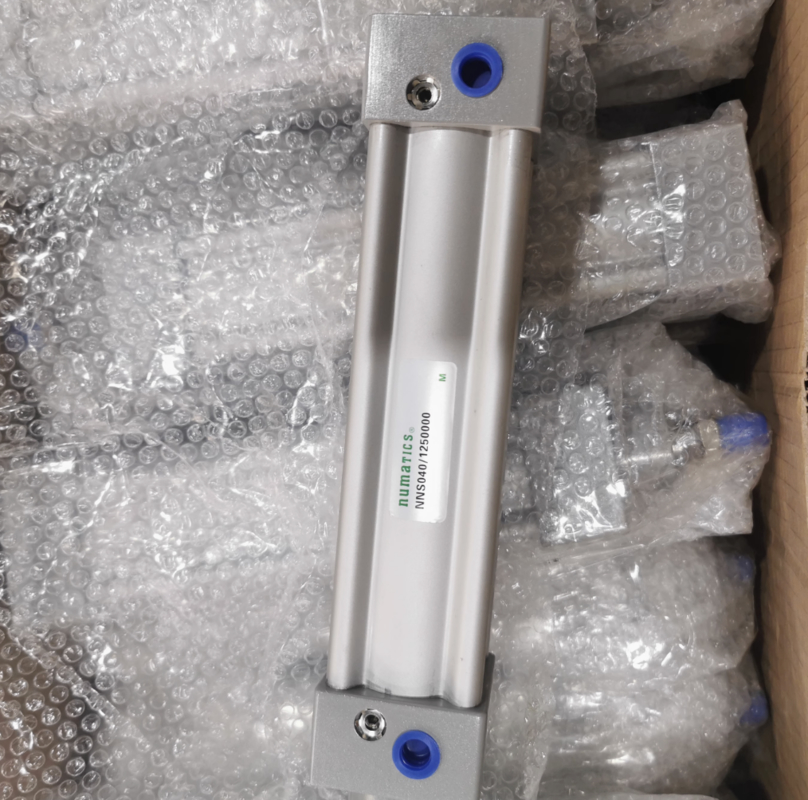

Packing and Shipping:

Product Name: Piston Pneumatic Cylinder

Description: High-quality piston pneumatic cylinder for industrial use.

Package Contents:

• 1 x Piston Pneumatic Cylinder
• Instruction Manual

Shipping Information:

• Shipping Method: Standard Shipping
• Delivery Time: 3-5 business days
