Product Description:
Main Types and Specifications

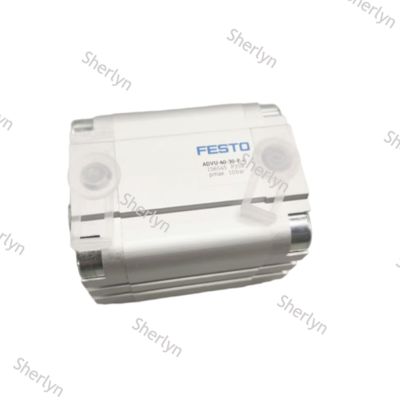

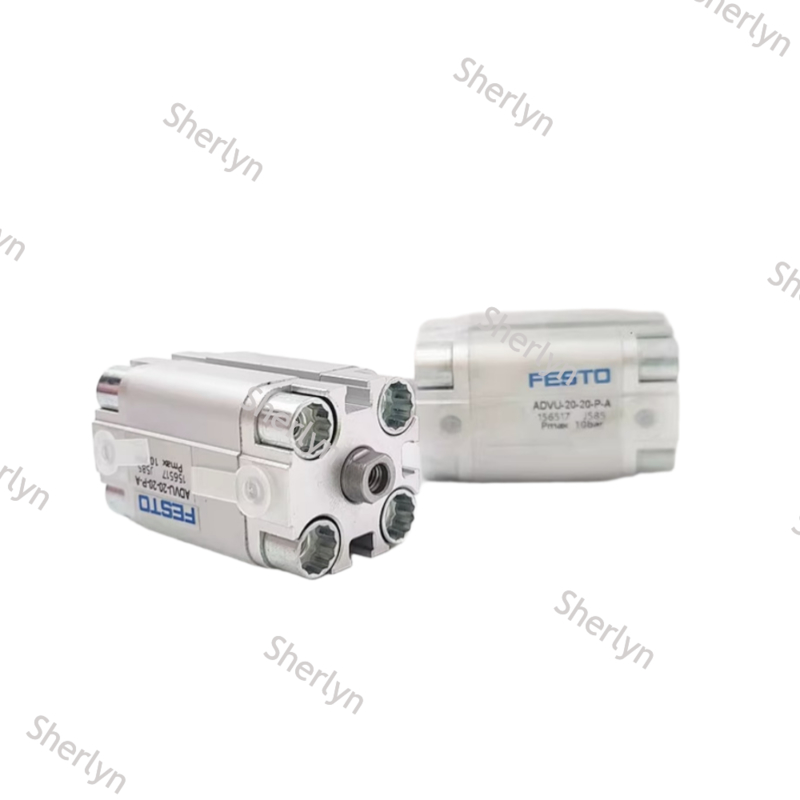

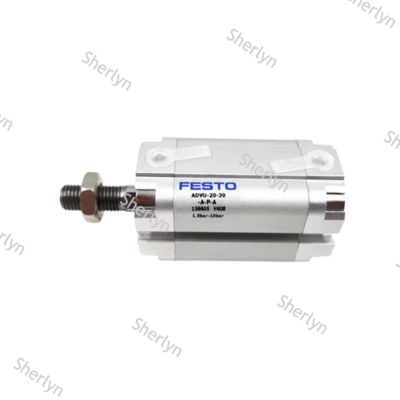

The ADVU series is a compact short stroke cylinder launched by Festo, covering various working forms such as double acting (ADVU) and single acting (AEVU, AEVUZ).
Double Acting Cylinder (ADVU): Controls the extension and retraction of the piston rod through compressed air. The piston diameter range is from 12 mm to 125 mm, with a wide stroke range. The standard stroke is 5 to 80 mm, and some models can choose a stroke range of 1 to 400 mm.
Single Acting Cylinder: Including push type (AEVU) and pull type (AEVUZ). The piston diameter is 12 to 100 mm, and the stroke is usually 5 to 25 mm or 1 to 25 mm.
Design and Performance Characteristics
Compact Structure and Standardization: The ADVU series cylinders have a simple appearance, smooth surface, and compact structure. Some models comply with international standards such as ISO 6432 (such as ADVU-32-10-P-A) or VDMA, and have good interchangeability and compatibility.
Buffer and Sensing Functions:
Buffer Design: The cylinder is usually equipped with elastic buffer rings or pads (often labeled as "P" in the model) at both ends, which can effectively absorb the energy of motion impact, reduce vibration and noise, and extend the service life.
Position Sensing: Many models support non-contact position sensing (often labeled as "A" in the model), which facilitates the installation of proximity sensors (such as inductive sensors SM... -8) to achieve precise detection and control of piston position.
Applications:
The Festo ADVU series cylinders are highly versatile and find applications in various fields due to their compact structure, reliable performance, and flexible configurability:
General automation equipment: These cylinders are widely used in various automation control systems and pneumatic equipment.
Automotive manufacturing and assembly: In this field, the cylinders are utilized for clamping and positioning in processes such as welding, handling, pressing, and more. For example, the model ADVU-32-10-P-A is commonly used for positioning.
The electronics and semiconductor industry: In environments that demand high cleanliness and precision, such as chip grinding and spot welding machines, the ADVU series cylinders, like the model ADVU-32-40-P-A for spot welding machines, are preferred for their compact design and optional stainless steel material.
Food and beverage packaging machinery: These cylinders are essential for pushing, measuring, and packaging actions in filling lines, packing machines, labeling machines (e.g., ADVU-32-10-P-A for labeling), and other equipment.
Medical and laboratory equipment: The compactness and reliability of these cylinders make them ideal for applications that require precise control, such as medical equipment and the biotechnology industry. For instance, the model ADVU-20-15-P-A is used in the medical and health field.
Other industrial fields: The ADVU series cylinders are also utilized in various sectors including metal processing (e.g., stamping), printing equipment, material handling, etc.
Support and Services:
Our Product Technical Support and Services for the Piston Pneumatic Cylinder include:
- Expert assistance with installation and troubleshooting
- Guidance on maintenance and proper use of the product
- Access to online resources such as user manuals and technical documents
- Product training and demonstrations for customers and technicians
Packing and Shipping:
Product: Piston Pneumatic Cylinder
Description: The Piston Pneumatic Cylinder is a high-quality pneumatic component designed for industrial use. It is made with durable materials to ensure long-lasting performance and reliability.
Product Packaging:
- Each Piston Pneumatic Cylinder is carefully packaged in a sturdy cardboard box.
- The product is securely cushioned with foam inserts to prevent any damage during transit.
- The packaging is designed to protect the cylinder from moisture and impact during shipping.
Shipping Information:
- Orders are typically processed and shipped within 1-2 business days.
- We offer various shipping options including standard, expedited, and express delivery.
- Customers will receive a tracking number to monitor the status of their shipment.
