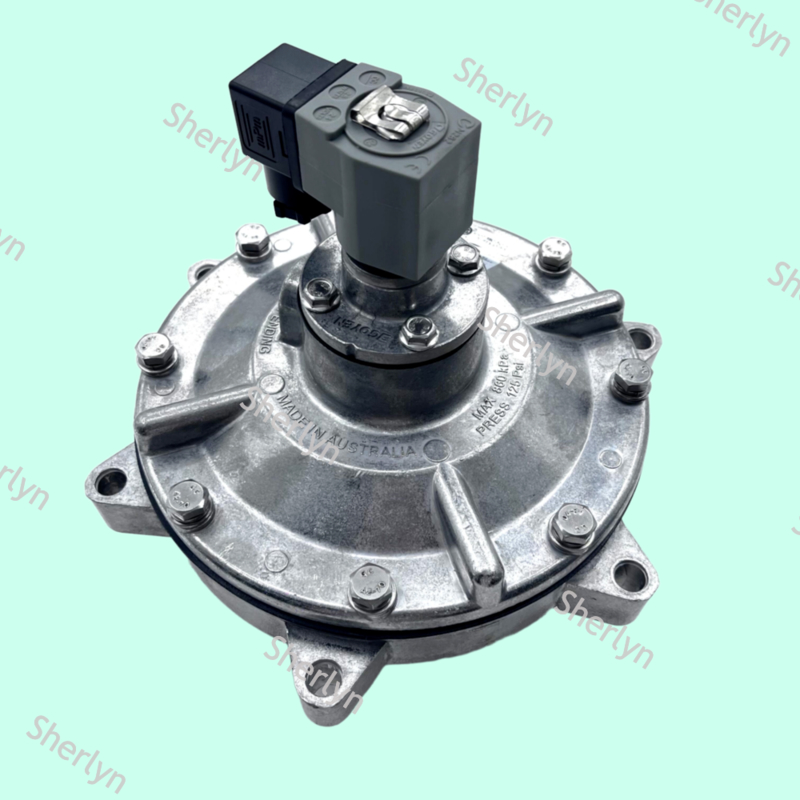

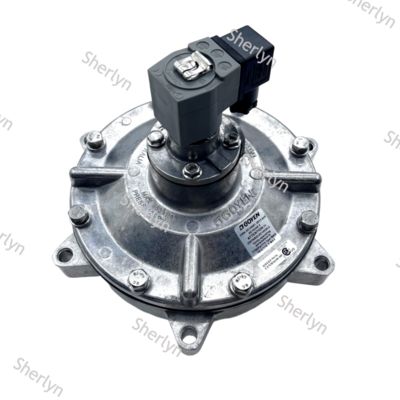

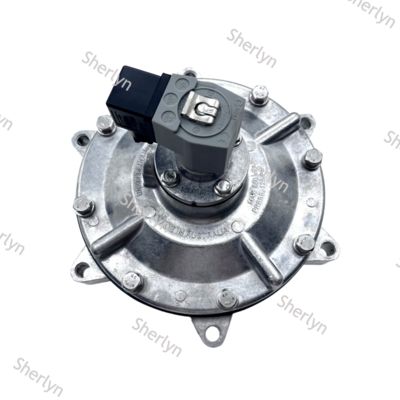

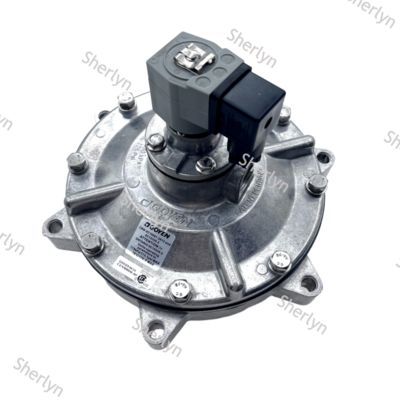

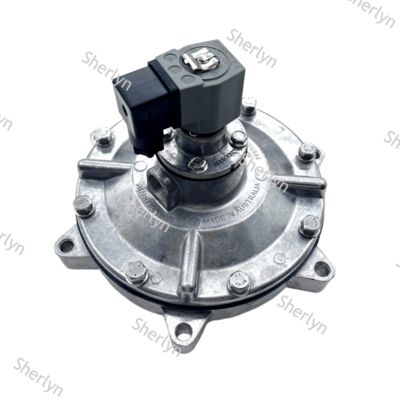

GOYEN CA76MM 3'' Inch Submerged Pulse Electromagnetic Valve CA76MM040-305 CA76MM010-300

Product Description:

The design and manufacturing of GOYEN pulse valves focus on improving dust cleaning efficiency, extending service life, and adapting to complex industrial environments. The core features include:

GOYEN pulse valve is known for its powerful pulse blowing performance. Its unique structural design and membrane technology can generate high-intensity and fast compressed air pulses, effectively removing dust from the filter material. The same diameter dust cleaning force of its T-valve can be more than 50% higher than other brands, helping maintain stable low operating resistance of the dust removal system.

Right angle valve design: Common T-type valves, fourth generation RCAC type valves, etc. are mostly right angle valves, with inlet and outlet forming a 90 degree right angle, which is convenient for installation and pipeline layout on gas bags with limited space.

Diverse interface forms: Providing internal thread connection, double head connection, flange inlet/sliding outlet connection, and submerged valve suitable for circular airbags to meet different airbag structures and installation requirements.

The fourth generation pulse valve (RCAC type) is a pneumatic valve, but can be converted to an electronic control valve (CAC type) by installing an electromagnetic pilot valve (such as RCA-3PV or RCA-3DM). This modular design improves flexibility and stocking efficiency.

Valve body: mainly made of die cast aluminum alloy, balancing lightweight and strength.

Internal components: Commonly used 300 series stainless steel (such as 302 SS, 304 SS) for push rods, armatures, springs, etc., are corrosion-resistant.

Applications:

GOYEN pulse valve is primarily utilized in industrial dust removal systems for pulse cleaning. It serves as the essential component in bag and filter cartridge dust collectors, playing a crucial role in the following areas:

Core function: Upon receiving signals from the control instrument, the valve swiftly opens and closes to release compressed air into the filter bag (or cartridge) at high speed. This action causes significant expansion and vibration of the filter bag, effectively dislodging the dust accumulated on the filter surface. This process restores the filter element's ventilation performance, ensuring the dust removal system operates continuously and steadily.

Main dust removal equipment and filter material types:

• Equipment type: Widely used in pulse jet bag filters and gas box pulse filters.
• Filter material type: Suitable for cleaning various filter elements such as filter bags, filter cartridges, flat bags, ceramic filter tubes, metal fiber filter bags, etc.

Key application industries:

1. Cement industry: Extensively employed for dust control in various stages of cement production like raw material grinding, cement grinding, packaging, and transportation.
2. Steel and metallurgical industry: Used in processes like blast furnaces, converters, electric furnaces, sintering, coking, and material transportation that produce substantial smoke and dust.
3. Power industry: Particularly for dust removal in boiler flue gas and coal powder preparation systems within coal-fired power plants.
4. Chemical and pharmaceutical industries: Handling diverse types of dust generated during production with the need for selecting suitable membrane and sealing materials like Viton based on medium characteristics.
5. Food processing and grain storage: Utilized for dust control in grain handling and processing with specific material safety requirements.
6. Wood processing and furniture manufacturing: Collecting wood dust such as sawdust.
7. Mining and mineral processing: Dust removal operations during ore crushing, screening, and transportation processes.

CA76MM MM Seires 3'' Inch Submerged Dust Collector Diaphragm Valve

The blowing air volume of the electromagnetic pulse valve is the key to determining how many filter bags (filtering area) can be cleaned, but it is not scientific to judge its cleaning ability only from the blowing volume of the electromagnetic pulse valve. Because some pulse valves cannot be closed in time and the blown air volume increases, it has no effect on the dust removal of the filter bag except for increasing the consumption of compressed gas and wasting energy. For a pulse valve with good performance and quality, its blowing air volume is also restricted by many factors in the cleaning system: from the input end of the pulse valve, the volume and pressure of the gas distribution box, and the supply of the gas distribution box The inner diameter of the air pipe and the air supply capacity of the air source directly affect the blowing performance and blowing air volume of the same pulse valve: on the load end of the electromagnetic pulse valve, that is, the filter bag it blows, the temperature of the dusty gas that it filters, Humidity, dust concentration, specific gravity and viscosity, filtration speed, equipment resistance will all put forward different requirements for blowing performance and air volume. The number and structure of nozzles (nozzles), filter bag material, diameter, length and quantity, and dust removal. Various factors such as form (online, offline), dust removal control (timing, constant pressure difference), etc., all affect and restrict the injection performance and dust removal effect of the pulse valve to varying degrees.

Technical Data of CA76MM Manifold Mount Pulse Valve:

Support and Services:

Our Product Technical Support and Services for the Pulse Jet Valves include:

- On-site installation and commissioning support

- Troubleshooting assistance for operational issues

- Regular maintenance and servicing recommendations

- Access to online resources such as user manuals and technical documentation
