B72G-3AK-QD3-RMN NORGREN Excelon Filter/regulator G3/8 PTF

B72G-3AK-QD3-RMN NORGREN Excelon Filter/regulator G3/8 PTF

  • B72G-3AK-QD3-RMN NORGREN Excelon Filter/regulator G3/8 PTF
  • B72G-3AK-QD3-RMN NORGREN Excelon Filter/regulator G3/8 PTF
  • B72G-3AK-QD3-RMN NORGREN Excelon Filter/regulator G3/8 PTF
  • B72G-3AK-QD3-RMN NORGREN Excelon Filter/regulator G3/8 PTF
B72G-3AK-QD3-RMN NORGREN Excelon Filter/regulator G3/8 PTF
Product Details:
Brand Name: Norgren
Certification: CE
Model Number: B72G-3AK-QD3-RMN
Document: en_8_160_300_B72G.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton /As The Clients Require
Delivery Time: 1-7Work Days After Payment
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 5000PCs Per Month
Contact Now
Detailed Product Description
Medium: Compressed Air Drain Type: Automatic Drain
Outlet Pressure Adjustment: 0.3 ... 10 Bar, 4 ... 145 Psi Port Size: G3/8
Range: B72G Bowl Material: Polycarbonate
Highlight:

Norgren Excelon filter regulator

,

Pneumatic filter regulator G3/8

,

Excelon FRL unit PTF

Medium Compressed air
Operating Temperature -34 ... 65 °C, -29 ... 149 °F
Port Size 3/8 PTF
Drain Type Manual
Gauge Port 1/8 PTF
Filter Element 40 μm
Adjustment Knob
Maximum Inlet Pressure 10 bar, 145 psi
Outlet Pressure Adjustment 0.3 ... 10 bar, 4 ... 145 psi
Relieving / Non Relieving Relieving
Flow 38 dm3/sec, 81 scfm
Materials - Adjusting Knob Acetal
Materials - Body Zinc alloy

Product Description:

The NORGREN F18 series filters are specially designed for compressed air and neutral gases to effectively remove liquid water and solid impurities. Its key features and details include:

Efficient water removal and impurity filtration: This filter can efficiently and finely filter out impurities in the liquid and gas being processed, ensuring clean operation without noise.

Automatic drainage function: It is equipped with an automatic drain and has connection ports with 1/8-27 and 1/8-28 male pipe threads. Please note that the inner diameter of the flexible pipe connecting the drain should not be less than 3/16 inch (about 5 millimeters), as it may otherwise impact the drain's normal operation.

Humanized observation design: Featuring a high visibility prism liquid level indicator lens, this design allows users to easily observe the liquid level within the filter cup and stay informed about drainage requirements.

Durable and sturdy material: The main components are constructed from an aluminum body, while the filter cup is made from a transparent nylon metal bowl, offering both convenience for observation and structural strength. The filter element is crafted from sintered bronze, and the sealing material is chloroprene/NET elastomer, ensuring product stability and durability over extended periods of use.


Applications:

Reliable Filtering Performance: The NORGREN F18 series filters are known for their dependable filtering performance, making them suitable for various situations where clean compressed air is needed.

Widely Applicable Fields: NORGREN's products find applications in essential sectors such as factory automation, material handling, railways, energy, process control, and life sciences. While these fields may not explicitly mention the F18 series, they provide an idea of the potential range of applications for this product.

Core Function Assurance System: The primary function of the F18 series is to eliminate liquid water and solid impurities from compressed air or gas. This is critical for safeguarding downstream pneumatic equipment (such as cylinders, solenoid valves, etc.) and can significantly enhance the lifespan and reliability of the equipment and system.

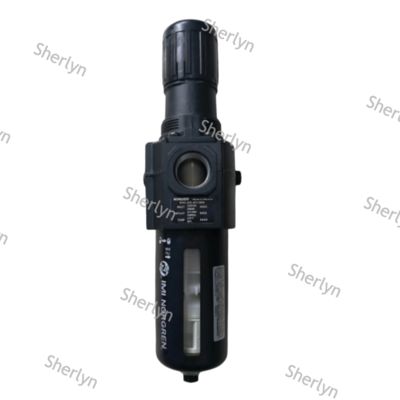

B72G-3AK-QD3-RMN NORGREN Excelon Filter/regulator G3/8 PTF 0

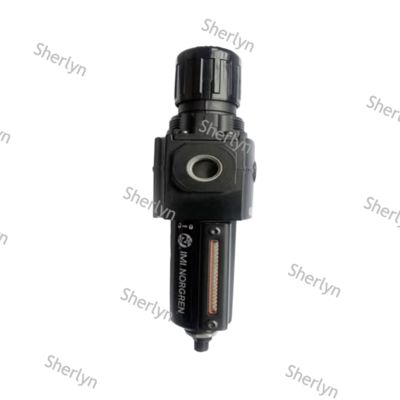

B72G-3AK-QD3-RMN NORGREN Excelon Filter/regulator G3/8 PTF 1

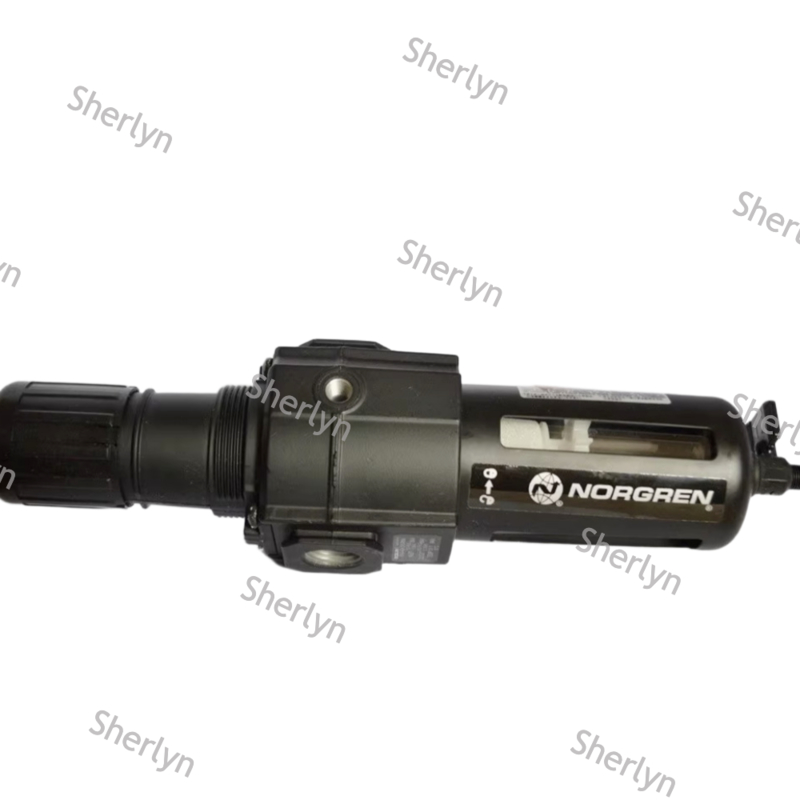

B72G-3AK-QD3-RMN NORGREN Excelon Filter/regulator G3/8 PTF 2



Support and Services:

The Product Technical Support and Services for the Pneumatic Filter Regulator Lubricator include:

- Installation assistance and guidance

- Troubleshooting support for any issues related to the product

- Maintenance tips and recommendations to ensure optimal performance

- Product training sessions for users and maintenance personnel


Packing and Shipping:

Product Name: Pneumatic Filter Regulator Lubricator

Description: This product is designed to regulate air pressure, filter contaminants, and provide lubrication for pneumatic systems.

Package Contents: - 1 Pneumatic Filter Regulator Lubricator - Mounting brackets and hardware - Instruction manual

Shipping Information: - Shipping Method: Standard Shipping - Estimated Delivery Time: 3-5 business days -
