| Media |
Compressed air |
| Operating Temperature |
-34 ... 65 °C, -29 ... 149 °F |
| Port Size |
1/4" PTF |
| Drain Type |
Manual |
| Filter Element |
5 μm |
| Adjustment |
Knob |
| Maximum Inlet Pressure |
10 bar, 145 psi |
| Outlet Pressure Adjustment |
0.3 ... 10 bar, 4 ... 145 psi |
| Relieving / Non Relieving |
Relieving |
| Flow |
38 dm3/sec, 81 scfm |
| Materials - Adjusting Knob |
Acetal |
| Materials - Body |
Zinc alloy |
| Materials - Bonnet |
Acetal |
| Materials - Bowl |
Zinc alloy |

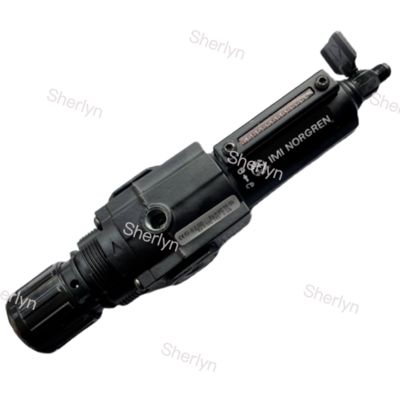

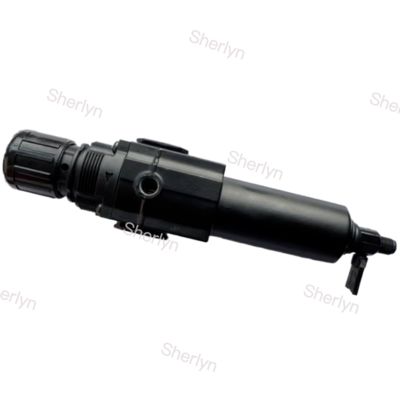

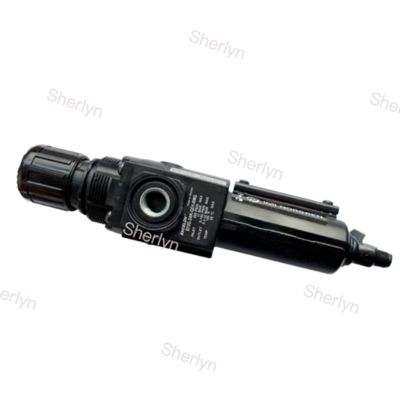

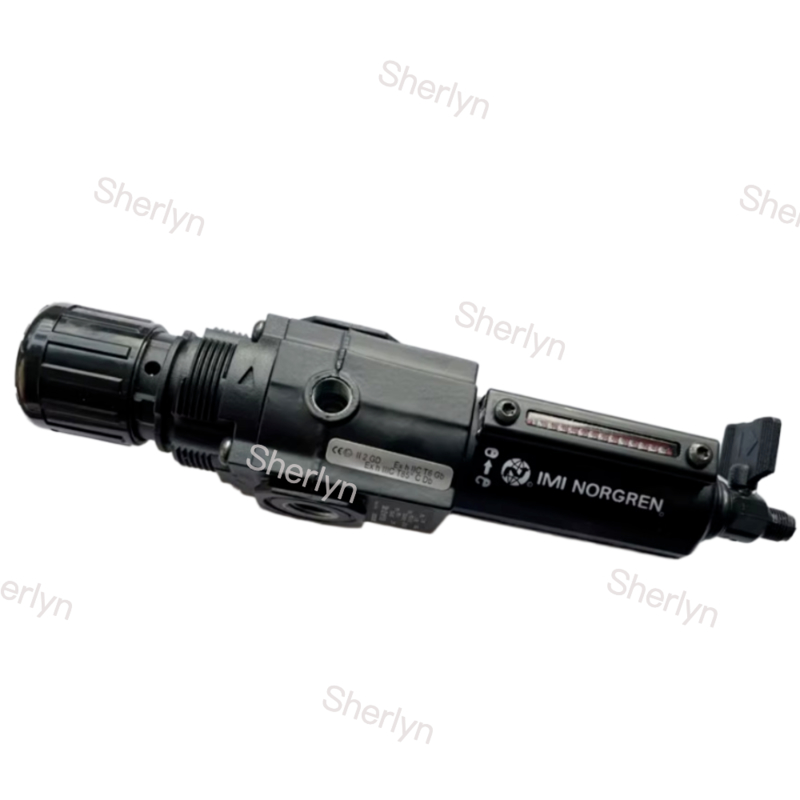

Product Description:
The NORGREN F18 series filters are specifically designed for compressed air and neutral gases to effectively remove liquid water and solid impurities. The core features and details of this filter are as follows:
- Efficient water removal and impurity filtration: This filter can swiftly and finely filter out impurities in the liquid and gas, ensuring medium cleanliness and quiet operation.
- Automatic drainage function: Equipped with an automatic drain, featuring connection ports of 1/8-27 and 1/8-28 male pipe threads. It's important to note that the inner diameter of the flexible pipe connecting the drain should be at least 3/16 inch (about 5 millimeters) to avoid affecting the drain's normal operation.
Furthermore:
- Humanized observation design: Includes a high visibility prism liquid level indicator lens, enabling users to easily observe the liquid level inside the filter cup and determine drainage requirements promptly.
- Durable and sturdy construction: The main components feature an aluminum body, while the filter cup is constructed with a transparent nylon metal bowl for both observation convenience and structural strength. Additionally, the filter element is crafted from sintered bronze, and the sealing material consists of chloroprene/NET elastomer, ensuring product stability and durability during prolonged use.
Applications:
Reliable Filtering Performance:
The NORGREN F18 series filters are highly regarded for their dependable filtering performance, making them suitable for a wide range of applications that necessitate clean compressed air.
Widely Applicable Fields:
NORGREN's products find utility in various sectors including factory automation, material handling, railways, energy, process control, and life sciences. While specific references to the F18 series may not be explicitly mentioned, these fields can offer insights into its diverse potential applications.
Core Function Assurance System:
The primary function of the F18 series is to eliminate liquid water and solid impurities from compressed air or gas. This function is critical for safeguarding downstream pneumatic equipment such as cylinders and solenoid valves, thereby enhancing equipment service life and system reliability significantly.
Support and Services:
The Product Technical Support and Services for the Pneumatic Filter Regulator Lubricator include:
- Troubleshooting assistance for installation and operation issues.
- Guidance on maintenance and cleaning procedures.
- Instruction on how to optimize performance and efficiency.
- Information on replacement parts and accessories.
Packing and Shipping:
Product Packaging:
The Pneumatic Filter Regulator Lubricator is carefully packaged in a sturdy cardboard box to ensure safe transportation. Each unit is securely wrapped in protective packaging material to prevent any damage during shipping.
Shipping:
Orders for the Pneumatic Filter Regulator Lubricator are typically processed and shipped within 1-2 business days. We offer standard and expedited shipping options to meet your delivery needs. All shipments are tracked, and you will receive a tracking number once your order has been dispatched.
