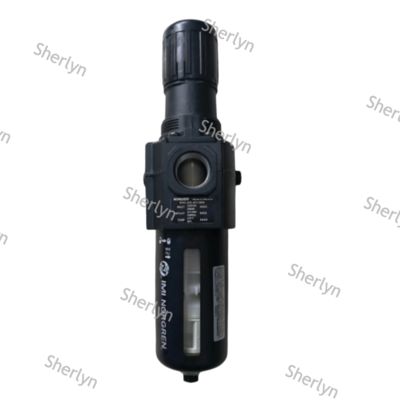

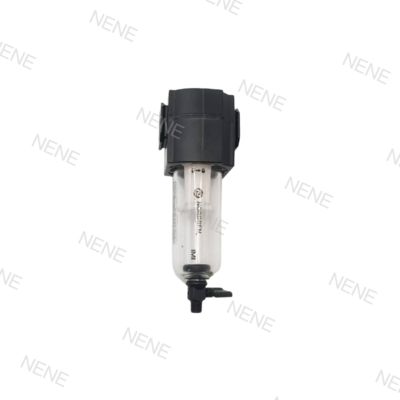

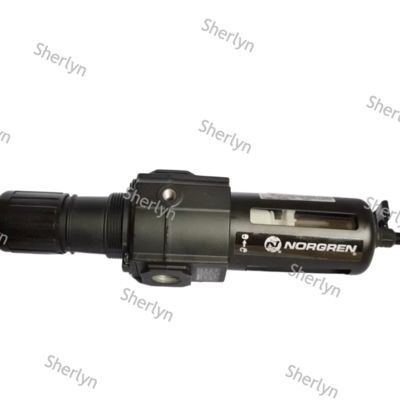

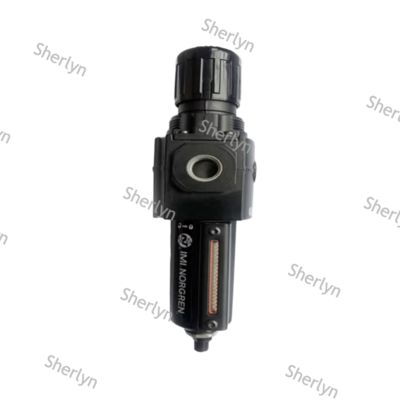

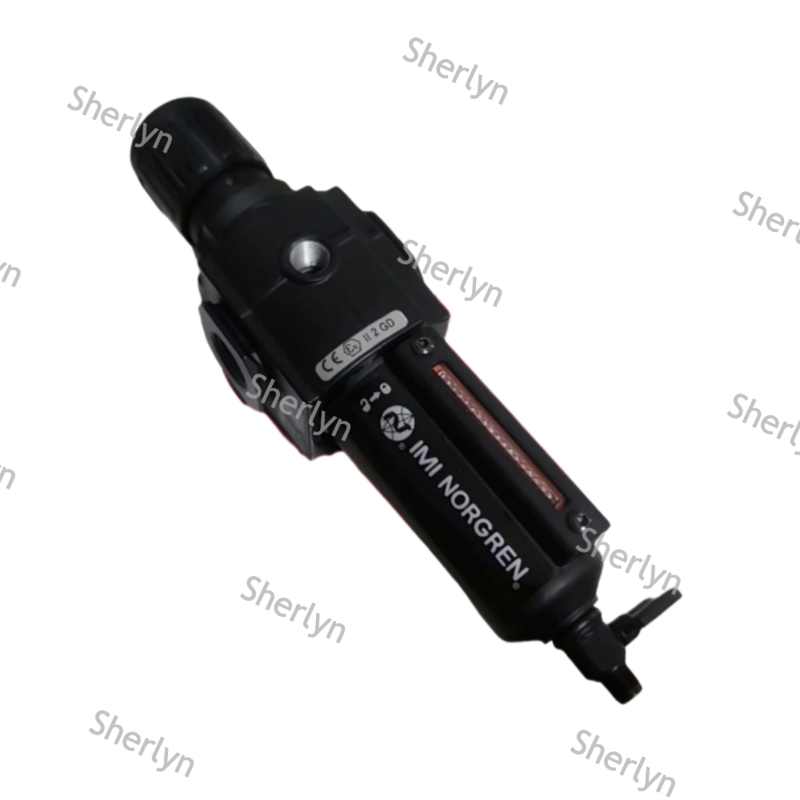

Product Description:
The NORGREN F18 series filters are specifically designed for compressed air and neutral gases to effectively remove liquid water and solid impurities. Key features of the filter include:
- Efficient water removal and impurity filtration: The filter can quickly and finely filter out impurities in the liquid and gas, ensuring cleanliness and noise-free operation.
- Automatic drainage function: Equipped with an automatic drain featuring 1/8-27 and 1/8-28 male pipe threads connection ports. It is important to note that the inner diameter of the flexible pipe connecting to the drain should be at least 3/16 inch (approximately 5 millimeters) to avoid affecting the drain's normal operation.
- Humanized observation design: Designed with a high-visibility prism liquid level indicator lens for easy observation of the liquid level inside the filter cup, enabling users to monitor drainage needs promptly.
- Durable and sturdy material: The main components are constructed from aluminum body, while the filter cup is crafted from transparent nylon metal bowl, providing both observation convenience and structural strength. The filter element is composed of sintered bronze, and the sealing material is chloroprene/NET elastomer, ensuring stability and durability over long-term use.
Applications:
Thanks to its reliable filtering performance, the NORGREN F18 series filters are suitable for many occasions that require clean compressed air.
Widely applicable fields: NORGREN's products are used in key areas such as factory automation, material handling, railways, energy, process control, and life sciences. Although these materials do not explicitly point to the F18 series, they can serve as a reference for its potential application scope.
Core function assurance system: Its main task is to remove liquid water and solid impurities from compressed air or gas, which is crucial for protecting downstream pneumatic equipment (such as cylinders, solenoid valves, etc.) and can effectively improve equipment service life and system reliability.
| Medium |
Compressed air |
| Operating Temperature |
-34 ... 50 °C, 29 ... 122 °F |
| Port Size |
G1/4 |
| Drain Type |
Manual |
| Gauge Port |
Rc1/8 |
| Filter Element |
40 μm |
| Adjustment |
Knob |
| Maximum Inlet Pressure |
10 bar, 145 psi |
| Outlet Pressure Adjustment |
0.3 ... 10 bar, 4 ... 145 psi |
| Relieving / Non Relieving |
Relieving |
| Flow |
38 dm3/sec, 81 scfm |
| Materials - Adjusting Knob |
Acetal |
| Materials - Body |
Zinc alloy |
| Materials - Bonnet |
Acetal |
Support and Services:
The Product Technical Support and Services for the Pneumatic Filter Regulator Lubricator are designed to ensure optimal performance and longevity of the product. Our team of experts is available to provide assistance with installation, troubleshooting, and maintenance to help you get the most out of your equipment.
Our services include product information, technical specifications, troubleshooting guides, and maintenance tips to keep your Pneumatic Filter Regulator Lubricator operating efficiently. We are committed to delivering high-quality support to our customers and ensuring that your equipment functions smoothly for years to come.
Packing and Shipping:
Product Name: Pneumatic Filter Regulator Lubricator
Description: This product is designed to regulate air pressure, filter out impurities, and lubricate pneumatic systems.
Package Contents: 1 x Pneumatic Filter Regulator Lubricator, 1 x Mounting Bracket, 1 x User Manual
Shipping Details: This product will be carefully packaged and shipped to your address within 3-5 business days.
