Product Description:

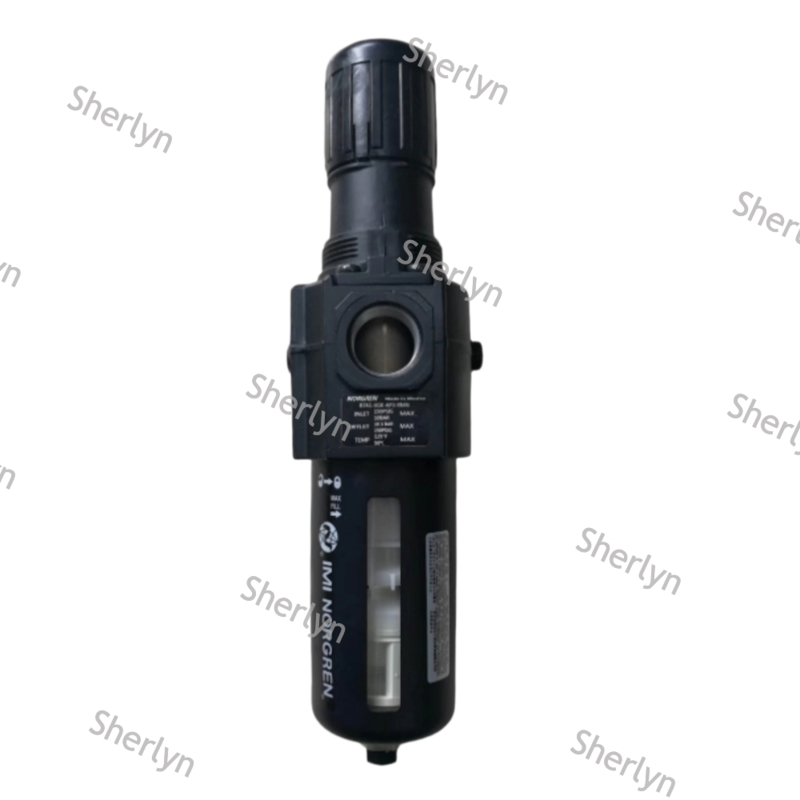

NORGREN F18 Series Filters
The NORGREN F18 series filters are specially designed for compressed air and neutral gases to efficiently remove liquid water and solid impurities from them. The key features and details of the filter are outlined below:
Efficient Water Removal and Impurity Filtration
This filter can swiftly and effectively filter out impurities in the liquid and gas being filtered, ensuring cleanliness of the medium and noise-free operation.
Automatic Drainage Function
Equipped with an automatic drain with connection ports of 1/8-27 and 1/8-28 male pipe threads. It is important to ensure that the inner diameter of the flexible pipe connecting the drain is not less than 3/16 inch (about 5 millimeters) to avoid any disruption to normal drain operation.
Humanized Observation Design
Featuring a high visibility prism liquid level indicator lens, this design enables users to easily observe the liquid level inside the filter cup, allowing for timely assessment of drainage requirements.
Durable and Sturdy Material
The main components of the filter are constructed from aluminum body, while the filter cup is fashioned from transparent nylon metal bowl, providing both visibility and structural durability. The filter element is made of sintered bronze and the sealing material is chloroprene/NET elastomer to ensure product stability and longevity during prolonged use.
Applications:
Reliable Performance: The NORGREN F18 series filters are highly regarded for their consistent filtering performance, making them ideal for various settings where clean compressed air is essential.
Wide Application: NORGREN's products find utility in critical industries like factory automation, material handling, railways, energy, process control, and life sciences. While these fields may not expressly mention the F18 series, they provide insight into the potential breadth of its usability.
Key Functionality: The primary function of the F18 series lies in eliminating liquid water and solid impurities from compressed air or gas. This function is vital for safeguarding downstream pneumatic equipment (e.g., cylinders, solenoid valves), leading to enhanced equipment longevity and system dependability.
| Medium |
Compressed air |
| Operating Temperature |
-34 ... 50 °C, 29 ... 122 °F |
| Port Size |
G1/4 |
| Drain Type |
Automatic drain |
| Gauge Port |
Rc1/8 |
| Filter Element |
5 μm |
| Adjustment |
Knob |
| Maximum Inlet Pressure |
10 bar, 145 psi |
| Outlet Pressure Adjustment |
0.3 ... 10 bar, 4 ... 145 psi |
| Relieving / Non Relieving |
Relieving |
| Flow |
38 dm3/sec, 81 scfm |
| Materials - Adjusting Knob |
Acetal |
| Materials - Body |
Zinc alloy |
Support and Services:
The Product Technical Support and Services for the Pneumatic Filter Regulator Lubricator includes:
- Installation guidance and support
- Troubleshooting assistance
- Maintenance recommendations
- Replacement parts availability
- Warranty information
Packing and Shipping:
Product Name: Pneumatic Filter Regulator Lubricator
Description: The Pneumatic Filter Regulator Lubricator is designed to provide high-quality air filtration, regulation, and lubrication for pneumatic systems.
Package Contents: - 1 x Pneumatic Filter Regulator Lubricator - Mounting hardware - User manual
Shipping Information: - Shipping Method: Standard Shipping - Estimated Delivery Time: 3-5 business days - Shipping Charges: Free Shipping
