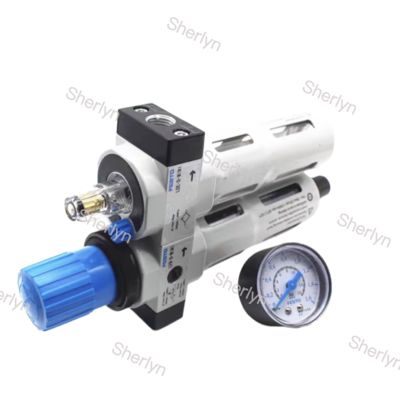

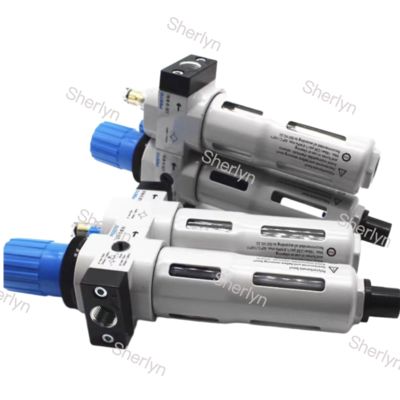

FESTO Regulator Filter LF-1/4-D-MINI 159613

Product Description:

The design and performance of FESTO zinc alloy oil mist generator have the following outstanding features:

Sturdy structure and precision manufacturing: The housing of the oil mist device is made of die cast zinc alloy, which is sturdy and durable in structure. The filter cup is usually made of transparent polycarbonate (PC) material and equipped with a metal protective cover, which can facilitate the observation of oil level and provide good physical protection.

Proportional oil mist and precise lubrication: This oil mist device adopts a proportional oil mist design, and its core principle is to use the Venturi effect to make the amount of lubricating oil added after atomization proportional to the flow rate of compressed air. This means that it can provide precise lubrication based on the actual working conditions of the pneumatic system, avoiding insufficient or excessive lubrication.

Key performance parameters: The working pressure range of the oil mist device is usually from 0 bar to 16 bar. Taking the LOE-D-MIDI model as an example, its oil storage capacity is 110 cm³. To start the oil mist generator normally and generate oil mist, the compressed air flow rate needs to reach a minimum value. For example, the minimum fogging flow rate for the LOE-D-MIDI model is 8 L/min (other data shows 3 L/min, which may vary depending on the specific model or conditions). The installation position requirements are strict, and it must be installed vertically with a deviation range of plus or minus 5 degrees to ensure that the lubricating oil can be correctly sucked up and atomized.

Convenient and safe to use: Some models are designed with maintenance convenience in mind, allowing for easy refueling. In addition, it requires the use of specific, non-lubricated compressed air as the working medium and requires the incoming compressed air to meet the purity standards related to ISO8573-1:2010 [7:4:4], which helps ensure stable system operation and avoid oil contamination.

Applications:

In the field of industrial automation, the FESTO zinc alloy oil mist generator is a crucial component used in various industries such as textiles, material transportation, printing, deep processing, and packaging. For instance, it is instrumental in lubricating pneumatic scissors and sewing machines in the textile industry, pneumatic conveyor belts in material transportation systems, pneumatic printing machines and dyeing machines in the printing industry, as well as packaging machines and packers in the packaging industry.

One of the core functions of the FESTO zinc alloy oil mist generator is its lubricating capability. It is designed to add precisely metered lubricating oil to the compressed air system to lubricate different pneumatic components including cylinders, pneumatic motors, directional valves, and more. By reducing friction between moving parts like motors, pistons, gears, and sliding surfaces, it enables smoother operation and more accurate speed control. This, in turn, helps in decreasing machinery maintenance costs.

Technical Data

• SizeMini
• SeriesD
• Mounting positionVertical +/- 5°
• Grade of filtration40 µm
• Condensate drainManually rotating
• Structural designSinter filter with centrifugal separator
• Bowl guardMetal bowl guard
• Symbol00991519

Support and Services:

The Product Technical Support and Services for the Pneumatic Filter Regulator Lubricator product include:

- Installation guidance and assistance

- Troubleshooting support for any issues

- Maintenance tips and recommendations

- Product training and education

- Warranty information and claims processing

- Product upgrades and enhancements

Packing and Shipping:

Product Name: Pneumatic Filter Regulator Lubricator

Description: This product is designed to filter, regulate, and lubricate air in pneumatic systems.

Package Includes: Pneumatic filter regulator lubricator unit, mounting brackets, user manual

Shipping: This product will be carefully packaged to ensure safe delivery. Shipping will be handled by our trusted carriers to ensure timely arrival.
