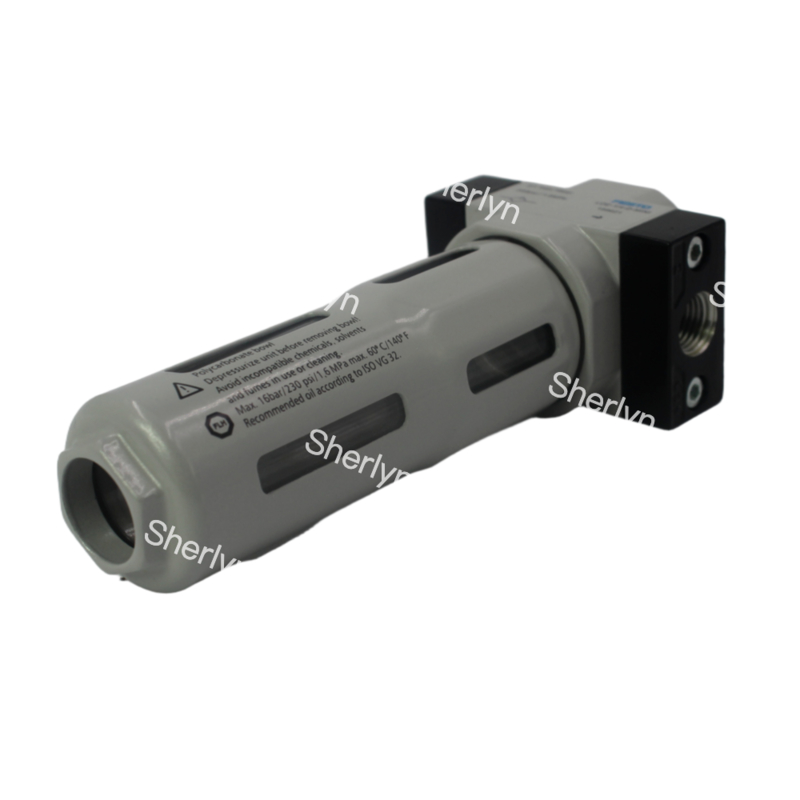

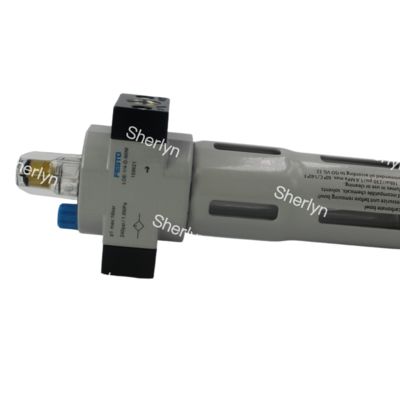

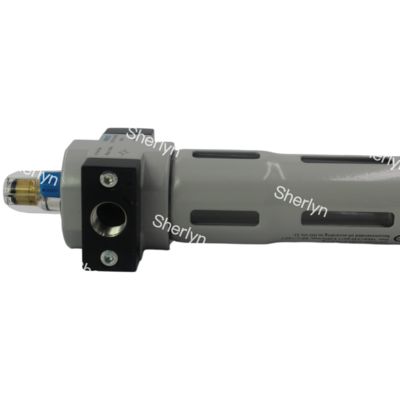

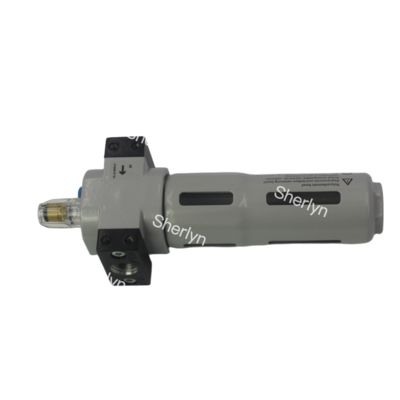

162680 LOE-3/8-D-MINI FESTO Zinc Alloy Oil Mister

Technical Data

• SizeMini
• SeriesD
• Mounting positionVertical +/- 5°
• Structural designProportional standard oil mist lubricator
• Max. oil capacity45 cm³
• Bowl guardMetal bowl guard
• Symbol00991532
• Operating pressure0 MPa ... 1.6 MPa
• Operating pressure0 bar ... 16 bar
• Operating pressure0 psi ... 232 psi

Product Description:

The design and performance of FESTO zinc alloy oil mist generator have the following outstanding features:

Sturdy structure and precision manufacturing: The housing of the oil mist device is made of die cast zinc alloy, which is sturdy and durable in structure. The filter cup is usually made of transparent polycarbonate (PC) material and equipped with a metal protective cover, which can facilitate the observation of oil level and provide good physical protection.

Proportional oil mist and precise lubrication: This oil mist device adopts a proportional oil mist design, and its core principle is to use the Venturi effect to make the amount of lubricating oil added after atomization proportional to the flow rate of compressed air. This means that it can provide precise lubrication based on the actual working conditions of the pneumatic system, avoiding insufficient or excessive lubrication.

Key performance parameters: The working pressure range of the oil mist device is usually from 0 bar to 16 bar. Taking the LOE-D-MIDI model as an example, its oil storage capacity is 110 cm³. To start the oil mist generator normally and generate oil mist, the compressed air flow rate needs to reach a minimum value. For example, the minimum fogging flow rate for the LOE-D-MIDI model is 8 L/min (other data shows 3 L/min, which may vary depending on the specific model or conditions). The installation position requirements are strict, and it must be installed vertically with a deviation range of plus or minus 5 degrees to ensure that the lubricating oil can be correctly sucked up and atomized.

Convenient and safe to use: Some models are designed with maintenance convenience in mind, allowing for easy refueling. In addition, it requires the use of specific, non-lubricated compressed air as the working medium, and requires the incoming compressed air to meet the purity standards related to ISO8573-1:2010 [7:4:4], which helps ensure stable system operation and avoid oil contamination.

Applications:

The FESTO zinc alloy oil mist generator serves a crucial purpose in the realm of industrial automation, catering to the needs of various pneumatic equipment that rely on clean and stable compressed air.

Industrial automation benefits from this equipment across a range of sectors including textiles, material transportation, printing, deep processing, and packaging. For instance, it is employed to lubricate pneumatic scissors and sewing machines in the textile industry. Similarly, it is used to lubricate pneumatic conveyor belts in material transportation systems, pneumatic printing machines, and dyeing machines in the printing sector, as well as packaging machines and packers in the packaging industry.

At its core, the primary task of the FESTO zinc alloy oil mist generator involves the precise addition of lubricating oil into the compressed air system. This lubrication is essential for various pneumatic components including cylinders, pneumatic motors (air batches), and directional valves. By minimizing friction among moving parts like motors, pistons, gears, and sliding surfaces, it facilitates smoother operation and more accurate speed control. Subsequently, this leads to reduced machinery maintenance costs.
