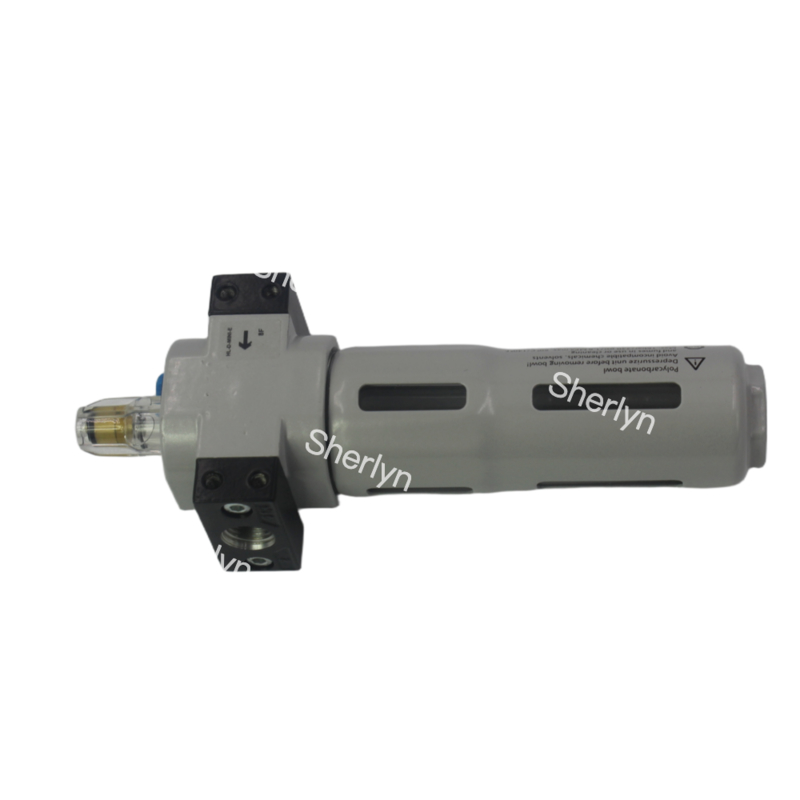

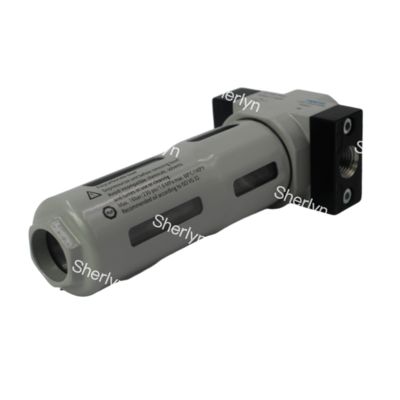

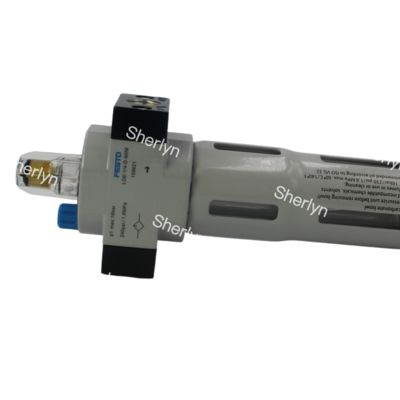

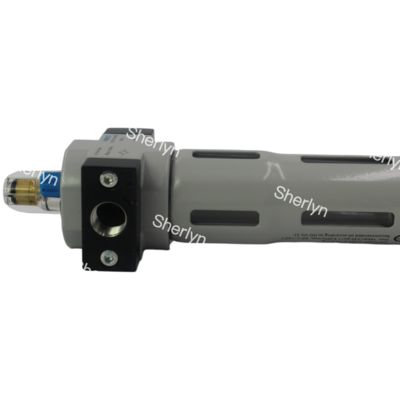

FESTO Zinc Alloy Oil Mister LOE-1/4-D-MINI 159621 Oil Mister 0.5-12bar

Product Description:

The design and performance of FESTO zinc alloy oil mist generator have the following outstanding features:

Sturdy structure and precision manufacturing: The housing of the oil mist device is made of die cast zinc alloy, which is sturdy and durable in structure. The filter cup is usually made of transparent polycarbonate (PC) material and equipped with a metal protective cover, which can facilitate the observation of oil level and provide good physical protection.

Proportional oil mist and precise lubrication: This oil mist device adopts a proportional oil mist design, and its core principle is to use the Venturi effect to make the amount of lubricating oil added after atomization proportional to the flow rate of compressed air. This means that it can provide precise lubrication based on the actual working conditions of the pneumatic system, avoiding insufficient or excessive lubrication.

Key performance parameters: The working pressure range of the oil mist device is usually from 0 bar to 16 bar. Taking the LOE-D-MIDI model as an example, its oil storage capacity is 110 cm³. To start the oil mist generator normally and generate oil mist, the compressed air flow rate needs to reach a minimum value. For example, the minimum fogging flow rate for the LOE-D-MIDI model is 8 L/min (other data shows 3 L/min, which may vary depending on the specific model or conditions). The installation position requirements are strict, and it must be installed vertically with a deviation range of plus or minus 5 degrees to ensure that the lubricating oil can be correctly sucked up and atomized.

Convenient and safe to use: Some models are designed with maintenance convenience in mind, allowing for easy refueling. In addition, it requires the use of specific, non-lubricated compressed air as the working medium, and requires the incoming compressed air to meet the purity standards related to ISO8573-1:2010 [7:4:4], which helps ensure stable system operation and avoid oil contamination.

Applications:

The FESTO zinc alloy oil mist generator is a key component in the industrial automation sector and is essential for various pneumatic equipment that rely on clean and stable compressed air.

In the realm of industrial automation, this generator finds widespread application across diverse industries including textiles, material transportation, printing, deep processing, and packaging. In the textile industry, for instance, it plays a crucial role in lubricating pneumatic scissors and sewing machines. In material transportation systems, it ensures the smooth operation of pneumatic conveyor belts. Similarly, in the printing industry, it lubricates pneumatic printing machines and dyeing machines, while in the packaging industry, it is used to lubricate packaging machines and packers.

One of the core functions of this device is its lubrication capability. It is designed to deliver precise quantities of lubricating oil into the compressed air system to lubricate a variety of pneumatic components such as cylinders, pneumatic motors (air batches), and directional valves. By reducing friction between moving parts like motors, pistons, gears, and sliding surfaces, this generator enables smoother operation and more accurate speed control. Consequently, it helps in decreasing machinery maintenance costs.

Technical Data

• SizeMini
• SeriesD
• Mounting positionVertical +/- 5°
• Structural designProportional standard oil mist lubricator
• Max. oil capacity45 cm³
• Bowl guardMetal bowl guard
• Symbol00991532
• Operating pressure0 MPa ... 1.6 MPa
• Operating pressure0 bar ... 16 bar
• Operating pressure0 psi ... 232 psi

Support and Services:

The Product Technical Support and Services for the Pneumatic Filter Regulator Lubricator include:

- Installation assistance for proper setup and configuration.

- Troubleshooting guidance for any operational issues.

- Maintenance recommendations to ensure optimal performance.

- Product training sessions for users and maintenance personnel.

- Warranty coverage for specified components and services.
