Product Description:

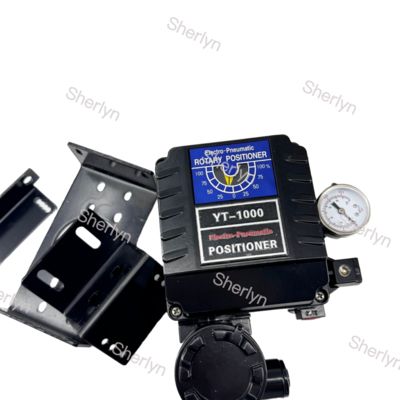

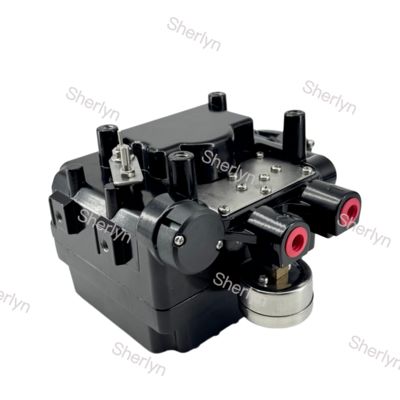

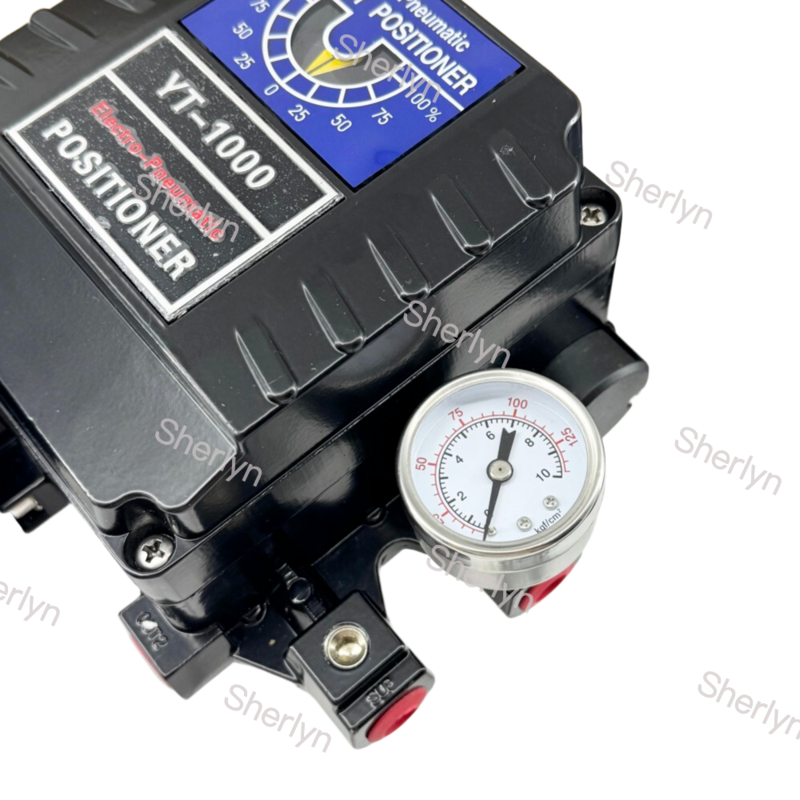

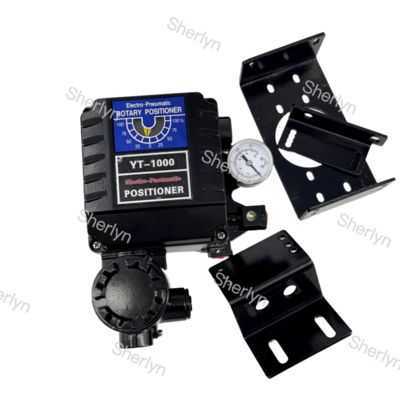

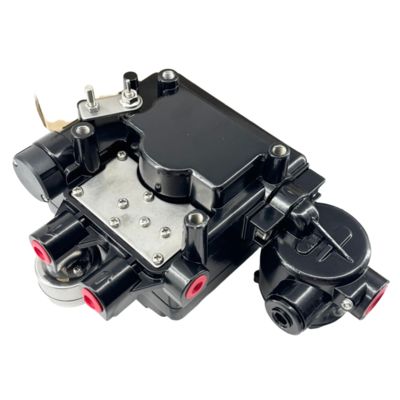

High Precision Control: The core advantage of YTC pneumatic control valve lies in its precise control capability. It is usually used in conjunction with YTC valve positioners (such as YT-1000L, YT-1200R series), which can accurately receive 4-20mA current signals or 0.2-1bar (about 3-15psi) air pressure signals, and drive the valve to the precise opening to achieve precise flow regulation. Its locator has good linearity, sensitivity, and repeatability, ensuring stable and reliable control.
Durable Structure and Wide Applicability: Valve bodies are often made of materials such as WCB, WC9, CF8 (304 stainless steel), CF8M (316 stainless steel), etc., which have good corrosion resistance. Its V-shaped valve core design has a large rated flow coefficient, adjustable high ratio, and good sealing effect. Special designs such as pipe clamp valves utilize elastic valve sleeves and clamping mechanisms to achieve bi-directional zero leakage closure, especially suitable for abrasive, corrosive slurries, and powder particle media.
Flexible Configuration and Conversion: YTC's valve positioner design is flexible, and it is usually convenient to convert between forward and reverse acting, single acting and double acting modes. Some models can achieve split range control within 1/2 range without the need to replace parts, increasing the flexibility of use.
Safety, Reliability, and Fault Protection: Some models are equipped with air lock valves (such as YT-400SN3). When the main air source pressure drops below the set pressure due to power outage, leakage, or other abnormalities, it can automatically cut off the air path from the locator to the actuator, maintain the valve position opening, and achieve fault safety protection.
Applications:
Petrochemical and Power Industries
In these process industries, YTC pneumatic control valves are commonly used for precise process pressure, flow, and temperature control of water, steam, air, and various chemical fluids.
Environmental Protection and Light Industry
In the fields of environmental protection and light industry, YTC pneumatic regulating valves can meet the regulation needs in production processes in industries such as environmental protection, light industry, papermaking, chemical industry, and textile.
Food and Pharmaceutical Industry
In places with high hygiene requirements, products such as regulating butterfly valves are used.
Mining, Metallurgy, and Building Materials Industries
In situations where there is a large amount of abrasive and corrosive slurry and powder particle materials transported, YTC pipe clamp valves are an ideal choice due to their wear resistance and reliable sealing characteristics.
Support and Services:
The Product Technical Support and Services for the Pneumatic Solenoid Valve include:
- Installation guidance and support
- Troubleshooting assistance
- Maintenance tips and recommendations
- Repair and replacement services
- Warranty information
- Product training and education
Packing and Shipping:
Product Packaging:
The Pneumatic Solenoid Valve is carefully packaged in a sturdy box to ensure safe transportation. The valve is wrapped in protective materials to prevent any damage during shipping.
Shipping:
We offer fast and reliable shipping services for the Pneumatic Solenoid Valve. Orders are processed quickly and shipped out within 1-2 business days. Customers can choose their preferred shipping method at checkout, including standard or expedited delivery options.
